3. Installation space
3-1. Models: AOHG36KRTA, AOHG45KRTA, and AOHG54KRTA
¢
Space requirement
Provide sufficient installation space for product safety.

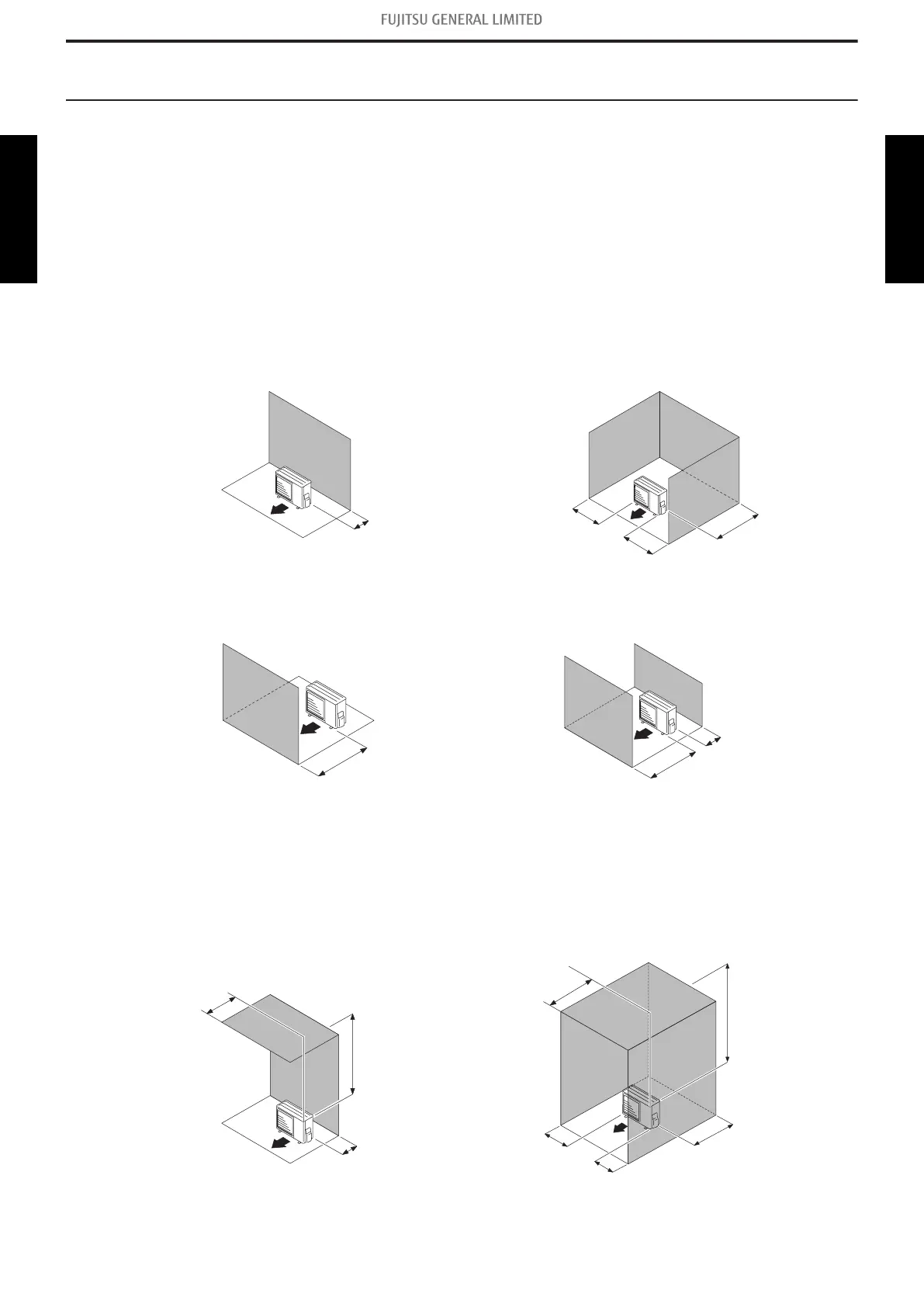

Single outdoor unit installation
• When the upper space is open:
Unit: mm
When there are obstacles at the rear only. When there are obstacles at the rear and
sides.
250 or more
100 or more
100 or more
When there are obstacles at the front only. When there are obstacles at the front and
rear.
• When there is an obstruction in the upper space:
Unit: mm
When there are obstacles at the rear
and above.
When there are obstacles at the rear, sides, and
above.
300 or more
Max. 500
1,000 or more
1,000 or more
200 or more
250 or more
500 or more
Max. 500
- 48 -
3-1. Models: AOHG36KRTA, AOHG45KRTA, and AOHG54KRTA 3. Installation space
OUTDOOR UNIT
AOHG36-54KRTA
OUTDOOR UNIT
AOHG36-54KRTA
