Getting started
Connecting the device
Please observe the safety information in "Important notes", Page 7.
CE conformance and optimum picture quality are guaranteed only if
you use the data cables supplied.
► Switch off the monitor and the computer.
► Disconnect the power plug
from the computer.

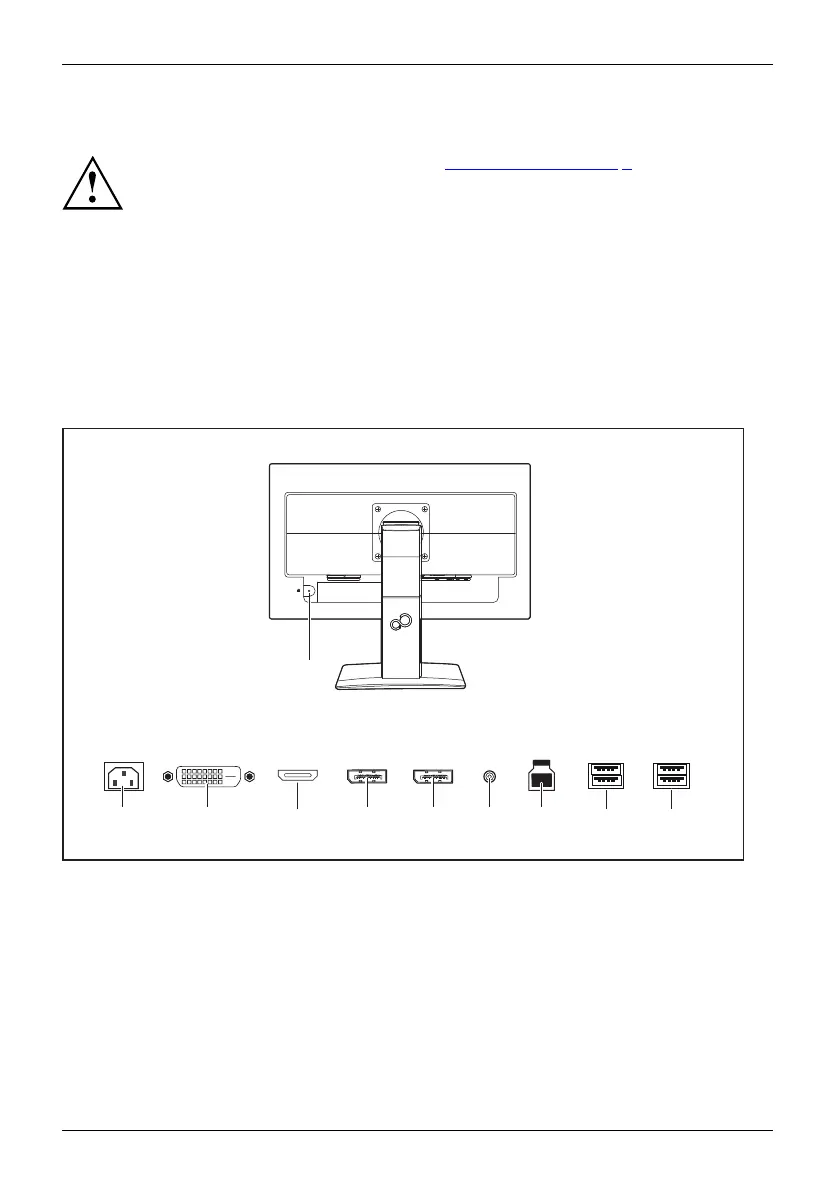

Connecting cables to the monitor
The data cable supplied
has two 20-pin DP connectors for connection to
the monitor and to the co
mputer.
Information on the com
puter connections and interfaces is contained in the
operating manual for
the computer.
1
2
76 8
5
3
4
9
10
1=Securi
ty slot for "Security Lock"
2 = Power connector
3=DVI-D
socket (DVI)
4=HDMIsocket
5 = Displ
ayport IN socket
6 = Displa
yport OUT socket
7 = AUDIO OUT socket
8=USB3.
0 (Upstream)
9 = USB 3.0 (Downstream), double socket
10 = USB 3.
0 (Downstream), double socket
► Select the data cable which is suitable for your computer.
16 Fujitsu
