RX2510 M2 Operating Manual 45
5.3.1 Connecting the monitor
Ê Plug the data cable for the monitor into the video connector on the server
(see figure 3 on page 45).
V CAUTION
The height of VGA cable connectors can vary. Please make sure that the
VGA connector cables do not interfere with the server below.
Ê Connect the insulated connector on the monitor power cable to a grounded
outlet in the rack's socket strip (see also the technical manual for the rack).
The connectors for external devices are on the front and rear of the server. The
additional connectors available on your server depend on the expansion cards
installed. For further information refer to the Upgrade and Maintenance Manual
of your server.
The standard connectors are marked with symbols, and some are color-coded:

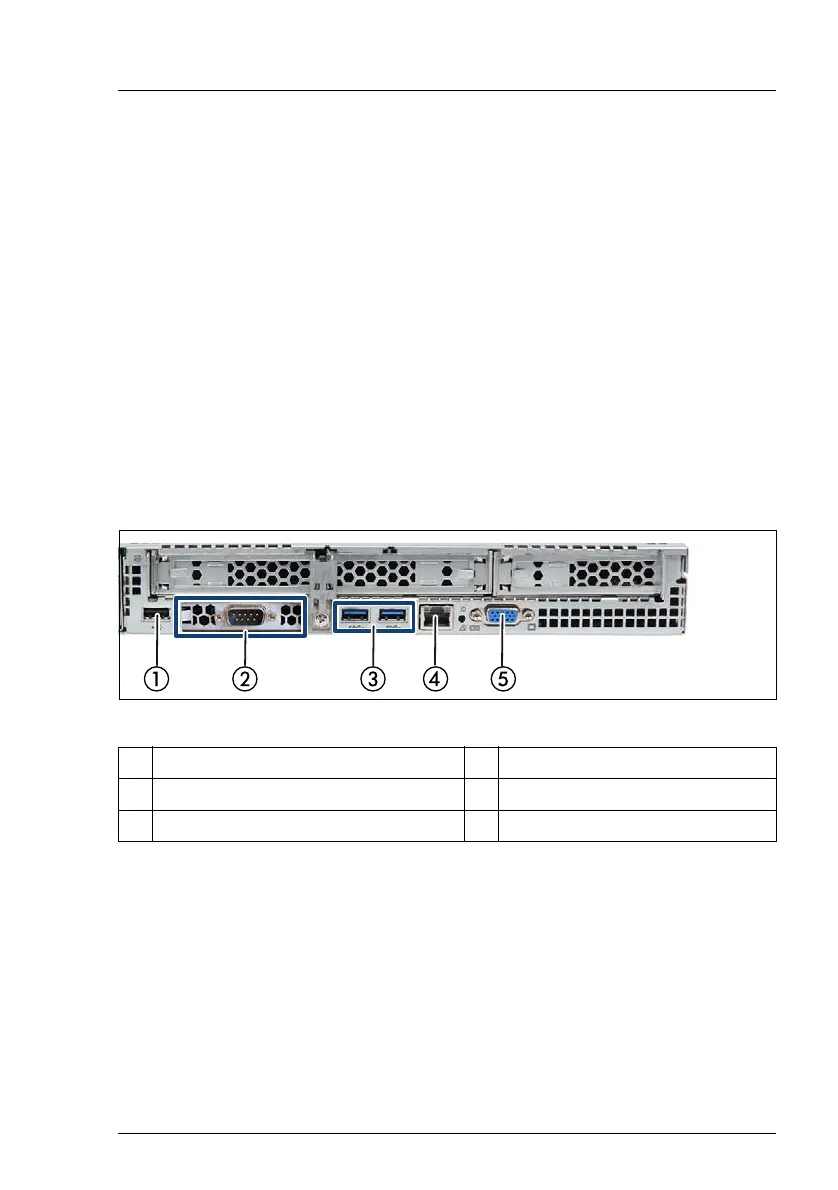

Figure 3: Connection panel on the rear
I Some of the devices that can be connected may require the installation
and setting up of special software (e.g. drivers) (see the documentation
for the connected device).
Ê Connect the desired devices to the server.
Connecting the keyboard, mouse and monitor
Ê Connect the keyboard and mouse to the USB connectors of the server.
1 1 x USB 2.0 connector 4 Management LAN connector
2 Serial interface (optional) 5 Video connector (blue)
3 2 x USB 3.0 connectors 6
