TX1330 M2
Operating Manual 65
Starting up and operation
6.2.1.4 Indicators on the drives
Optical drive activity indicator
Lights up green when the storage medium is being accessed.
Hard disk drive indicators

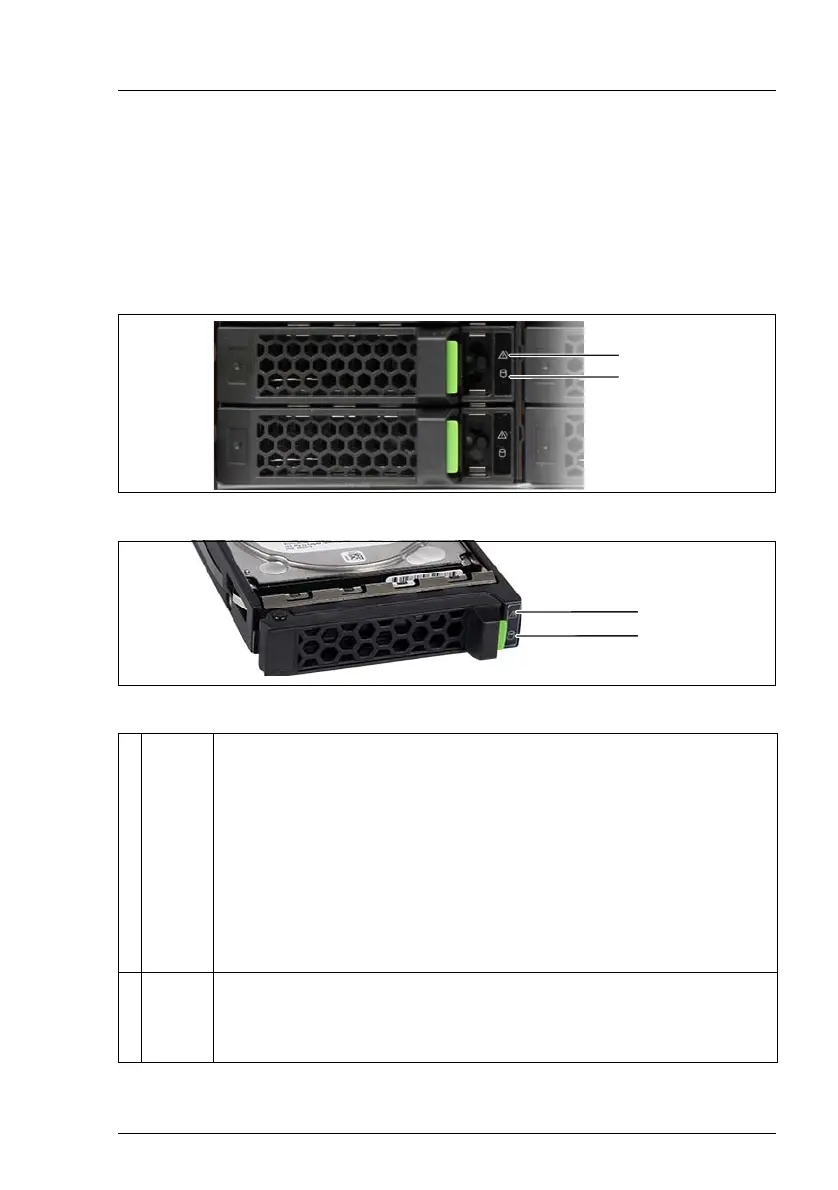

Figure 9: Indicators on the 3.5 inch HDD modules
Figure 10: Indicators on the 2.5 inch HDD modules
1LED
orange
HDD FAULT (orange)
(in conjunction with a RAID controller)
– Does not light: no HDD error
– Lights up: HDD Faulty or Rebuild Stopped (drive
defective/needs replacing, a rebuild process was stopped or
the HDD module is not correctly inserted)
– Slow flashing: HDD Rebuild (the data is being restored after
changing a drive)
– Fast flashing: HDD Identify
2LED
green
HDD BUSY
– Lights up: HDD in active phase
– Does not light: HDD inactive (drive inactive)
햳
햲
햳
햲
