1
INSTALLATION PROCEDURE
Install the air conditioner as follows:
INDOOR UNIT INSTALLATION
WARNING
● Install the air conditioner in a location which can with-
stand a load do at least five times the weight of the
main unit and which will not amplify sound or vibra-
tion. If the installation location is not strong enough,
the indoor unit may fall and cause injuries.
● If the job is done with the panel frame only, there is a
risk that the unit will come loose. Please take care.

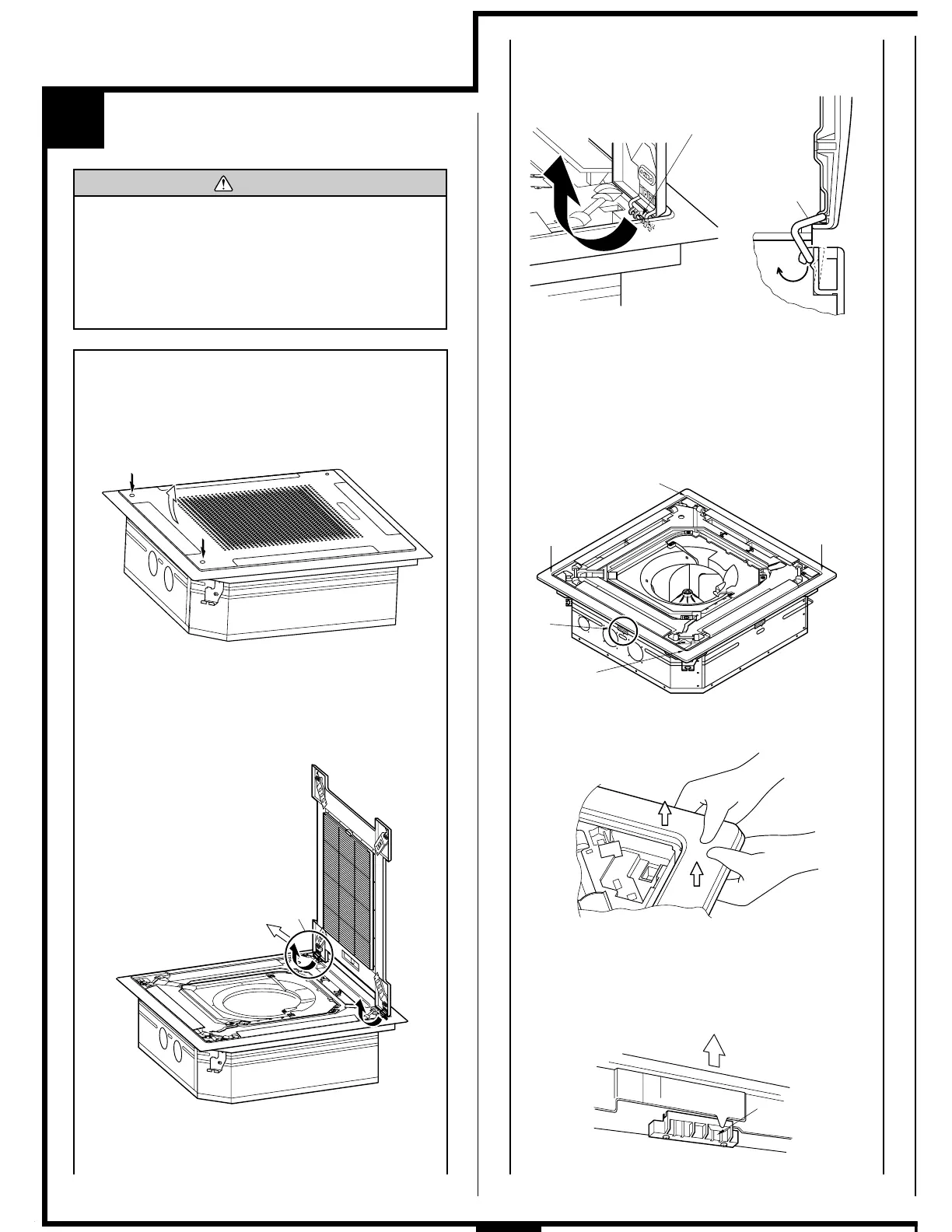

REMOVING THE INTAKE GRILLE
(1) Push the intake grille pushbuttons (two places).
(2) Open the intake grille.
OPEN
PUSH
(3) Remove the grille hinge wire.
A
• Pull up while pressing the B section.
Part A detail view Part A section view
B
(4) Remove the intake grille.
REMOVING THE PANEL FRAME
• Pull up the corner sections (A) of the panel frame as shown in
figure (4 locations).
Part A detail view
Grille hinge wire
A
A
A
A
B
• Pull up in the direction of the arrow while holding down the C
section of figure (4 locations).
Part B detail view
C
To Next Page
