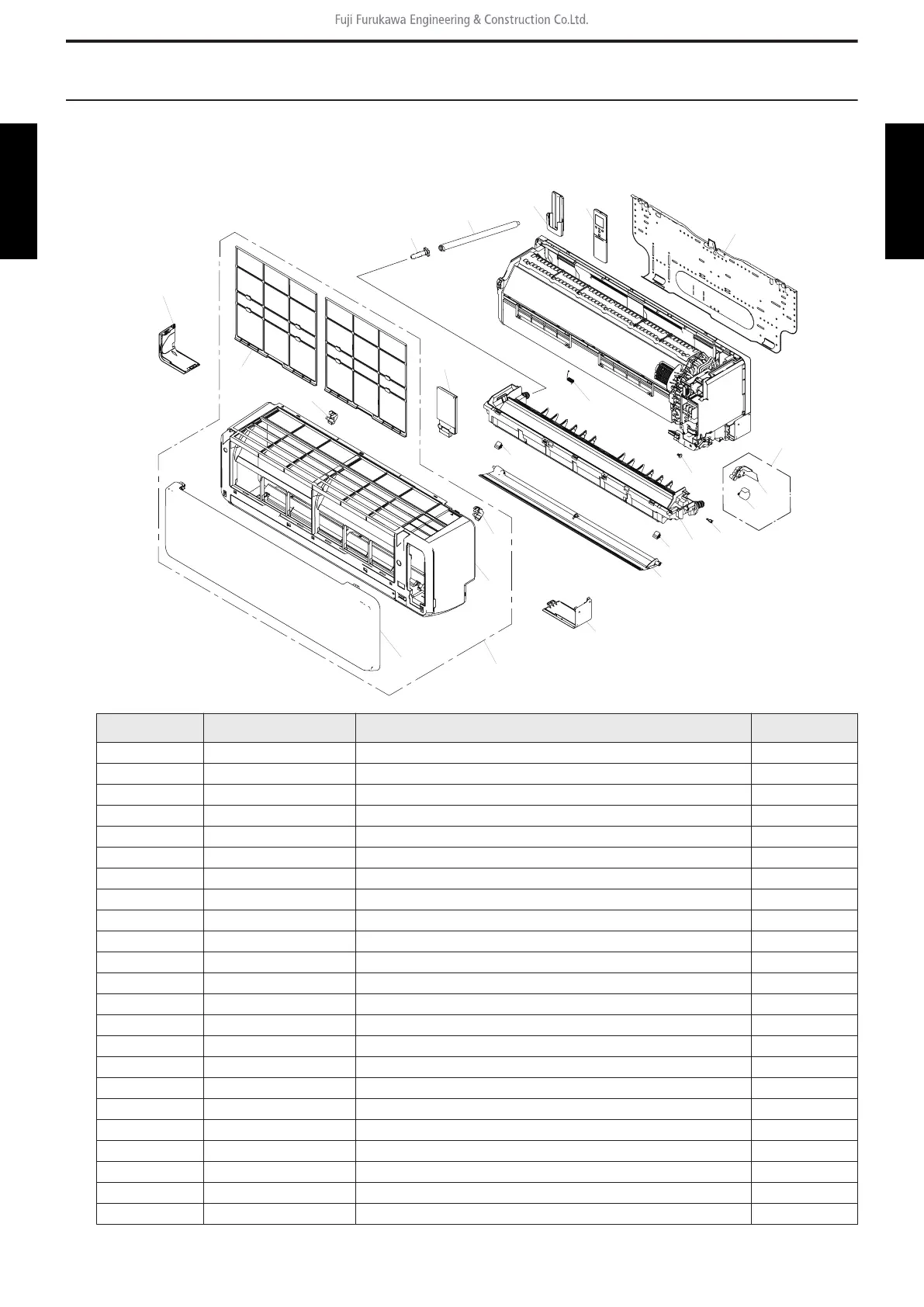

2. Indoor unit parts list
2-1. Models: RSG09KMCDN, RSG12KMCDN, and RSG14KMCDN
¢ Exterior parts
18
1
4
a
5
6
8
8
9
10
13
16
2
17
15
12
3
14
19
20
21
b
7
11
Item no. Part no. Part name Service part
1 9387480047 Bracket panel ♦
2 9333951003 Louver spring P ♦
3 9333608006 Bush ♦
4 9387714043 Step motor holder assy ♦
5 9901011016 Step motor ♦
6 9332861006 Shaft cover ♦
7 9387590104 Drain pan total assy ♦
8 9387476002 Screw cap ♦
9 9387479041 U/D louver assy ♦
10 9387478006 Under cover R ♦
11 9387596953 Front panel total assy ♦
12 9333704005 Grille clamper R ♦
13 9387756203 Intake grille assy ♦
14 9333719009 Grille clamper L ♦
15 9387473018 Air filter ♦
16 9387477009 Under cover L ♦
17 9387597066 Wire cover assy ♦
18 9316177017 Drain cap ♦
19 9316904002 Drain hose assy ♦
20 9318912005 Remote controller holder ♦
21 9383712036 Remote controller ♦
a — Step motor holder —
b — Front panel —
2-1. Models: RSG09KMCDN, RSG12KMCDN, and RSG14KMCDN - (02-2) - 2. Indoor unit parts list
