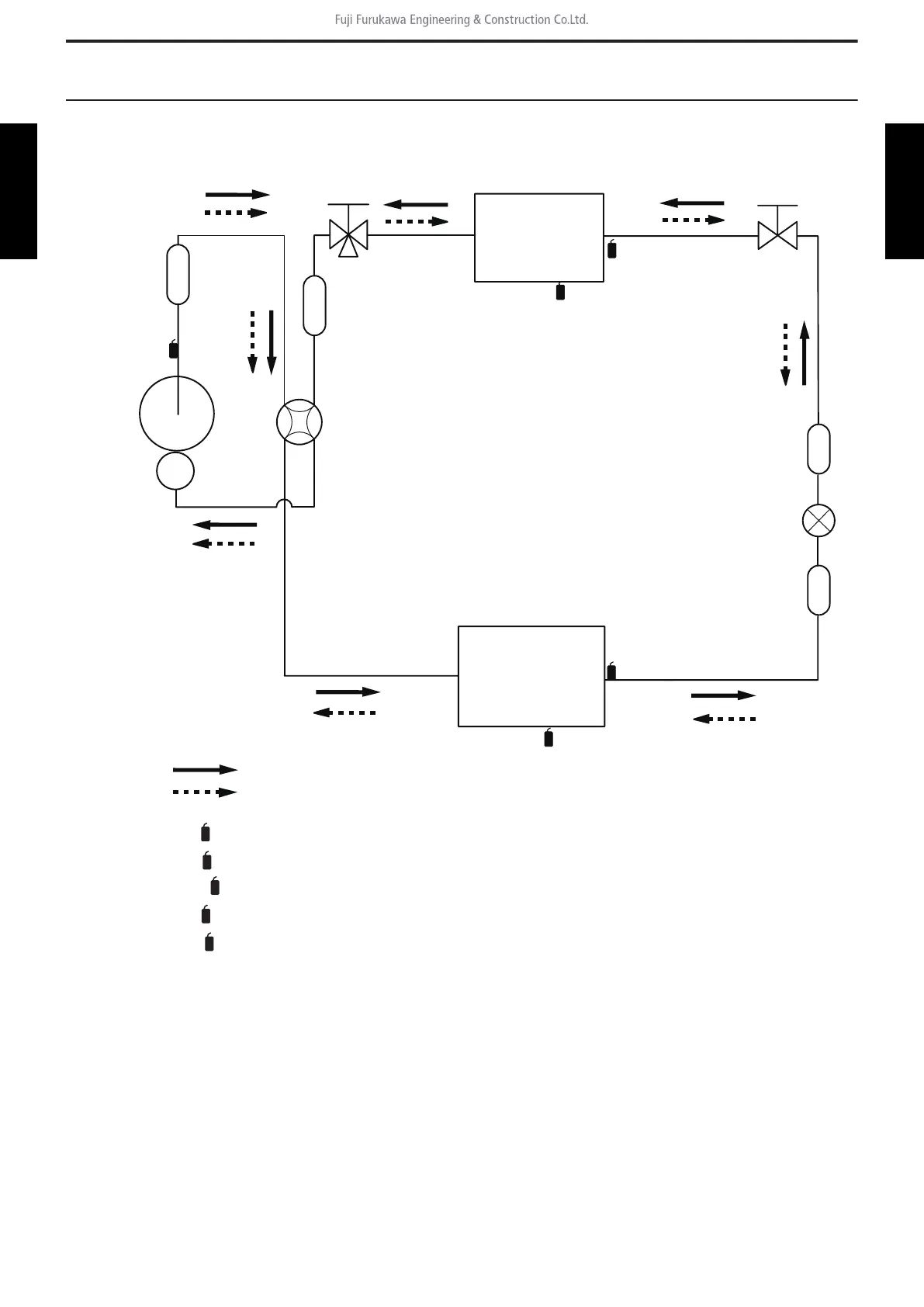

5. Refrigerant system diagrams
5-1. Models: ROG09KMCDN and ROG12KMCDN
2-way
valve
Strainer
Strainer
3-way
valve
Muffler
4-way valve
Expansion valve
Heat exchanger
( INDOOR )
Heat exchanger
( OUTDOOR )
Compressor
Cooling
Heating
Th
D
Th
R
Th
PI
Th
HO
Th
O
Th
R
Th
PI
Th
D
Th
O
Th
HO
:Thermistor (Room temp.)
:Thermistor (Pipe temp.)
:Thermistor (Discharge temp.)
:Thermistor (Outdoor temp.)
:Thermistor (Heat exchanger out temp.)
Muffler
5-1. Models: ROG09KMCDN and ROG12KMCDN - (02-17) - 5. Refrigerant system diagrams
