1.2 Names and Functions of Parts
When you unpack the ScanSnap package, make sure that all parts are included.
Refer to the package contents list included in the ScanSnap package box.

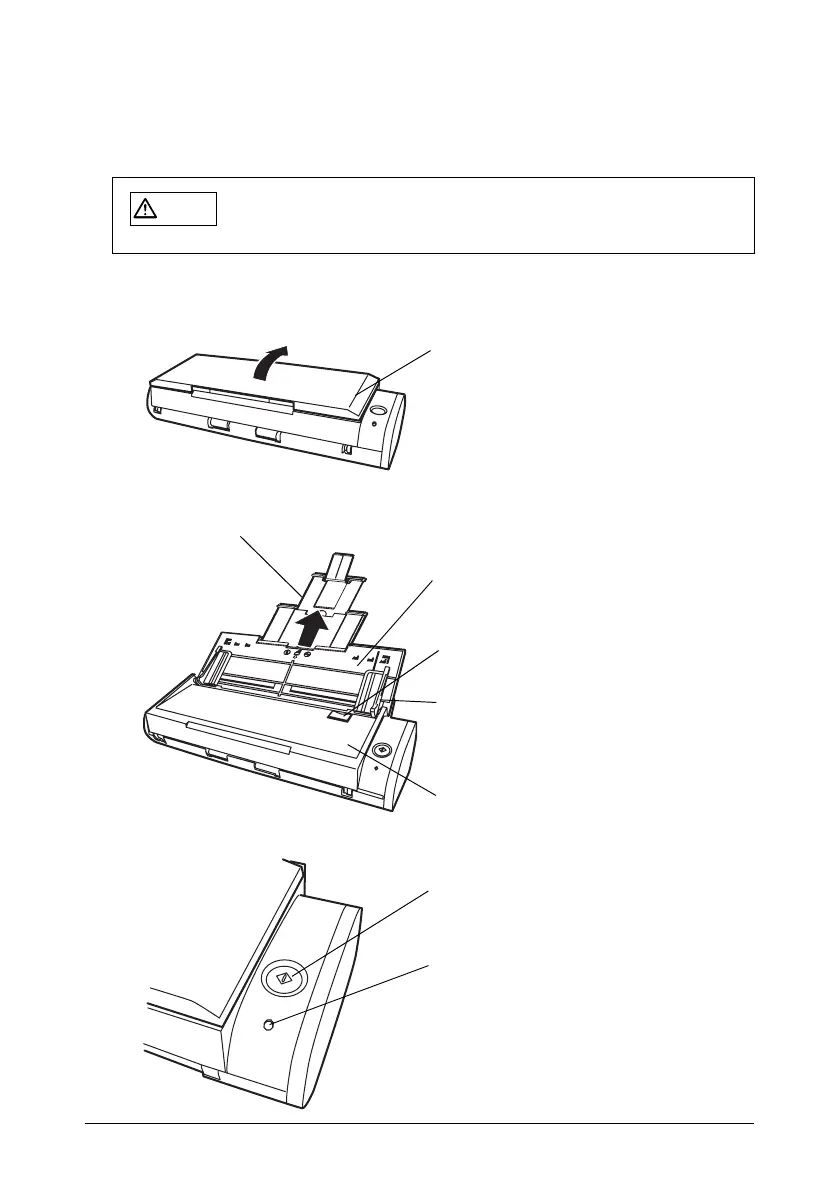

■ Front View
CAUTION
To avoid danger of suffocation, keep the packaging materials away
from small children’s reach and prevent them from putting the
materials in their mouths or putting them on their heads.
Paper chute
Open this cover when using the
ScanSnap.
⇒ Opening the cover turns ON the
ScanSnap.
Paper chute
Open it and load the documents onto this
part when scanning documents.
Cover open lever
Pull this lever to open the ADF cover.
Side guide
Adjust these guides to the documents
width for preventing skewed loading.
Paper chute guide
Pull out this guide to support the documents when necessary.
ADF cover
(ADF: Automatic Document Feeder)
[SCAN] button
Starts scanning.
Power Indicator
Indicates the ScanSnap status of the
power supply to the ScanSnap.
White (Solid): Ready
White (Blinking): Scanning/Standing by
Orange: Error
Light off: Power off
