1. Preparation
This chapter describes necessary preparations before using
ScanSnap.
Do not connect the scanner to your PC
before installing “ScanSnap Manager”.
If the scanner is connected before installing
ScanSnap Manager, it will not operate
correctly.
Refer to Chapter 2 for the installation of
ScanSnap Manager.
1.1. Checking the Contents of the
Package
When you unpack the scanner package, make sure that all
parts are included.
Refer to the package contents list included the scanner
package box.

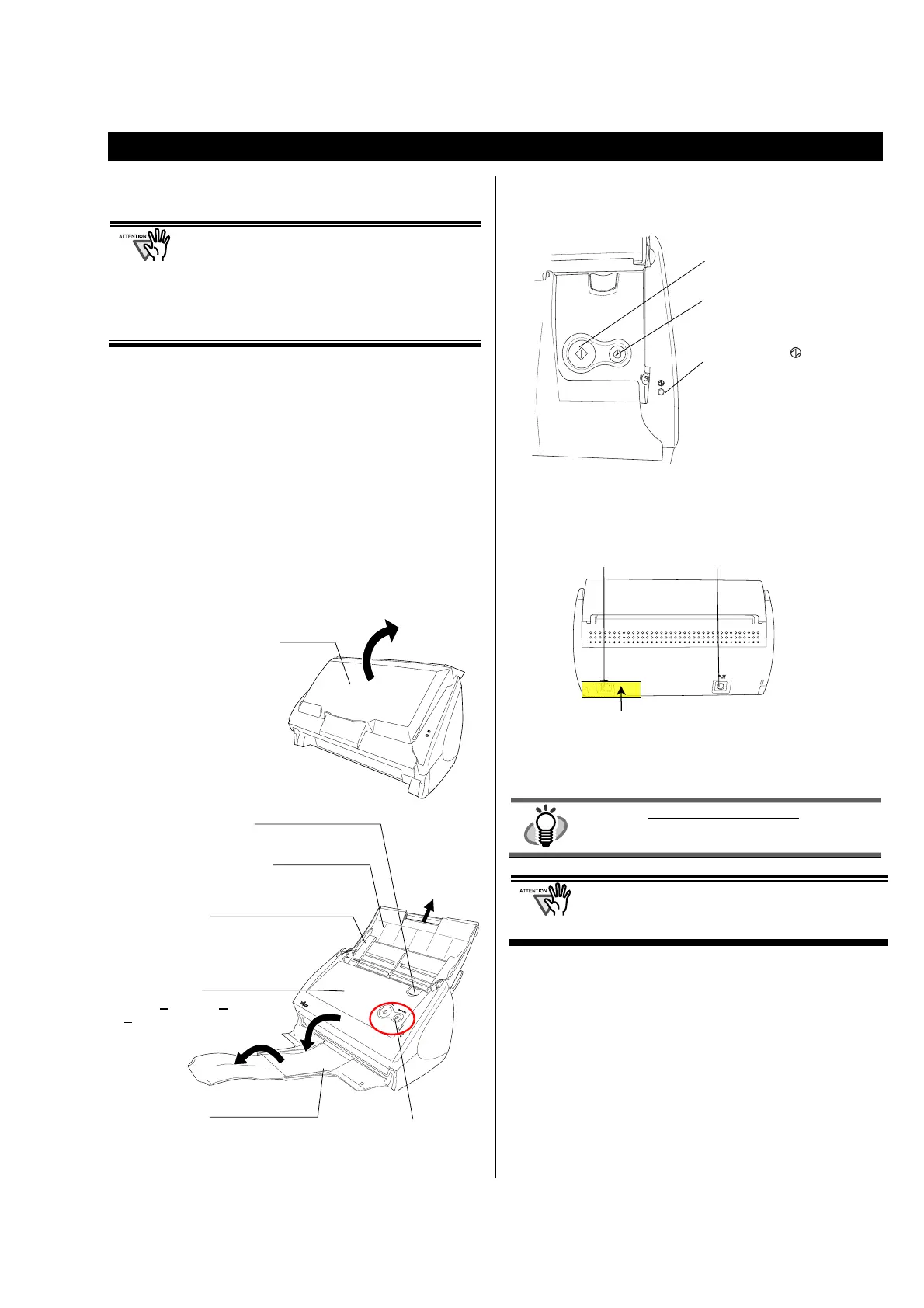

1.2. Names and Functions of Parts
This section describes the names and functions of parts.
 Front Side
 Buttons
 Rear Side
HINT
For the Document Specification, refer to the
“ScanSnap S500 Operator’s Guide” stored
in ScanSnap Setup CD-ROM.
The scanner is turned on/off automatically, when
you open/close the Paper chute cover.
To turn off the scanner when the cover is opened,
press the [POWER] button.
Cover open lever
Pull this lever to open the ADF cover.
Paper chute cover
Open this cover and load the documents
onto this part when scanning documents.
Side guide
Adjust these guides to the documents
width for preventing skewed
ADF cover
(ADF: A
utomatic Document
Feeder)
Stacker
For using this part, pull it out
as shown in the figure.
→ Documents are ejected from the ADF onto this tray.
Buttons
Paper chute cover
Open this cover when using
the scanner.
→ Opening the cover turns the
scanner ON.
Seal: After installing ScanSnap Manager onto
your computer, remove this seal to connect the
scanner to the PC.
AC adapter connector
USB connector
[SCAN] button
Starts scanning.
[POWER] button
Turns on/off the power supply.
Power lamp
Indicates the scanner status.
Blue :Ready
Blue (Blinking) :Scanning
Orange :Error
Light off :Power off
SCAN
POWER

Fujitsu ScanSnap S500 Specifications

General

Film scanning	No
Color scanning	Yes
Input color depth	- bit
Maximum scan size	216 x 356 mm
Scanner type	Sheet-fed scanner
Sensor type	CCD
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Auto document feeder (ADF) input capacity	50 sheets
USB version	2.0
Standard interfaces	USB 2.0
Minimum system requirements	Windows 2000/ XP/ Vista
Scan media weight	52 - 127 g/m²
Power requirements	AC 100V - 240V, 50 / 60 Hz
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Certification	RoHS

Weight and Dimensions

Weight	2700 g
