4. INSTALLATION
4-6

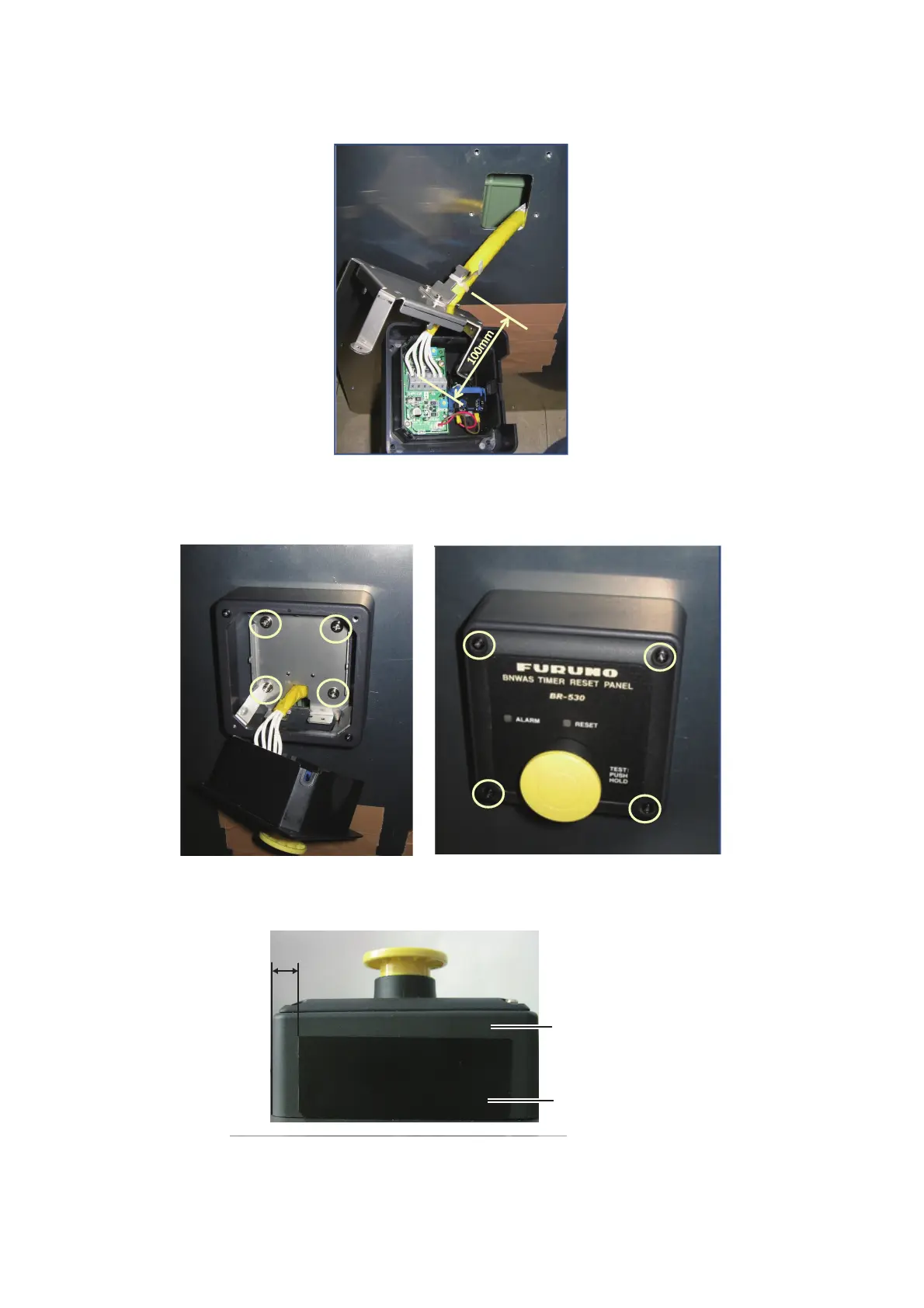

4. Fasten the cable to the Clamp with a cable tie (local supply). As shown in the fig-
ure below, make the distance between the terminal and the cable tie 100 mm.
5. Fasten the Mount Base to the mounting location with four self-tapping screws
(supplied). Fasten the Chassis to the Mount Case with four binding screws (sup-
plied).
6. Seal the bottom entry with the blind sheet supplied.
Self-tapping screws Binding screws
Mount case
Blind sheet
15±5mm
