2-13
Memories & Memory Frame Priority
Memory capacity is 2048x2048 dots, radar display area is 1280x1024 dots, and radius of echo
display area is 360 dots.
FR-2115-SME-28
360 dots
1024 dots
1280 dots
2048 dots
2048 dots
+
+Cursor
Characters
Menu
Data
Mask
Cursor Gyro
U1 and U3 (4 frames)
no frame
ARPA
Each 1/4 of U4,U6,U8 and U9 (2 frames)
RP
no frame (data from RP)
Radar mark
Radar map
Each 3/4 of U4 and U6 (3 frames)
Each 3/4 of U8 and U9 (3 frames)
Radar echo
Echo trail
Echo in
alarm area
U24,U26,U28,U29,U30 (5 frames)
Highest priority

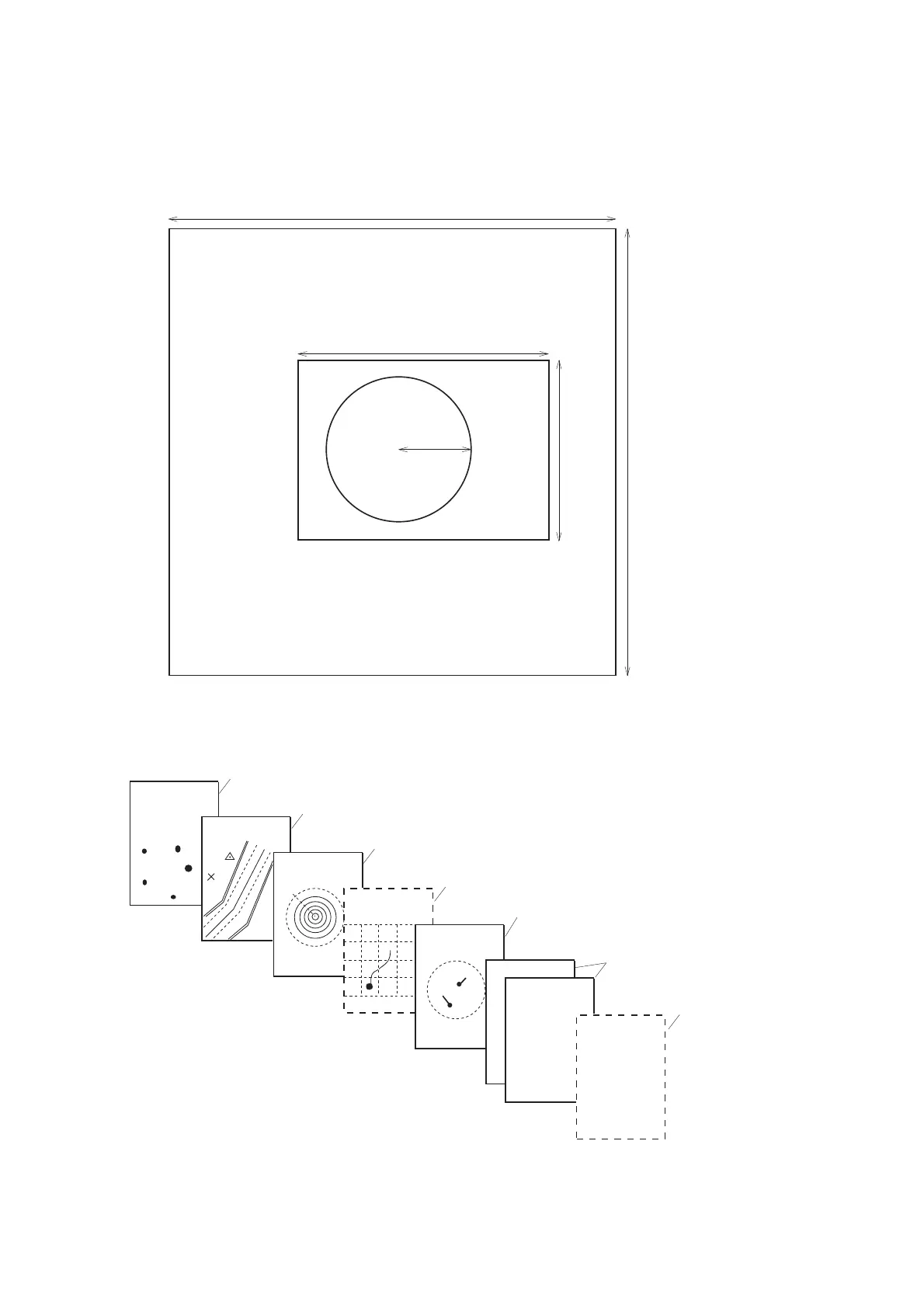

Figure 2.9 Memory Capacity and Display Area
Figure 2.10 Priority of Each Frame
