1. OPERATIONAL OVERVIEW
1-37

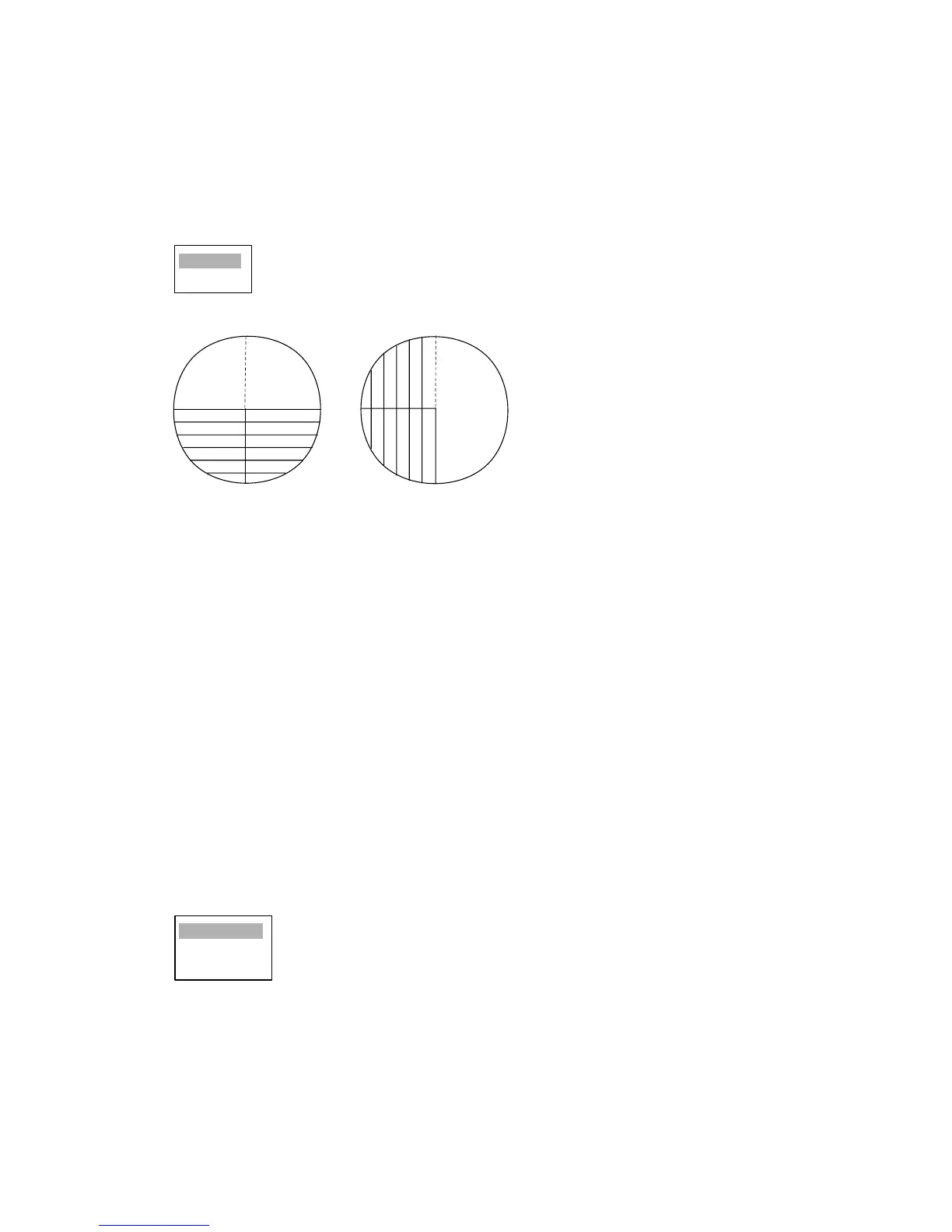

1.26.3 Parallel index lines mode
You may choose the index line orientation against the No. 2 EBL (dashed line) for parallel or ver-
tical as follows:
1. Press the MENU key to open the menu.
2. Choose Mark and press the ENTER key.
3. Choose Parallel Line Mode and press the ENTER key.
4. Choose Parallel or Vertical as appropriate and press the ENTER key.
5. Press the MENU key to close the menu.
1.27 Outputting Target Position, Inscribing Origin
Mark
The TLL key functions to both output cursor position to external equipment such as a navigation
plotter (where it is marked on its screen) and inscribe an asterisk (*) at cursor position on the radar.
Twenty marks may be inscribed on the screen. When you enter a 21st mark, the eldest mark is
erased to make room for the latest. To erase a mark, place the cursor on it and press the
CANCEL/HL OFF key.
1.27.1 TLL key mode
The TLL key can be preset to output target position, inscribe the origin mark or do both.
1. Press the MENU key to open the menu.
2. Choose Mark and press the ENTER key.
3. Choose TLL Key Mode and press the ENTER key.
4. Choose TLL Output, Origin Mark or Both as appropriate and press the ENTER key.
TLL Output: Cursor Lat/Lon output to plotter (heading bearing signal and position data
required)
Origin Mark: Origin mark is inscribed at cursor position.
Both: Origin mark is entered and that position is output to a navigator.
5. Press the MENU key to close the menu.
Parallel
Vertical
Vertical
Parallel
TLL Output
Origin Mark
Both
