Gardena R40Li Operator‘s User Manual

English - 15
3. INSTALLATION
3. Installation
This chapter describes how you install the GARDENA
R40Li. Before starting the installation read the previous
chapter 2. Presentation.
Read also through this entire chapter before beginning
the installation. How the installation is made also
affects how well R40Li will work. It is therefore
important to plan the installation carefully.
Planning is simplified if you make a sketch of the
working area, including all obstacles. This makes it
easier to see the ideal positions for the charging
station, the boundary wire and the guide wire. Draw on
the sketch where the boundary and guide wires should
be routed.
In chapter 7. Garden example , there are examples of
installations.
Visit also www.gardena.com/int for further descriptions
and tips regarding installation.
Carry out the installation in the following steps:
3.1 Preparations.
3.2 Installation of the charging station.
3.3 Charging the battery.
3.4 Installation of the boundary wire.
3.5 Connecting the boundary wire.
3.6 Installation of the guide wire.
3.7 Checking the loop.
3.8 First start-up and calibration
3.9 Test docking with the charging station
The charging station and boundary and guide wires
must be connected to be able to carry out a complete
start-up of the R40Li.

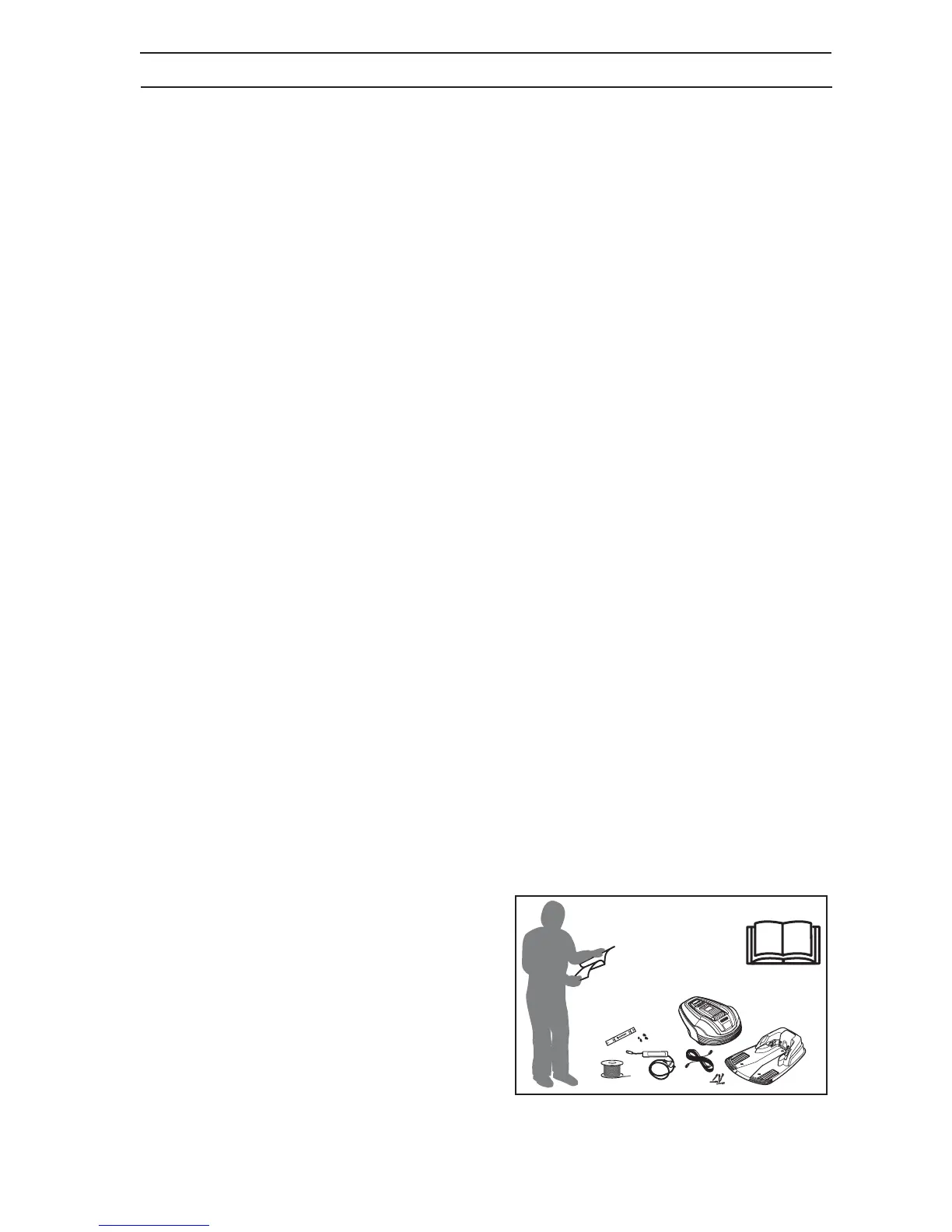

3.1 Preparations
1. If the lawn in the proposed working area is taller
than 10 cm, mow it using a normal lawn mower.
Then collect the clippings.
2. Read carefully through all the steps before the
installation.
3. Check that all parts for the installation are
included:
The numbers in brackets refer to the detail
diagram 2.1 What’s what? .
• Operator’s Manual (24)
• R40Li
• Charging station (6)
• Loop wire for the boundary wire and guide wire (16)
