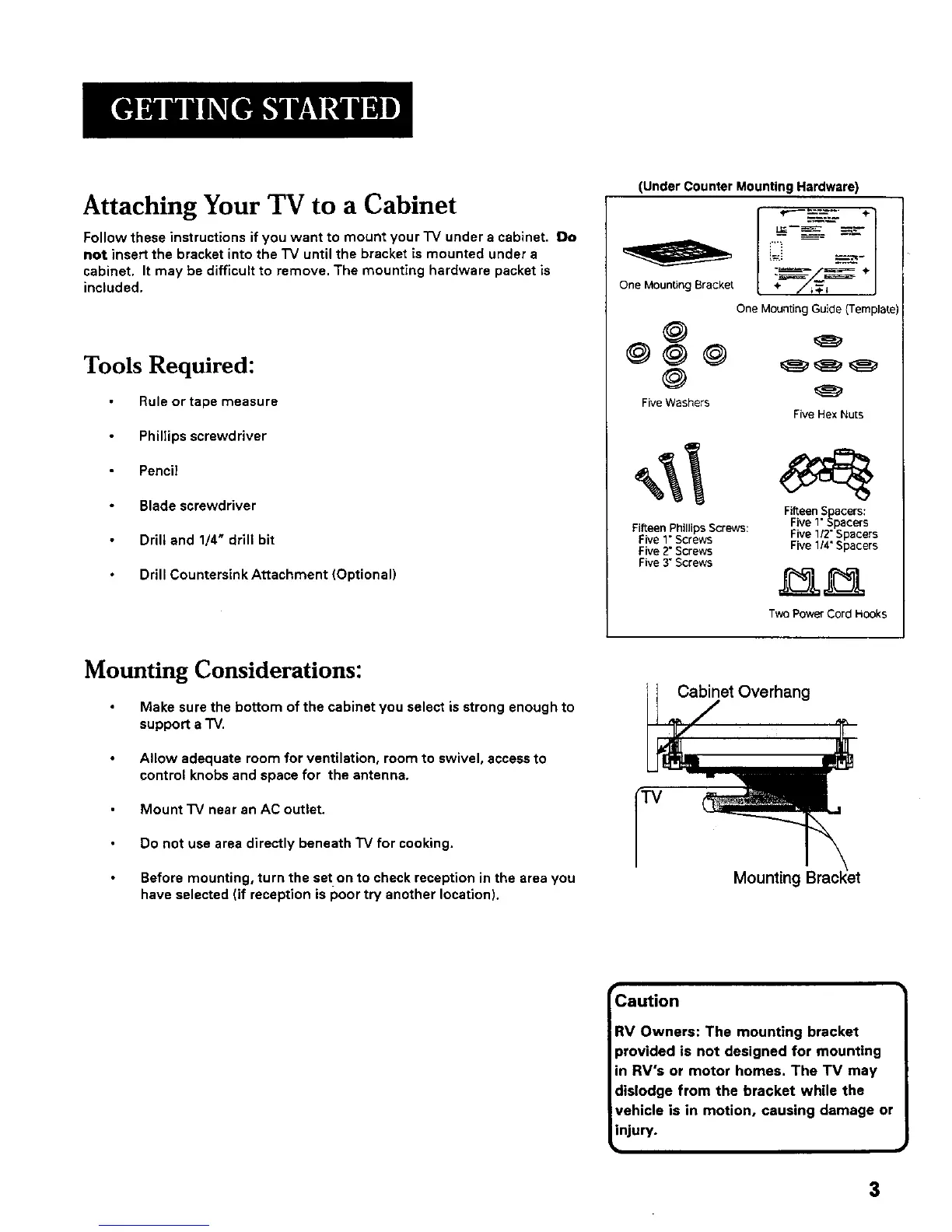

Attaching Your TV to a Cabinet
Follow these instructions if you want to mount your'IV under a cabinet. Do
not insert the bracket into the "IV until the bracket is mounted under a
cabinet. It may be difficult to remove. The mounting hardware packet is
included.
Tools Required:
Rule or tape measure
Phillips screwdriver
Pencil
Blade screwdriver
Drill and 1/4" drill bit
Drill Countersink Attachment (Optional)
(Under Counter Mounting Hardware)
OneMountingBracket ÷
OneMountingGuide(Template)
FiveHexNuts
Five Washers
FifteenPhillips Screws:
Five1" Screws
Five2"Screws
Five3"Screws
Fifteen S acers:
Five1"_pacers
Five 112"Spacers
Five114"Spacers
Two Power Cord Hooks
Mounting Considerations:
Make sure the bottom of the cabinet you select is strong enough to
support a "iV.
Allow adequate room for ventilation, room to swivel, access to
control knobs and space for the antenna.
Mount "IV near an AC outlet.
Do not use area directly beneath TV for cooking.
Before mounting, turn the set on to check reception in the area you
have selected (if reception is poor try another location).
Cabinet Overhang
Mounting
Caution
RV Owners: The mounting bracket
provided is not designed for mounting
in RV's or motor homes. The TV may
dislodge from the bracket while the
vehicle is in motion, causing damage or
injury.
3
