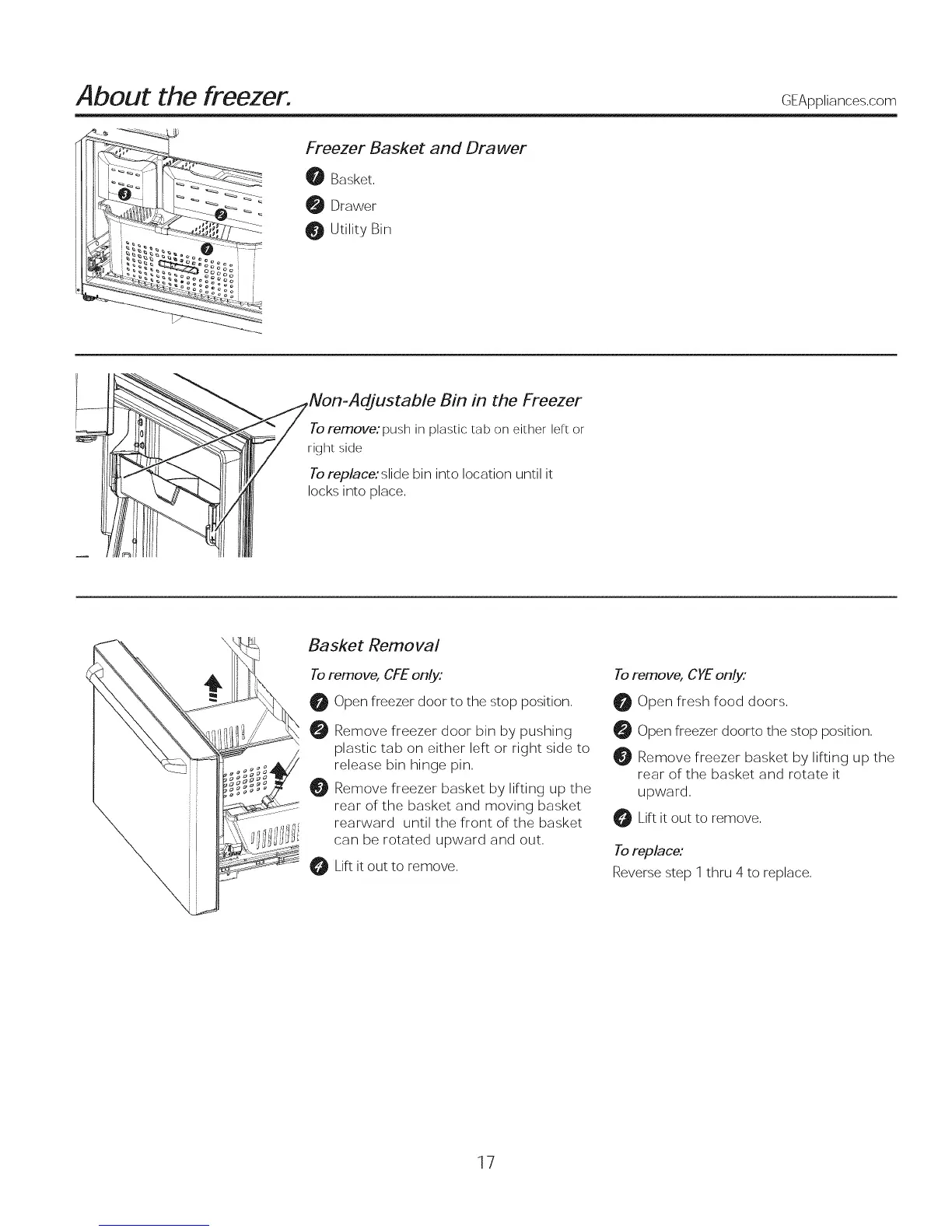

About the freezer. GEAppliancescom
Freezer Basket and Drawer
0 Basket,
Drawer
Utility Bin
Non-Adjustable Bin in the Freezer
To remove: push in plastic tab on either left or
right side
To replace: slide bin into location until it
locks into place,
Basket Removal
To remove, CFE only:
Open freezer door to the stop position,
Remove freezer door bin by pushing
plastic tab on either left or right side to
release bin hinge pin,
Remove freezer basket by lifting up the
rear of the basket and moving basket
rearward until the front of the basket
can be rotated upward and out,
Lift it out to remove,
To remove, CYEonly:
Open fresh food doors,
Open freezer doorto the stop position,
Remove freezer basket by lifting up the
rear of the basket and rotate it
upward,
Lift it out to remove,
To replace:
Reverse step 1 thru 4 to replace,
17
