OPM_SGS_ISG_10K_40K_0US_V010.doc 35/45 Installation Guide SG Series 10, 20, 30 & 40 kVA
3.8.8 Setup for SG Series when functioning as frequency converter
When the SG Series is utilized for different output frequency compared to the input
frequency, the Automatic Bypass and Manual Bypass functions are disabled, therefore the
load cannot be transferred to Utility in case of overload, short circuit, or inverter failure.
In situations where the UPS needs to be powered down for maintenance purposes, the
critical load must also be powered down during this time, the UPS cannot be transferred to
Manual Bypass, serious damage to the load could result.

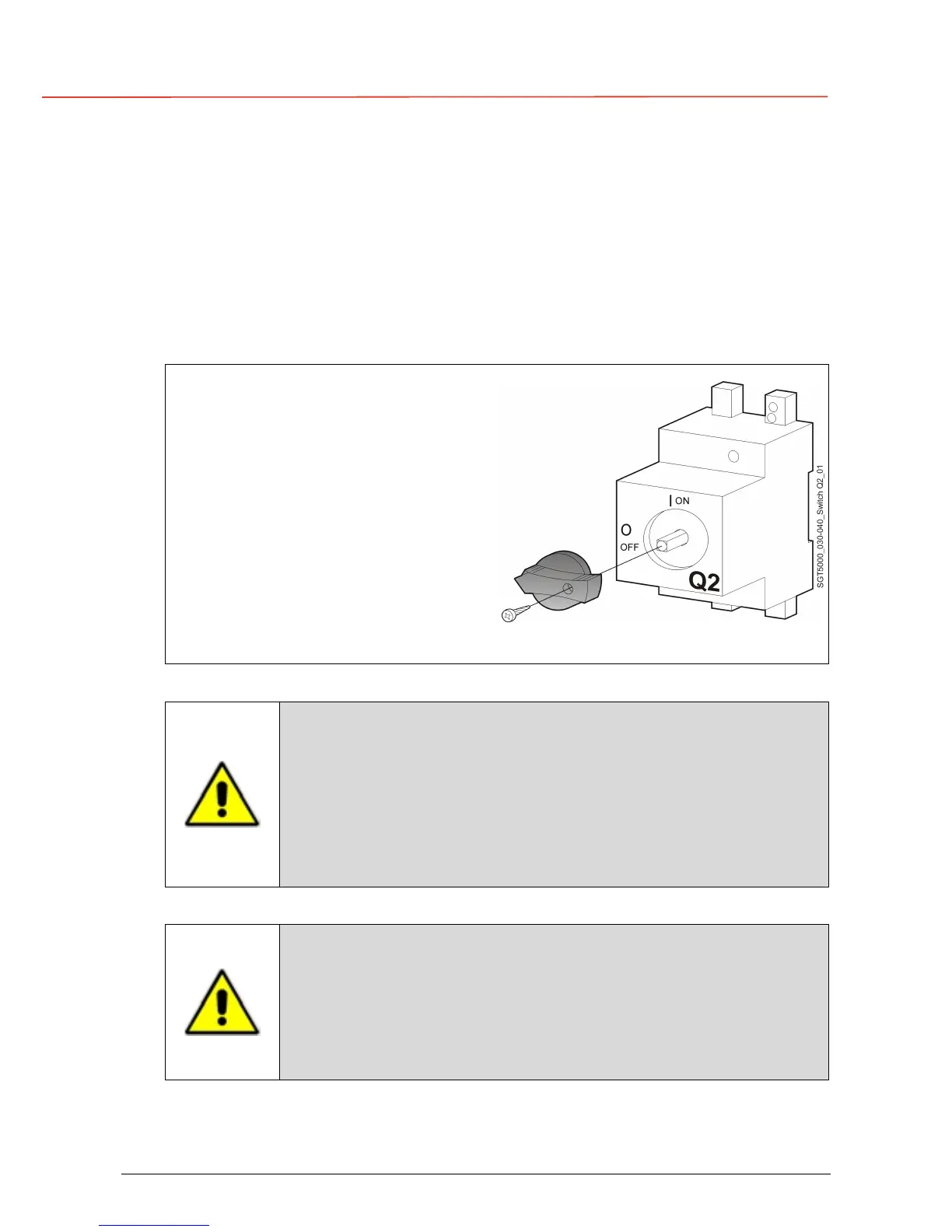

The handle of the switch Q2 - Manual
Bypass should be removed to avoid
attempts to transfer to Manual Bypass
when the UPS is being used as a
frequency converter.
As an added measure of safety the
interconnection links BR1, BR2 and BR3
should also be removed.
See Fig. 3.8.4-2 (SG Series 10 & 20 kVA)
or Fig. 3.8.5-2 (SG Series 30 & 40 kVA).
Fig. 3.8.8-1 Switch Q2 – Manual Bypass
NOTE !
The standard SG Series UPS may be operated at 50Hz input with 60Hz
output frequency conversion.
It is recommended that the static switch bypass be electronically
blocked if the UPS is to operated as a frequency converter in order
to prevent damage to the load.
Check with a Global Services Field Service Engineer to facilitate the
parameter change.
CAUTION !
The output transformer of the UPS is designed for 60Hz only.
Operation at 50Hz, 480V output may overheat the transformer.
The optional 5th harmonic filter is designed for 60Hz operation.
If the UPS is purchased with this internal filter it may not be operated
at 50Hz input or damage to the filter could result.
