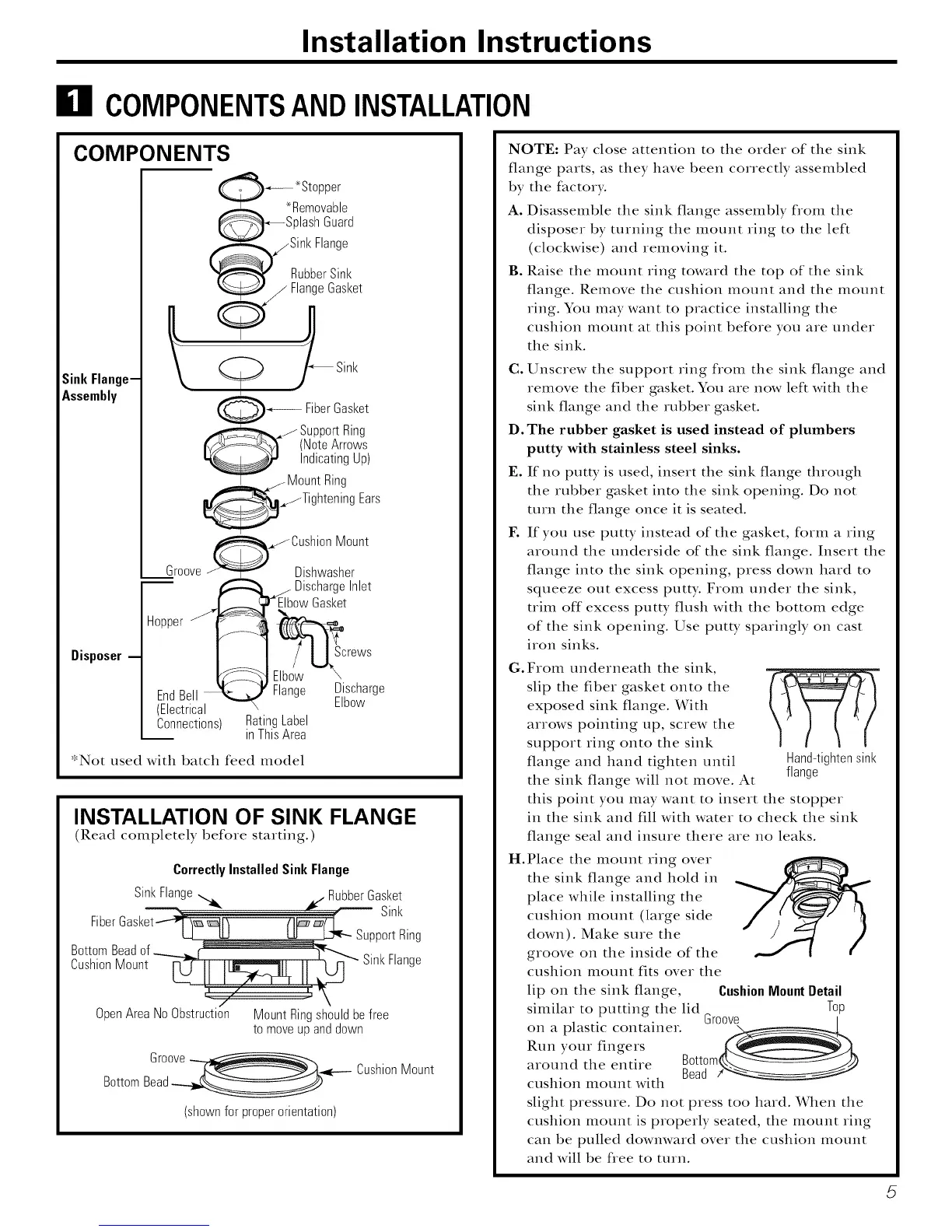

Installation Instructions
El COMPONENTSANDINSTALLATION
COMPONENTS
_*Stopper
*Removable
)lashGuard
Flange
SinkFlange-
Assembly
Disposer --
RubberSink
FlangeGasket
_M sFiberGasket
upportRing
(NoteArrows
IndicatingUp)
ount Ring
.jTightening Ears
.JCushion Mount
Groove_ Dishwasher
Hopper _ ""J DiF_schargeGasketlnlet
"rews
Elbow
EndBell _ Flange Discharge
(Electrical Elbow
Connections) RatingLabel
inThisArea
*Not used with batch feed model
INSTALLATION OF SINK FLANGE
(Read completely before starting.)
CorrectlyInstalled Sink Flange
SinkFlange_ _ RubberGasket
" _ Sink
FiberGasket
SupportRing
BottomBeadof _ .
CushionMount _ SinkFlange
OpenArea NoObstruction MountRingshouldbefree
to moveupanddown
Groove
Bottom
CushionMount
(shownfor properorientation)
NOTE: Pay close attention to the order of the sink
flange parts, as they have been correctly assembled
by the factory.
A. Disassemble the sink flange assembly fiom the
disposer by turning the mount ring to the left
(clockwise) and removing it.
B. Raise the mount ring toward the top of the sink
flange. Remove the cushion mount and the mount
ring. You may want to practice installing the
cushion mount at this point before you are under
the sink.
C. Unscrew the support ring flom the sink flange and
remove the tiber gasket. You are now left with the
sink flange and the rubber gasket.
D. The rubber gasket is used instead of plumbers
putty with stainless steel sinks.
E. If no putty is used, insert the sink flange through
the rubber gasket into the sink opening. Do not
turn the flange once it is seated.
F. If you use putty instead of the gasket, form a ring
around the underside of the sink flange. Insert the
flange into the sink opening, press down hard to
squeeze out excess putty. From under the sink,
trim off excess putty flush with the bottom edge
of the sink opening. Use putty sparingly on cast
iron sinks.
G.From underneath the sink,
slip the tiber gasket onto the
exposed sink flange. With
arrows pointing up, screw the
support ring onto the sink
flange and hand tighten until
the sink flange will not move. At
Hand-tightensink
flange
this point you may want to insert the stopper
in the sink and fill with water to check the sink
flange seal and insure there are no leaks.
H.Place the mount ring over
the sink flange and hold in
place while installing the
cushion mount (large side
down). Make sure the
groove on the inside of the
cushion mount fits over the
lip on the sink flange, Cushion Mount Detail
similar to putting the lid Top
on a plastic container. Gr0_k._--
Run your fingers
around the entire B0tt0m_.__j)))
Bead /-_---_
cushion mount with
slight pressure. Do not press too hard. When the
cushion inotlnt is properly seated, the inotlnt ring
can be pulled downward over the cushion mount
and will be free to turn.
5
