CHAPTER 6: ACTUAL VAL
UES
METERING
F35 MULTI
PLE FEEDER PROTECTION
SYSTEM –
INSTRUCTION
MANU
AL
6-13
6

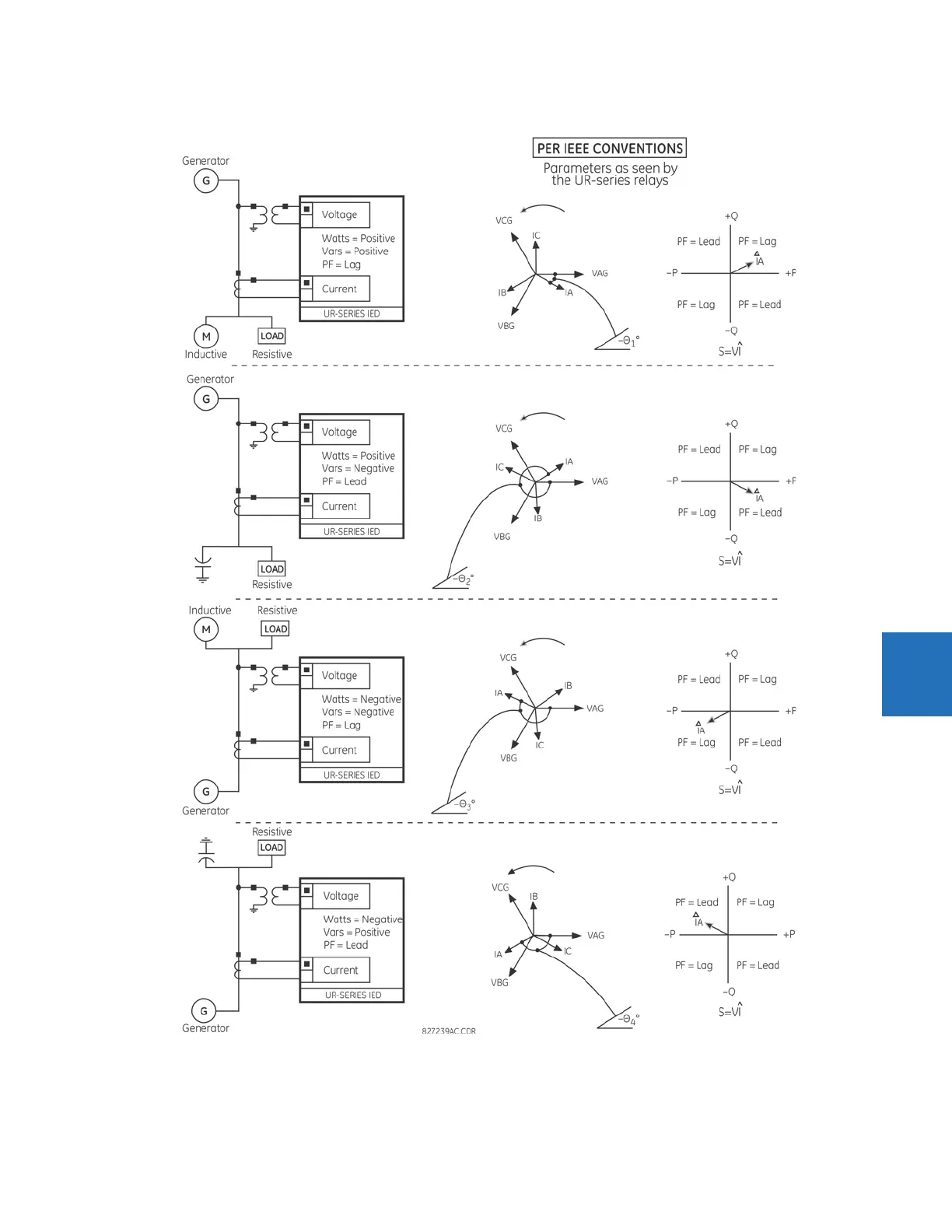

Figure 6-2: Flow dir
ection of signed values for watts and V
ARs
6.4.1.2 UR convention
for measuring phase angles
All phasors calculat
ed by URs and used for protection, control and metering functions are rotating phasors that maintain
the correct phase angle r
elationships with each other at all times.
