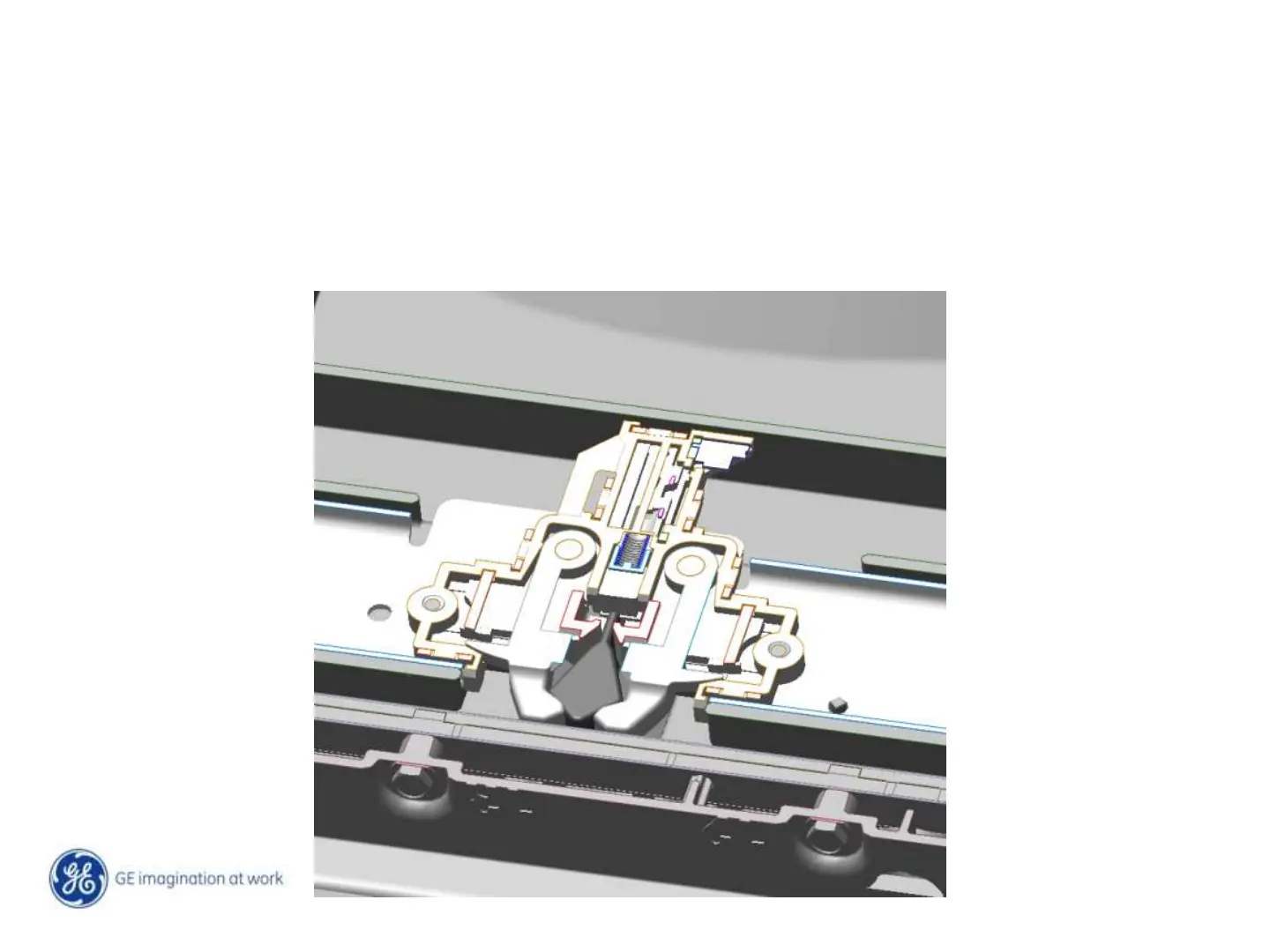

Door Latch
Door Latch assembly
located on the T
ub at the top
of the Dishwasher
.
It is activ
ated
by a strike
located on
the door
Switches ar
e 13.5 VDC
The switches
activate
or de-activate
relays
on the main contr
ol Board
Use Err
or Code
Mode to check operation
104
106
Table of Contents
Installation
11
Lower Rack
22
Upper Rack
25
Demo Mode
29
Top Control
53
Main Control Board
56
Control Board Layout
59
Fill System
67
Flood Switch Removal
71
Circulation System
72
Wire Harness Routing
86
Clamp Removal
87
Drain System
92
Drain Water
94
Dry System
102
Door Latch
105
Turbidity Sensor
109
Cycle Information
111
