– 33 –

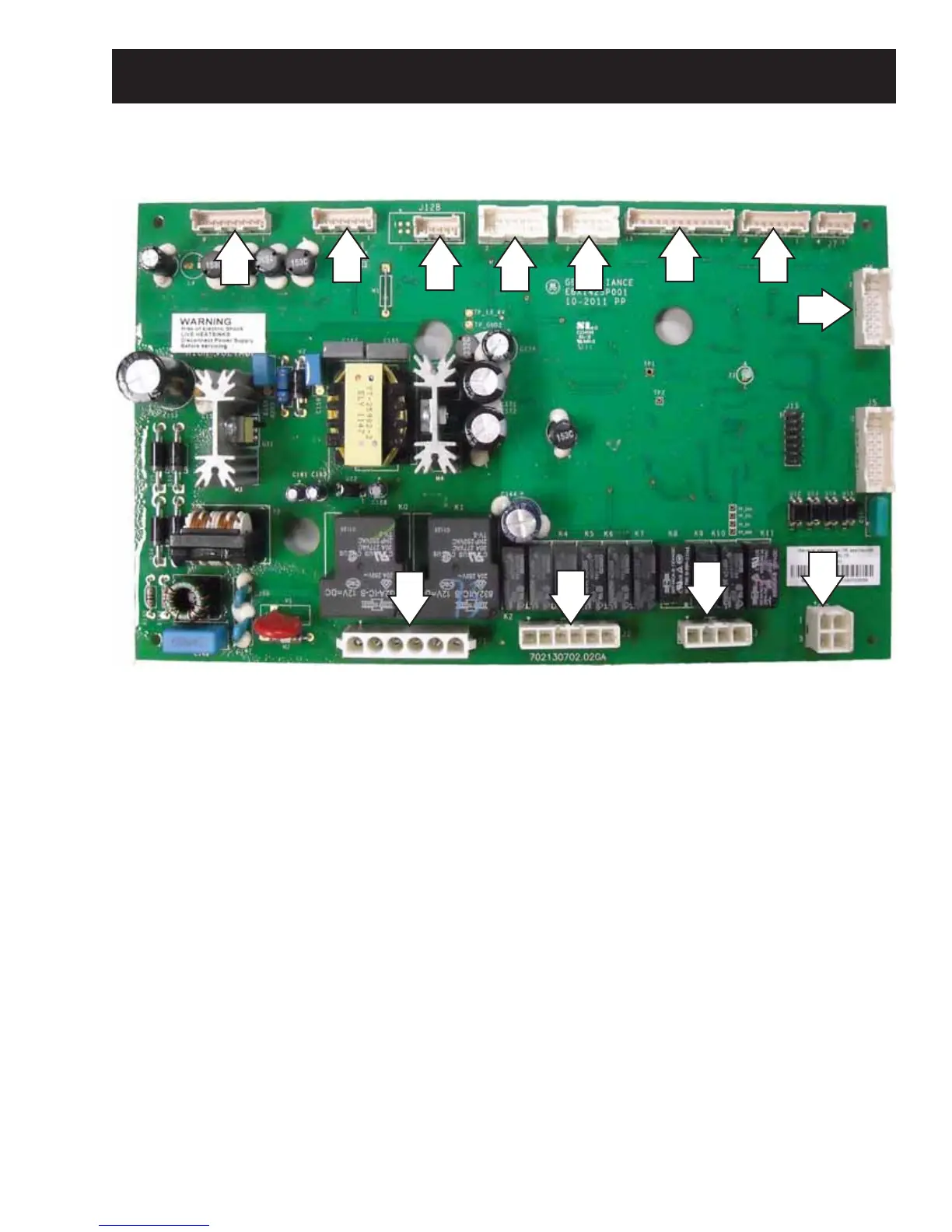

Control Board Connector Locator
(Continued next page)
Main Control Board
J14
J13
J12
J11
J10
J9
J8
J6
J1
J2
J4
J10 - Freezer Thermistor, Freezer Evaporator
Thermistor
J11 - Deli Pan Board, Deli Pan Thermistor, Fresh
Food Evaporator Thermistor, Fresh Food
Thermistor
J12 - 3-Way Valve
J13 - Energy Management System
J14 - LED Lighting
J1 - Earth (Ground), Neutral Input, Freezer Defrost
Heater, Line Input
J2 - Isolation Water Valve, Fresh Food Defrost
Heater, Ice Port Heater, Deli Pan Heater
J3 - Freezer Icemaker (GE Models)
J4 - Left Door Switch, Freezer Light Switch, Right
Door Switch
J6 - Deli Pan Fan, Fresh Food Fan, Deli Pan Damper
J8 - Freezer Evaporator Fan, Freezer Icebox Fan
J9 - Condenser Fan, Main Board Enclosure Heater,
Inverter, Ambient Thermistor, Humidity Sensor
J3
To Next Page
