– 54 –
4. Expand both tabs and pull out the front and rear
divider stoppers.
5. To release the divider from the ceiling, sharply
push the divider toward the evaporator cover.
Divider
Tabs
6. Remove the freezer fan cover. (See Freezer Fan,
follow steps 2 and 3.)
7. Disconnect the freezer fan wire harness.
8. Remove the two 1/4-in. hex-head screws from
the top of the evaporator cover.
9. Lift the bottom of the cover to release 3 bottom
tabs, then pull cover out from the back wall.
Disconnect
Tabs
Freezer Evaporator Cover

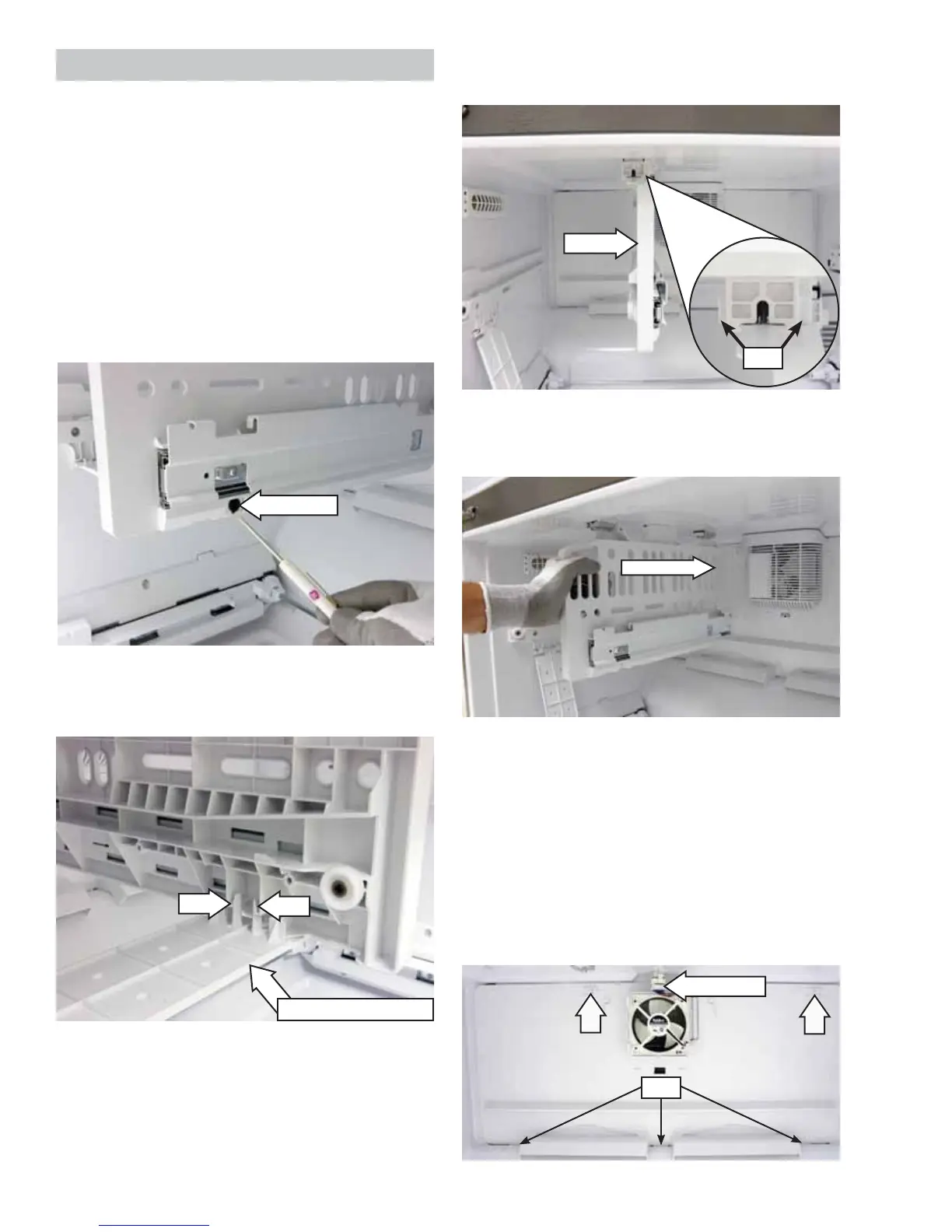

The freezer evaporator cover is held to the back wall
of the freezer with two 1/4-in. hex-head screws. It
is necessary to remove the freezer divider support
and the freezer fan when removing the freezer
evaporator cover.
To remove the
freezer evaporator cover:
1. Remove the freezer drawer slide assemblies.
(See Freezer Drawer Slide Assemblies.)
2. Using a small fl at blade screwdriver, pry out the
bottom support divider pin.
3. Squeeze inward both bottom support divider
tabs and release support from divider.
Divider Pin
Tab
Tab
Bottom Support Divider
To Next Page
