GE JNM3163RJ3SS User Manual

18 31-7000173 Rev. 0

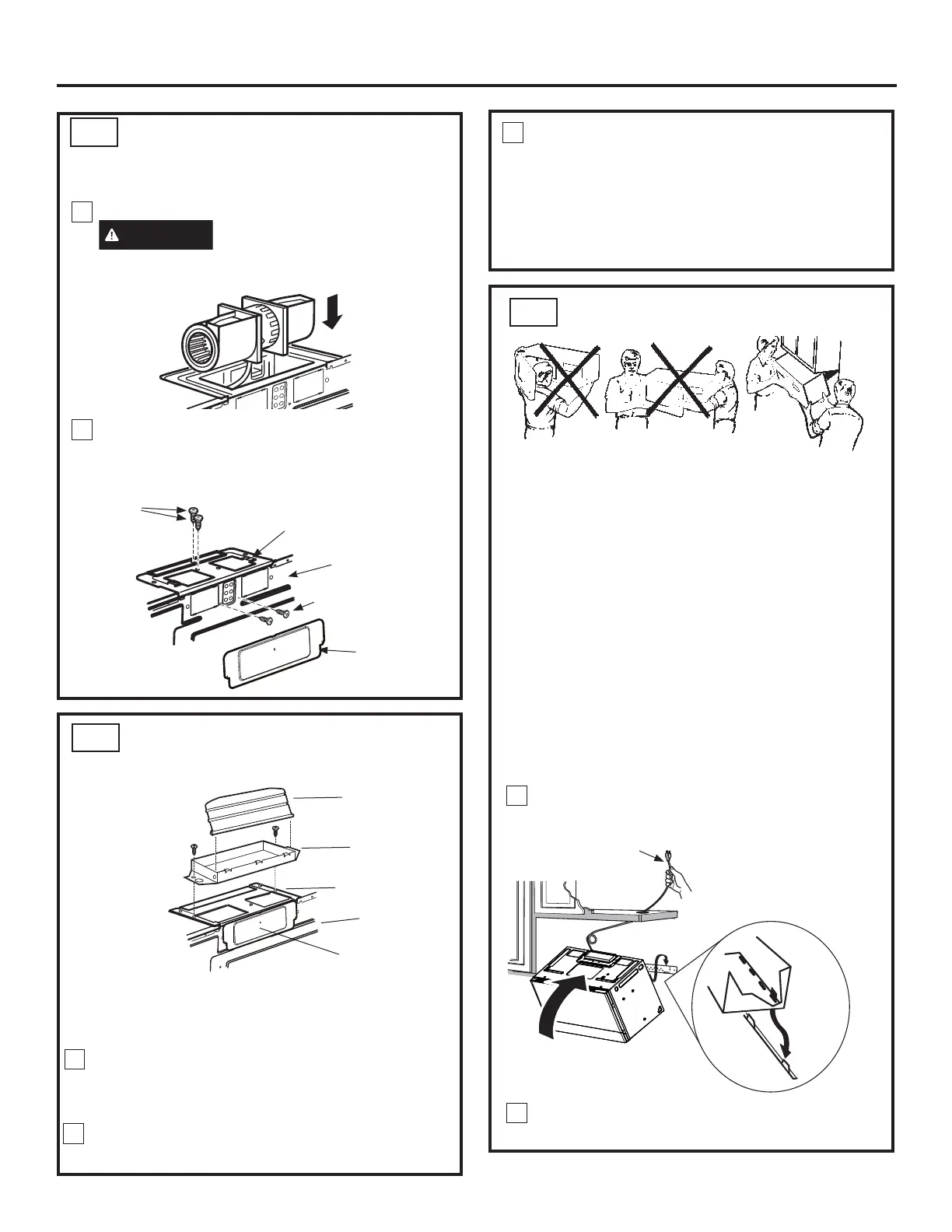

Installation Instructions
ASSEMBLE AND
INSTALL ADAPTOR
MOUNT THE OVEN
B6.
B5.
FOR EASIER INSTALLATION AND PERSONAL
SAFETY, WE RECOMMEND THAT TWO PEOPLE
INSTALL THIS OVEN.
IMPORTANT: Do not grip or use handle
during installation.
NOTE: If your cabinet is metal, use the nylon
grommet around the power cord hole to prevent
cutting of the cord.
NOTE: We recommend using filler blocks if the
cabinet front hangs below the cabinet bottom shelf.
IMPORTANT: If filler blocks are not
used, case damage may occur from over
tightening screws.
Damper
Back of
Oven
Cover Plate
Place the oven in its upright position, with the top of
the unit facing up.
NOTE: Make sure the blower fan blades are
visible and are pointing up.
Insert the tabs on each side of the damper into the
holes at the inside rear of the adaptor.
Exhaust
Adaptor
1
2
Blower Plate
NOTE: On some models, the exhaust adaptor and
damper assembly may already be assembled to the
oven.
Place the blower unit back into the opening.
CAUTION
Do not pull or stretch the
blower unit wiring. Make sure the wires are
not pinched.
6
5
Replace blower motor screws removed in Step 2.
Slide cover plate into position on the back of the
unit. Replace blower plate and screws removed in
Step 1.
Blower Plate
Back of
Oven
Blower Plate Screws
Blower Motor Screws
ADAPTING BLOWER FOR
OUTSIDE VENTILATION
(continued)
B4.
Attach the exhaust adaptor to the blower plate
with the two bronze metal screws provided.
Make sure that the damper pivots easily before
mounting oven.
You will need to make adjustments to assure
proper alignment with your house exhaust duct
after the oven is installed.
3
Cover Plate
NOTE: When mounting the microwave, thread
power cord through hole in bottom of top cabinet.
Keep it tight throughout Steps 1–3. Do not pinch
cord or lift microwave oven by pulling cord.
Lift microwave, tilt it forward, and hook slots
at back bottom edge onto four lower tabs of
mounting plate.
Rotate front of microwave oven up against
cabinet bottom.
1
2
Power Cord

GE JNM3163RJ3SS Specifications

General

Type	Over-the-Range Microwave
Capacity	1.6 cu. ft.
Power Output	1000 Watts
Weight	63 lbs
Color	Stainless Steel
Control Type	Electronic Touch
Turntable	Yes
Sensor Cooking	Yes
Installation	Over-the-Range
Convection Cooking	No
Grill	No
Pre-Programmed Settings	Yes
Child Lock	Yes
Display Type	Digital
Installation Type	Over-the-Range
