31-7000173 Rev. 0 27

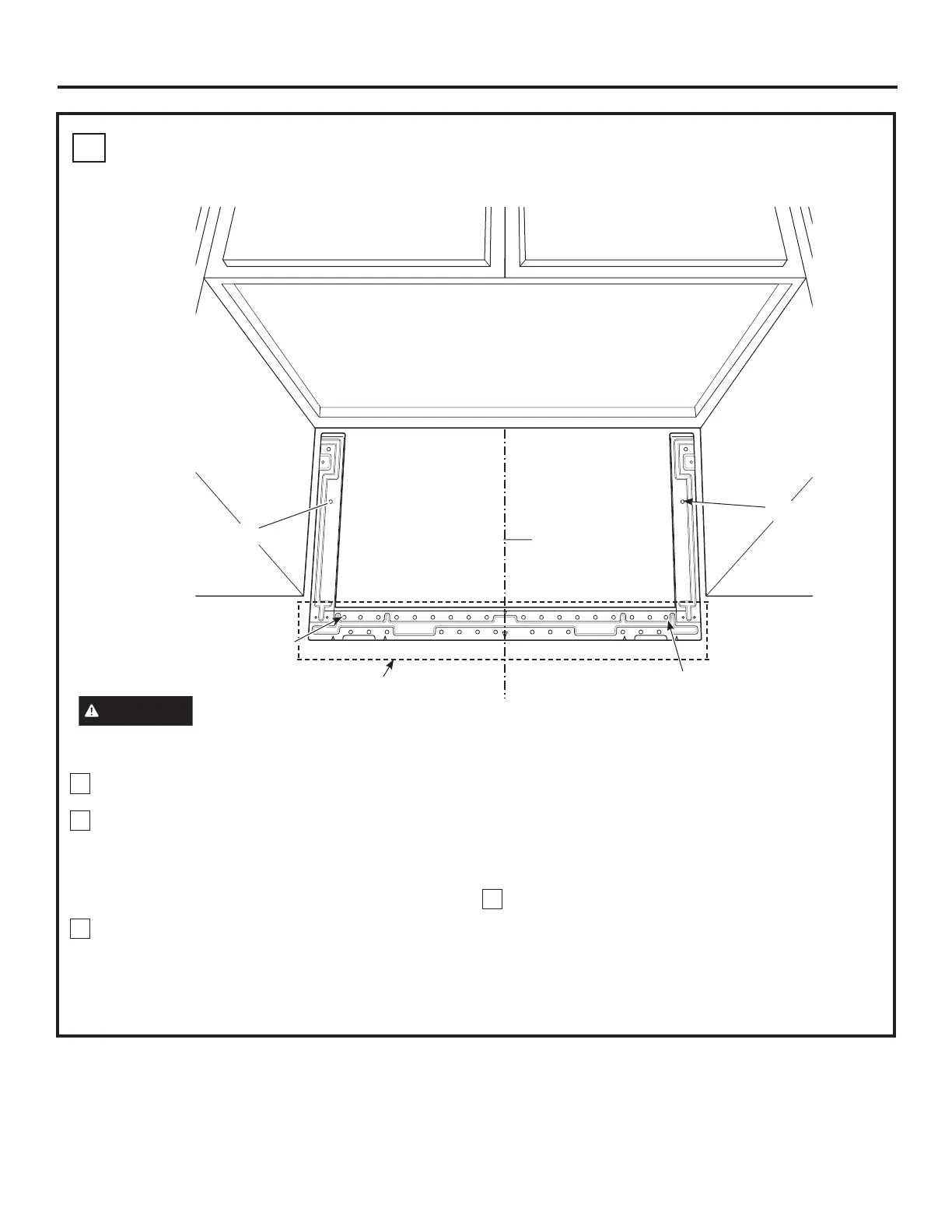

ALIGNING THE WALL PLATE
Draw a vertical line on the wall at the center of the 30”
wide space.
Use the mounting plate as the template for the rear
wall. Place the mounting plate on the wall, making
sure that the tabs are touching the bottom of the
cabinet or the level line drawn in Step C for
cabinets with front overhang. Line up the notch
and center line on the mounting plate to the center
line on the wall.
While holding the mounting plate with one hand,
draw circles on the wall at holes A, B, C and D (see
illustration above/actual plate marked with arrows) .
Four holes must be used for mounting.
NOTE: Holes C and D are inside area E. If neither
C nor D is in a stud, find a stud somewhere in area
E and draw a fifth circle to line up with the stud. It is
important to use at least one wood screw mounted
firmly in a stud to support the weight of the oven.
Set the mounting plate aside.
Drill holes on the circles. If there is a stud, drill a
3
/16”
hole for wood screws. For holes that don’t line up with
a stud, drill a
5
/8” hole for toggle bolts.
NOTE: DO NOT MOUNT THE PLATE
AT THIS TIME.
2
3
4
Draw a
Vertical Line
on Wall from
Center of Top
Cabinet
Area E
Hole A
Hole B
Hole D
D.
Installation Instructions
1
Hole C
NOTE: Appearance and
shape of the mounting
plate may vary from your
model.
CAUTION
Wear
gloves to avoid cutting
fingers on sharp edges.
To Next Page
