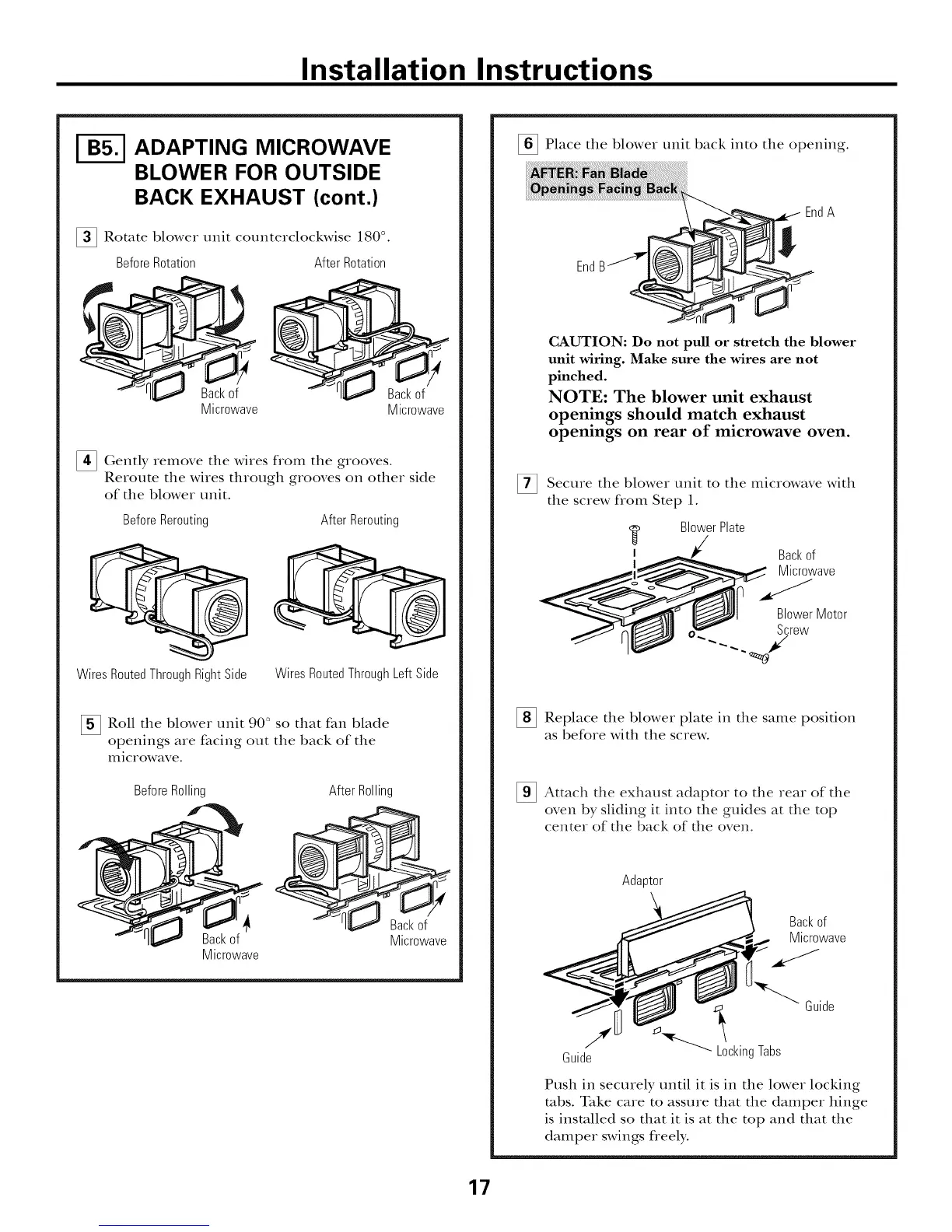

Installation Instructions
ADAPTING MICROWAVE
BLOWER FOR OUTSIDE
BACK EXHAUST (cont.)
[] Rotate blower unit counterclockwise 180 °.
BeforeRotation After Rotation
Microwave Microwave
_l_ Gently the wires flom the
ielilove
giooves.
Reroute the wires through grooves on other side
of the blower unit.
BeforeRerouting After Rerouting
Wires RoutedThroughRightSide WiresRoutedThroughLeft Side
[]Roll the blower unit 90 ° so that fan blade
openings are facing out the back of the
illicrowave.
BeforeRolling
Backof
Microwave
After Rolling
_ Backof
Microwave
[]Place the blower unit back into the opening.
EndA
End
CAUTION: Do not pull or stretch the blower
unit wiring. Make sure the wires are not
pinched.
NOTE: The blower unit exhaust
openings should match exhaust
openings on rear of microwave oven.
[] Secure the blower unit to the microwave with
the screw from Step l.
1
I
BlowerPlate
Backof
Microwave
BlowerMotor
Screw
[]Replace the blower in theplate position
same
as before with the screw.
[]Attach the exhaust the of theadaptor
to rear
oven by sliding it into the guides at the top
center of the back of the oven.
Adaptor
Backof
Microwave
_r_. Guide
_ LockingTabs
Guide
Push in securely until it is in the lower locking
robs. Take care to assure that the damper hinge
is installed so that it is at the top and that the
damper swings freely.
17
