MA-025 – DGA 900 Operator Guide – Rev 2.0 12-Apr-19 Page 23 of 92
6.6 GAS / Diagnostics
6.6.1 Active Alarms
Select GAS / Diagnostics > Active Alarms to open the Active Alarms page as shown in
Figure 6-8.

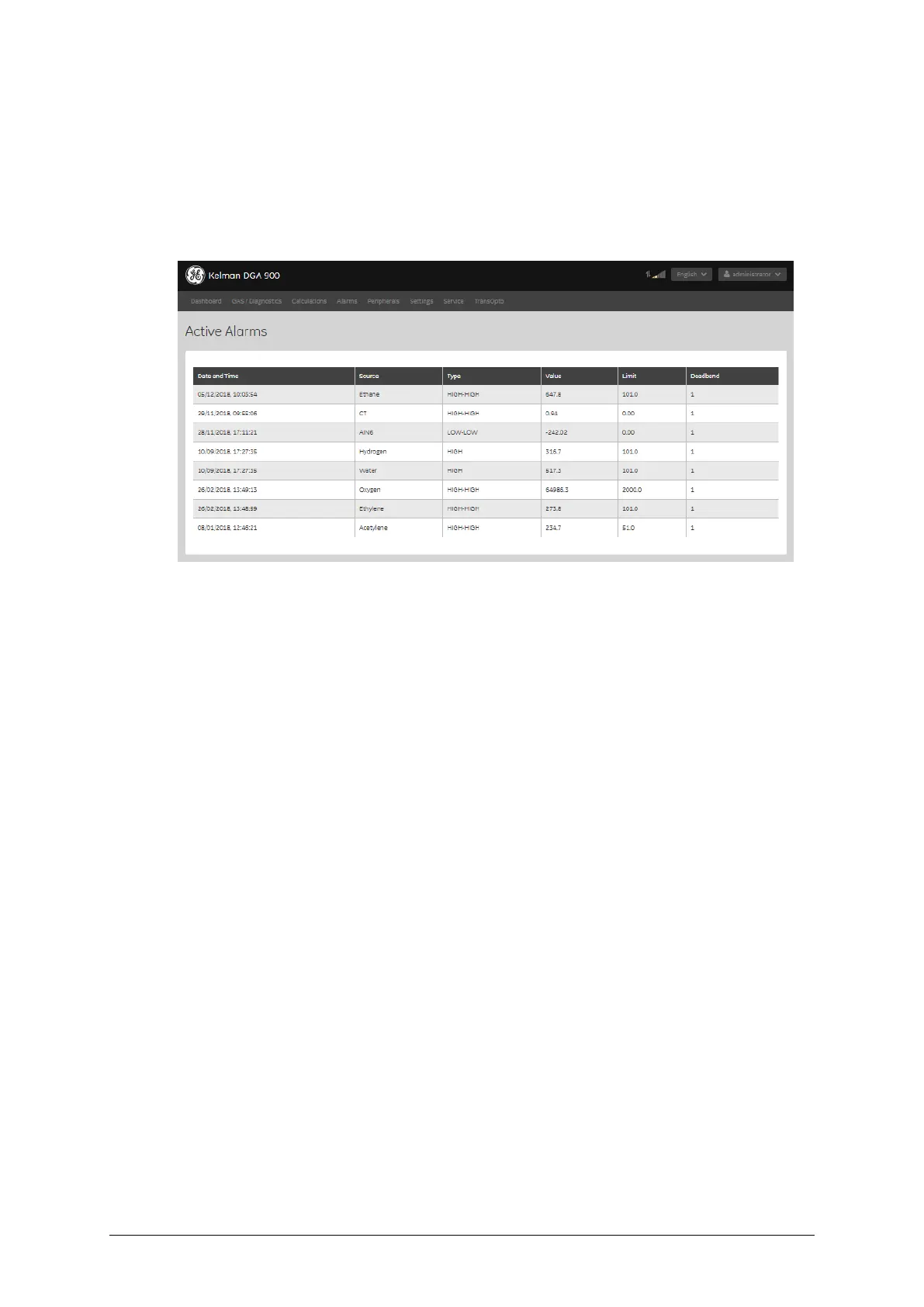

Figure 6-8: Active Alarms
Note: Deadbands are specified in the units relating to what is measured. E.g. PPM for
gas, degrees Celsius (°C) for temperature. See Section 6.8 for a definition of
deadbands.
6.6.2 Measurements
Select GAS / Diagnostics > Measurements to open the Measurements page as shown in
Figure 6-9. The Measurements page reports the values of all variables from a measurement
cycle. The most recent measurement cycle is listed first. Use the scroll buttons to navigate
to previous measurements.
