System Setup
3-18 LOGIQ V3/V5/V5 Expert – Basic Service Manual
5726264-100 English Rev.8
3-5-6 Peripherals/Accessories Connector Panel
LOGIQ V5/LOGIQ V3 peripherals and accessories can be
properly connected using the side connector panel.

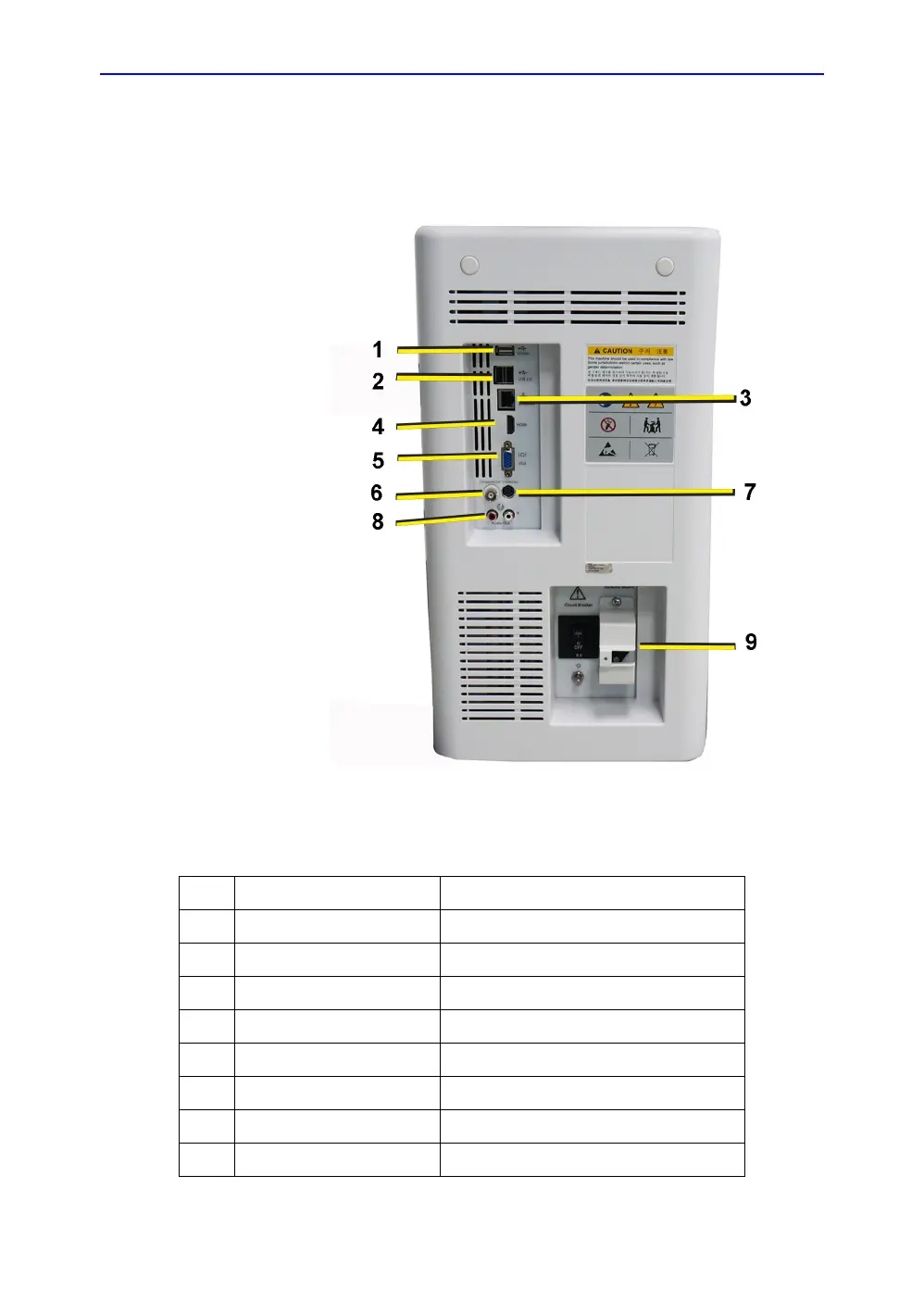

Figure 3-3. Rear Connector Panel
NOTE: The AC printer can be connected to the isolated Printer USB
port on the rear panel only.
1. Printer Dedicated external USB printer connection
2. Dual USB port USB for use
3. Ethernet 100MBase-T for net connectivity
4. HDMI port For video port
5. VGA VGA Video Out
6. Composite Out Composited Video Out
7. S-Video S-Video Out
8. Audio Out Audio Line Out
9. AC Inlet 100-240V
