ALIGNMENT AND TROUBLESHOOTING PROCEDURES

16 LBI-38438A

5.2 TRANSMITTER

Alignment and troubleshooting for Transmitter circuitry on the Transmitter/Receiver

board CMN-233A/B.

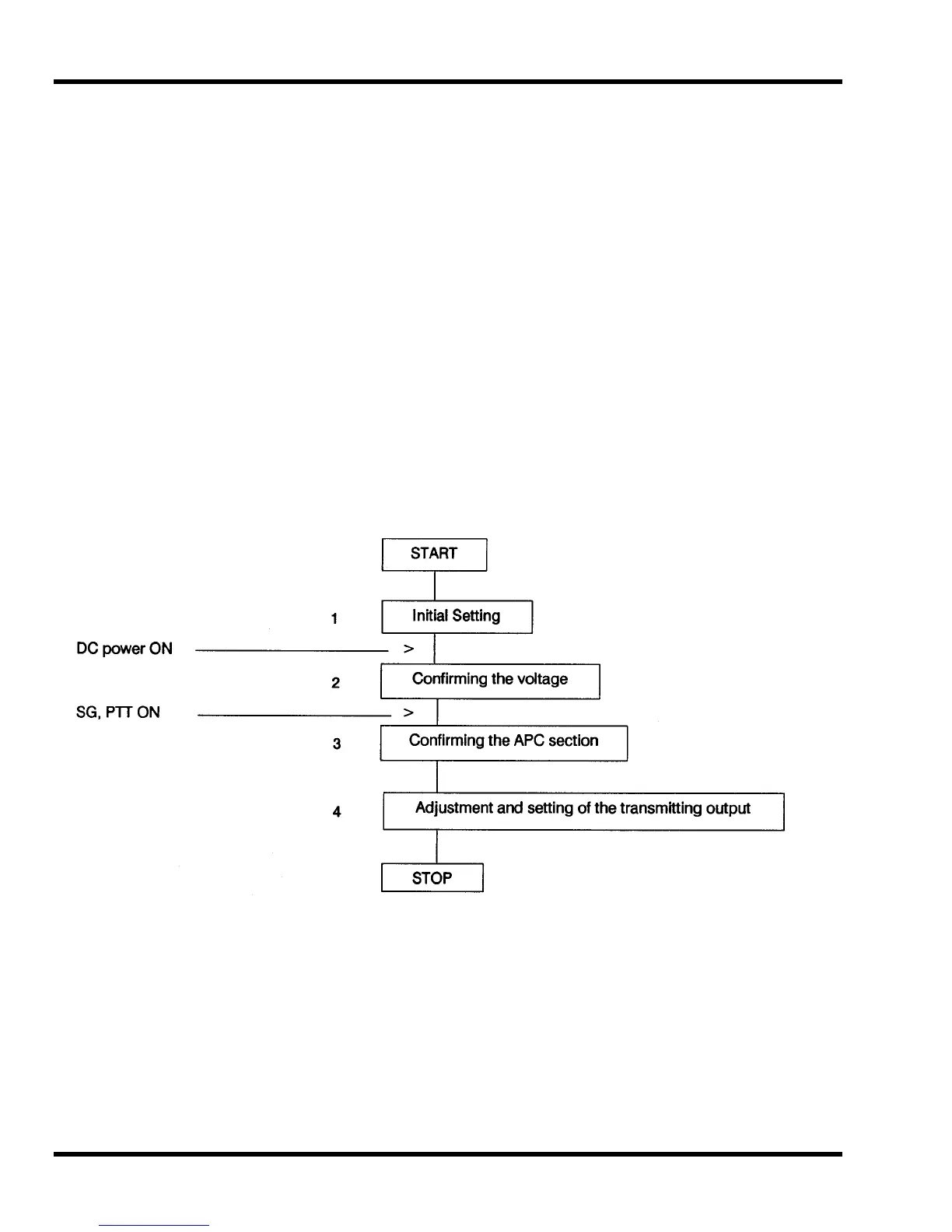

5.2.1 General Description Of Adjustment

This manual is prepared for adjustments and confirmations of the Exciter/PA section and

covers the following items.

5.2.2 Measuring Instruments

1. AVR (DC Power Supply DC 0-20V, 20A)

2. Power Meter (usable at the value above 80 W)

3. Directional Coupler

4. Signal Generator

5. Spectrum Analyzer

6. Attenuator (30 dB, above 80 W)

7. Tester
