Chapter 13: Digital Detector
Optima XR220amx X-Ray System 54400222-1EN Rev 1 DRAFT 11092010 13-10
Operator Manual © 2010 General Electric Company. All rights reserved.
Indicator LED’s

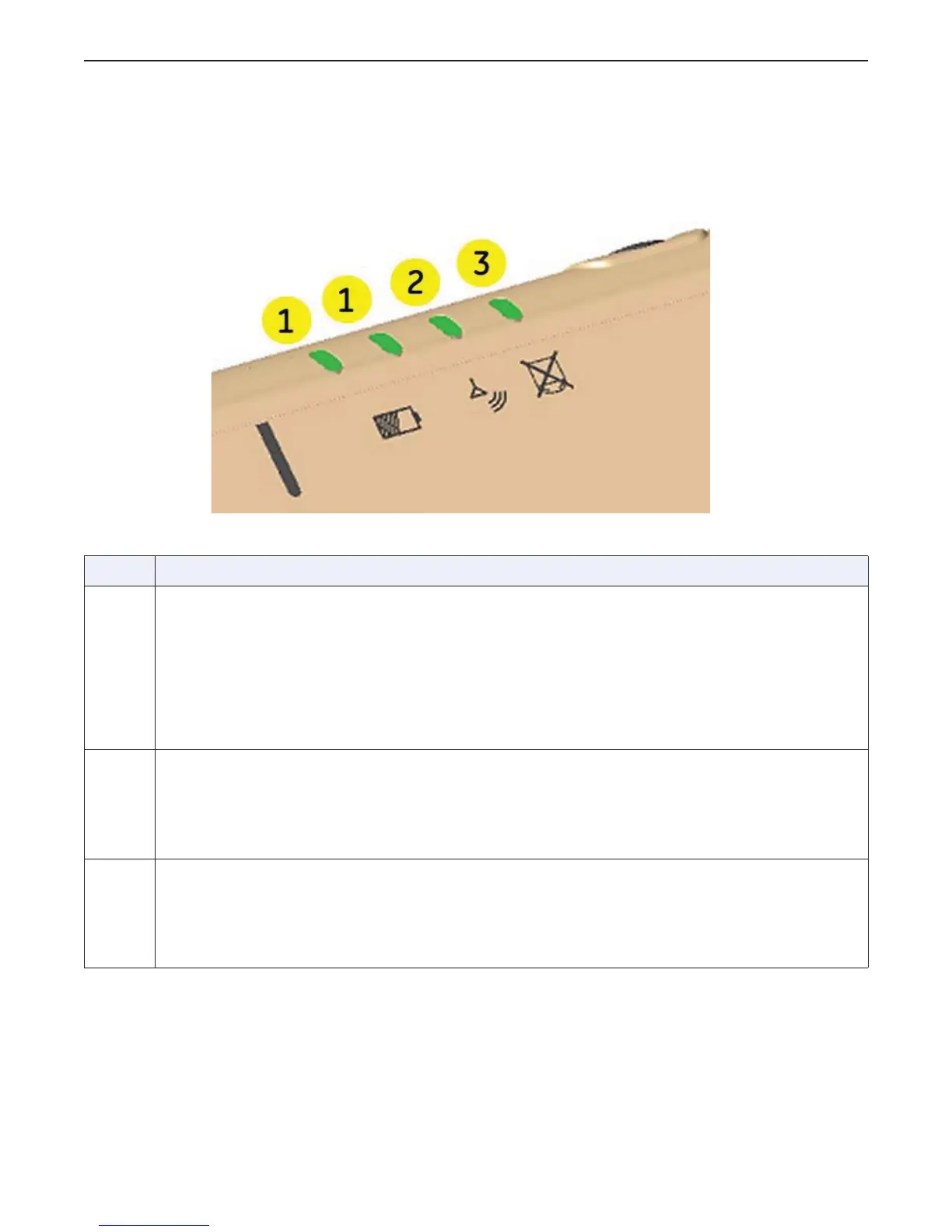

Figure 13-8 Indicator LED’s
Table 13-8 Indicator LED’s
The various states of the Indicator LED’s are shown in the illustrations below.
Item Description
1 Battery LED’s
x Green, Green: Battery more than 75% remaining
x Off, Green: Battery remaining between 25% and 75%
x Off, Yellow: Battery remaining between 10% and 25%
x Off, Red: Battery less than 10% remaining
x Off, Off: Detector in sleep mode
2 Wireless Link LED
x Green: Wireless Link Connected
x Red: No Wireless Link
x Off: Detector in sleep mode
3 Detector LED
x Green: Detector Ready
x Off: Detector Off (in sleep mode)
x Red: Detector Fault Condition
