Installation Guide SG Series 10-20-30-40 UL S
2.2 LAYOUT SG Series 30 & 40

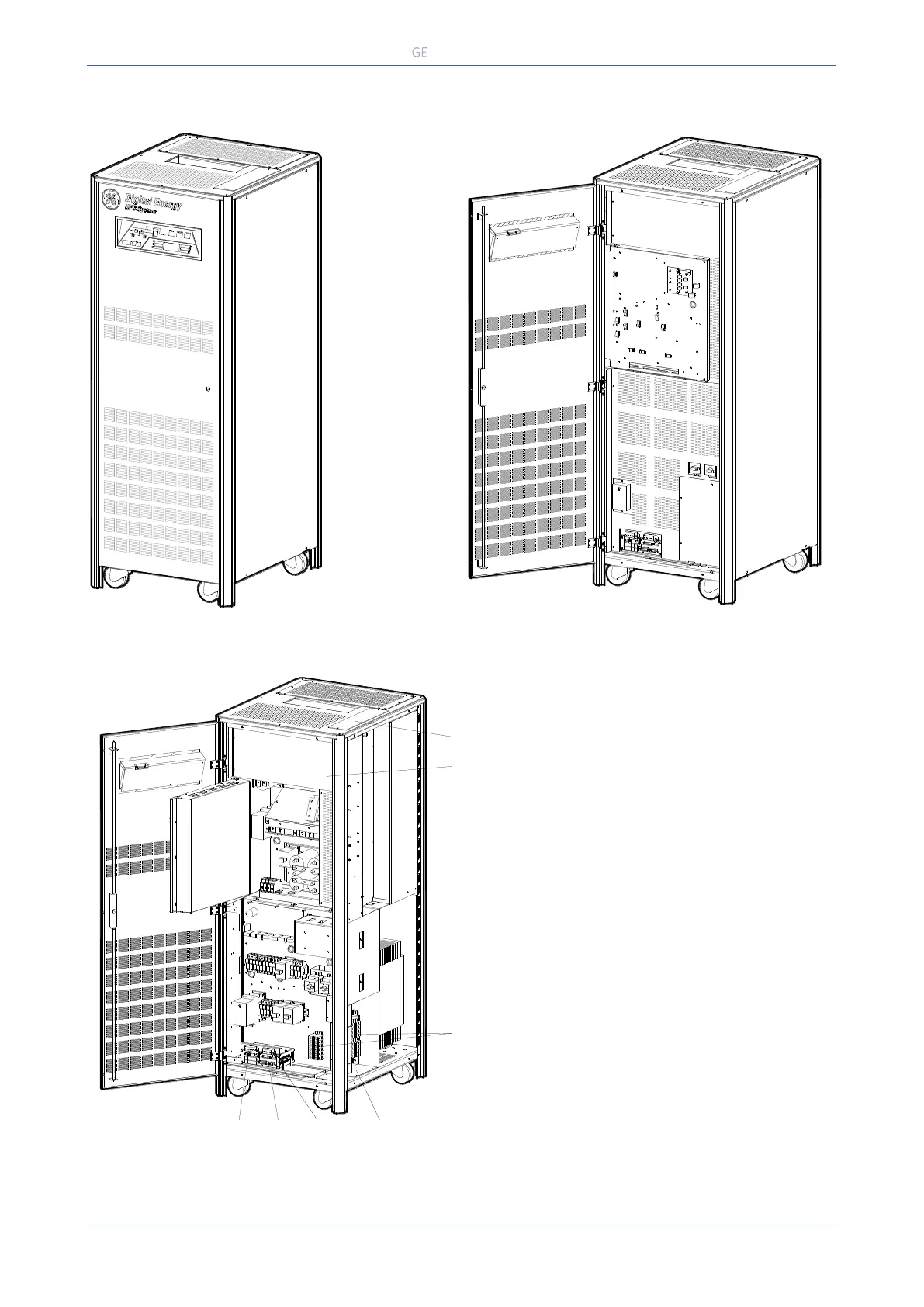

Fig. 2.2-1 SG Series 30 & 40 general view
Fig. 2.2-2 SG Series 30 & 40 general view with open doors
Fig. 2.2-3 SG Series 30 & 40 general view with optional 5
th
harmonic filter
and removed protection panels
1 Opening for top cable entry
2 Opening for bottom cable entry
3 Terminals for Utility input and load
output
4 Terminals for external Battery
connection
CR Connectivity Rack
XA Terminals for 24Vdc Auxiliary
Power Supply connection
XB Terminals for EPO connection
SGT5000_030-040_UPS_GE_02a
SGT5000_030-040_UPS_GE_03
Q1
Q2
ON
OFF
OFF
ON
SGT5000_030-040_UPS_GE_04
4
1
3
2XBXA CR
OFF
ON
OFF
ON
