Installation Guide SG Series 10-20-30-40 UL S
3.8.2 Power connection with common input utility of SG Series 10 & 20

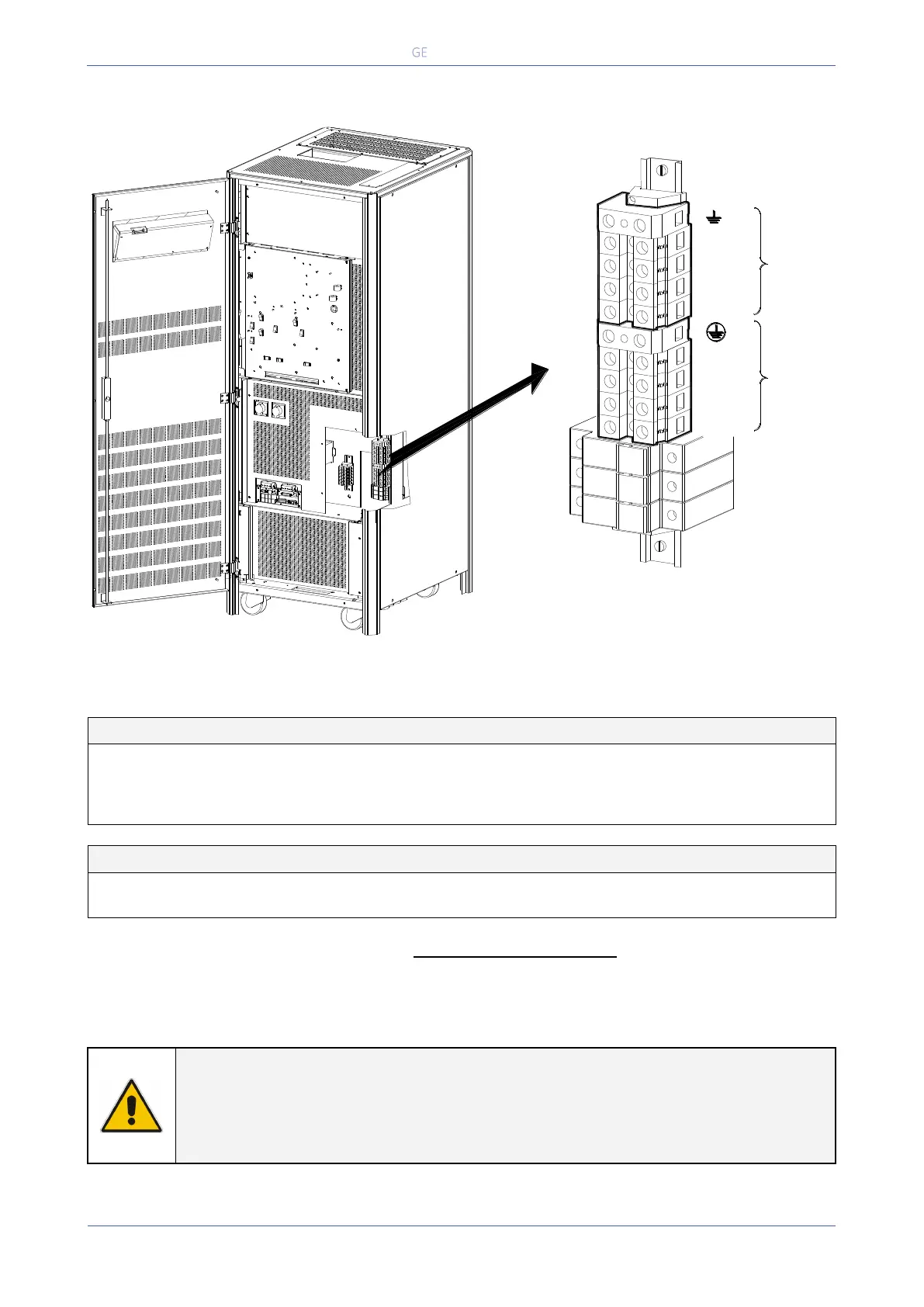

Fig. 3.8.2-1 Power connections Common Input Utility of SG Series 10 & 20
SG Series 10 & 20 Max. rating X1 terminals: 3 AWG (25mm
2
)
Common Input Rectifier / Bypass
L1-1
Rectifier + Bypass Phase A
L2-1
Rectifier + Bypass Phase B
L3-1
Rectifier + Bypass Phase C
N
Neutral
PE
Ground
Output Load
L1
Load Phase A
L2
Load Phase B
L3
Load Phase C
N
Load Neutral
PE
Load Ground
The interconnection links BR1, BR2 and BR3 MUST REMAIN CONNECTED.
Cable terminations are to the Rectifier Input Terminals and Output Terminals as shown above.
Connect wire to the Terminals using appropriate tools and appropriate torque.
Torque specification for Input / Output and DC power connections on Terminals: see Section 3.8.1.
NOTE !
This UPS is only designed to operate in a wye-configured electrical system with a
solidly grounded neutral.
If the UPS is equipped with an input transformer, the secondary of the transformer
must be wye-configured with neutral solidly grounded.
SGT5000_010-020_UPS connection common_01US
N
L1-1
1 - INPUT LOAD
PE
L3-1
L2-1
N
L2
L1
L3
RECTIFIER
X1
PE
&
BYPASS
