7.3 Mechanical Specifications
Sample Connection
3/4-16 straight, male thread with o-ring
Operating Pressure
5 μm Hg to 5,000 psig (345 bar)
Enclosure
Type 4X/IP67
European Compliance
See the EC Declaration of Conformity at the end of this manual
Dimensions
• Overall: 8.51 × 1.125 in. (21.62 × 2.86 cm)
• Electronics Module w/cable: 5.93 × 1.125 in. (15.06 × 2.86 cm)
• Weigh t: 5 oz (140 g)

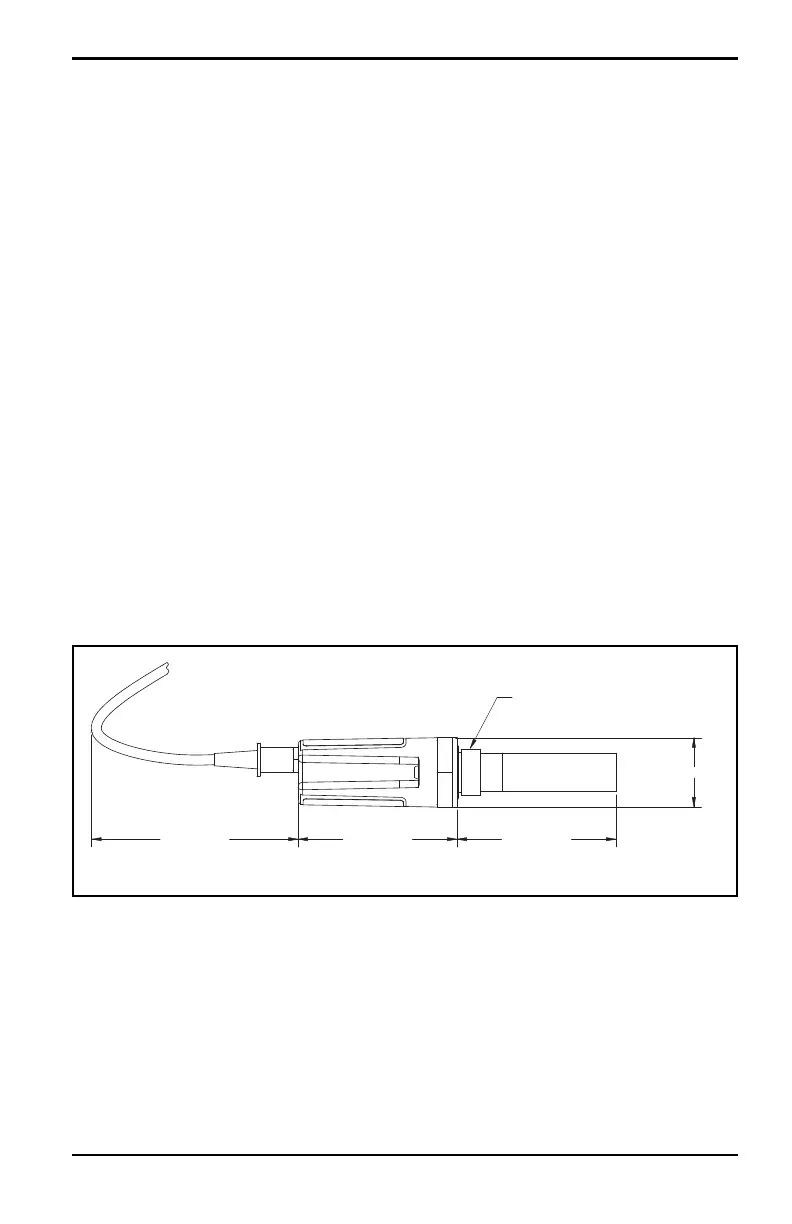

3/4-16 UNF-2A
2.58 [65.53]
2.58 [65.53]
1.125 [28.58]
3.35 [85.10]
MIN
CABLE BEND
ALLOWANCE
