– 16 –
4. Lift the infusor out of the washer.
2. Lift the dispenser out of the infusor.
Note: In the following step, there are 3 O-rings on
the hex-head bolt. They are needed for proper
operation of the fabric softener dispenser.
Make
certain the O-rings are in place on the hex-head
bolt when reassembling.
3. Remove the 7/16-in. hex-head bolt that attaches
the infusor to the drive coupling.

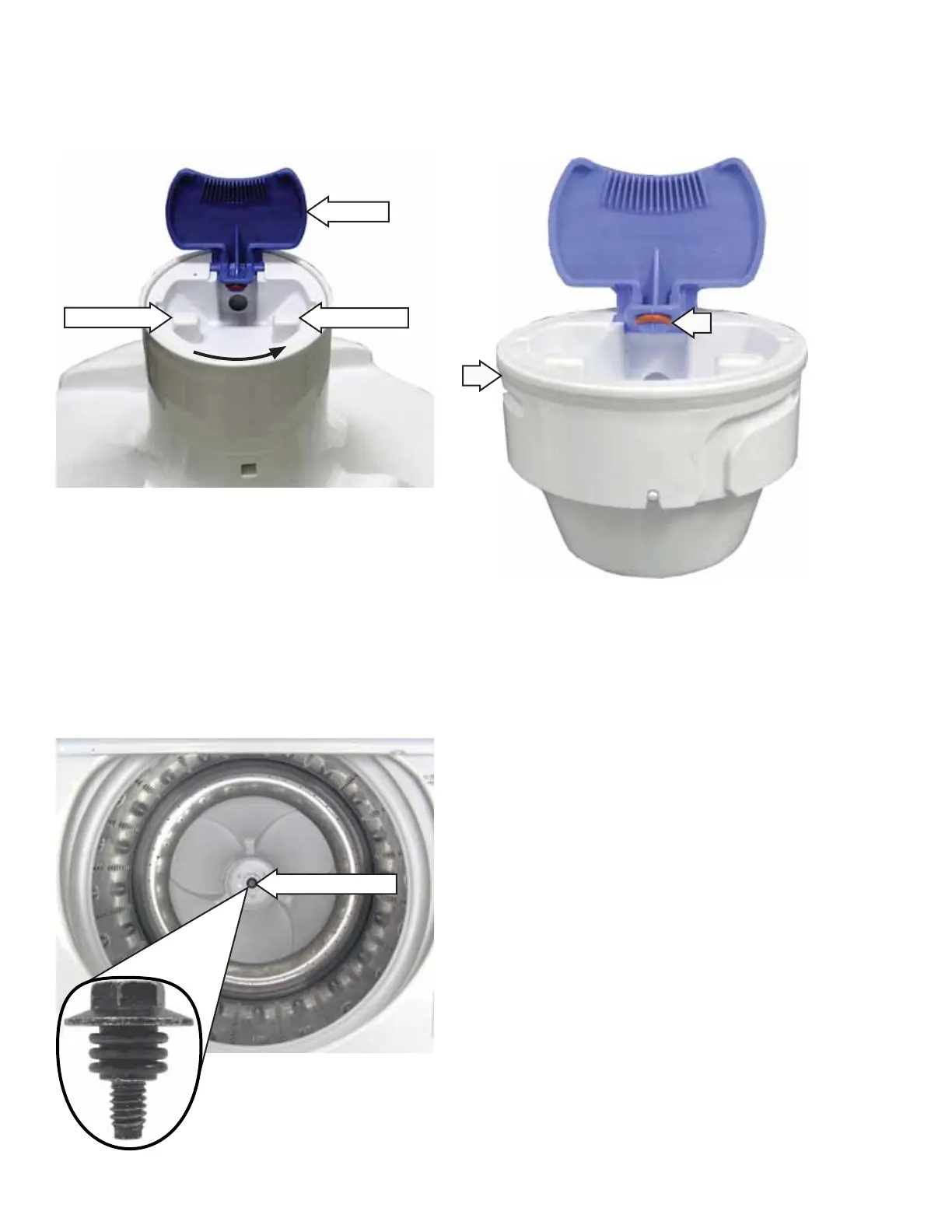

To remove the infusor:
Lift the dispenser top tab. Using the 2 turning 1.
tabs, turn the top approximately 1
¼ inches
counterclockwise.
Top Tab
Turning Tab
Turning Tab
7/16-in. Hex Bolt
Note: There are 2 O-rings on the softener dispenser.
These must be intact and not damaged. If either O-
ring is leaking, softener will be dispensed during the
wash cycle.
To Next Page
