– 32 –

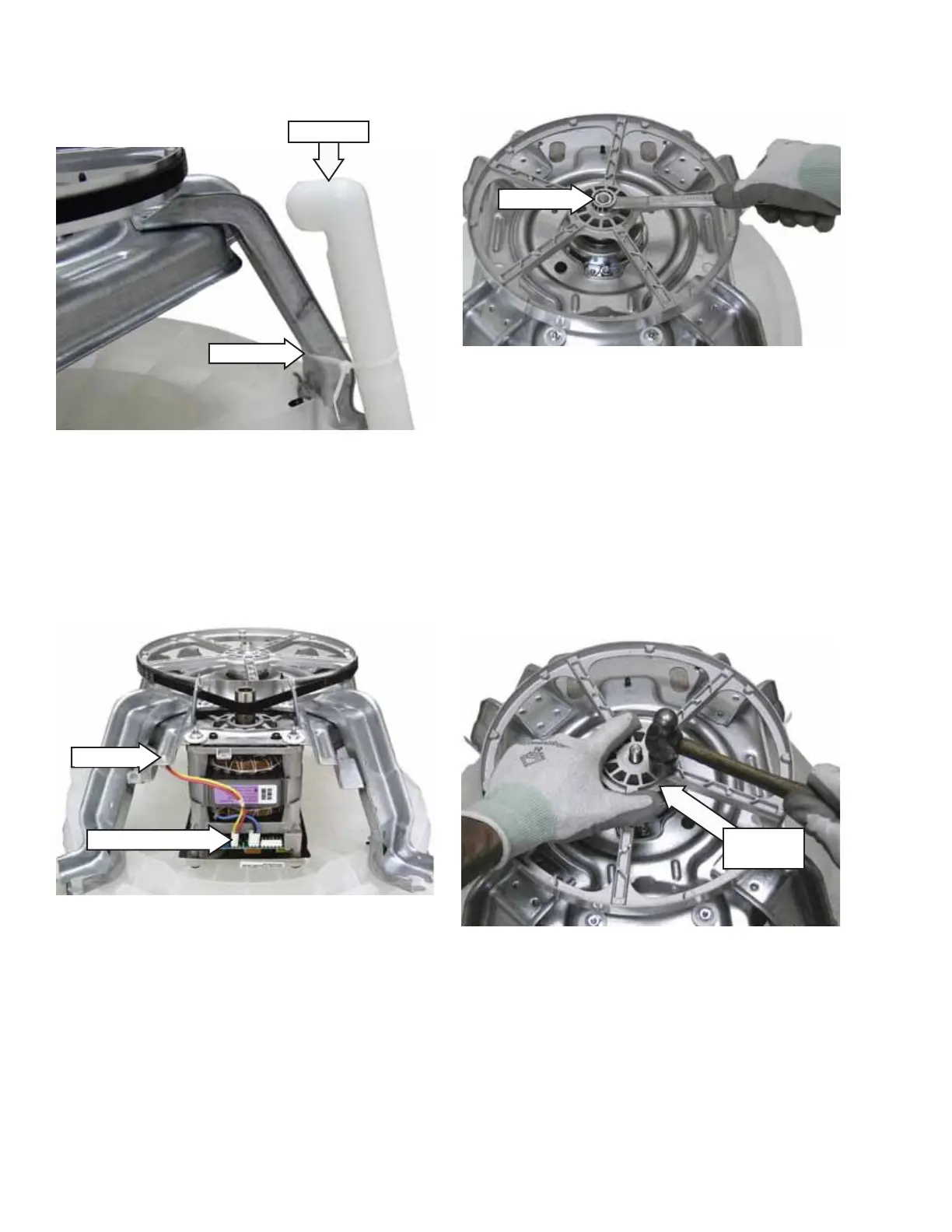

Invert the tub assembly on a protected surface 3.
and remove the plastic tie that holds the fl ood
hose to the platform.
(Continued next page)
Run the belt off the drive pulley and remove the 6.
3/4-in. pulley nut.
Pulley Nut
Disconnect the mode shifter coil wire harness 4.
from the motor.
Release the compression tab that attaches the 5.
mode shifter coil wire harness retainer to the
front of the platform.
Note: When replacing pulley, tighten pulley nut to
275 in. lbs. of torque.
Note: In the following step, after removing the pulley
nut, it may be helpful to grab the center core of the
drive pulley with one hand and gently tap one of the
drive pulley arms with a hammer. The drive pulley
will “pop” off the tapered shaft.
Remove the drive pulley from the shaft and 7.
mode shifter assembly.
Retainer
Coil Wire Harness
Center Core
of Pulley
Plastic Tie
Flood Hose
To Next Page
