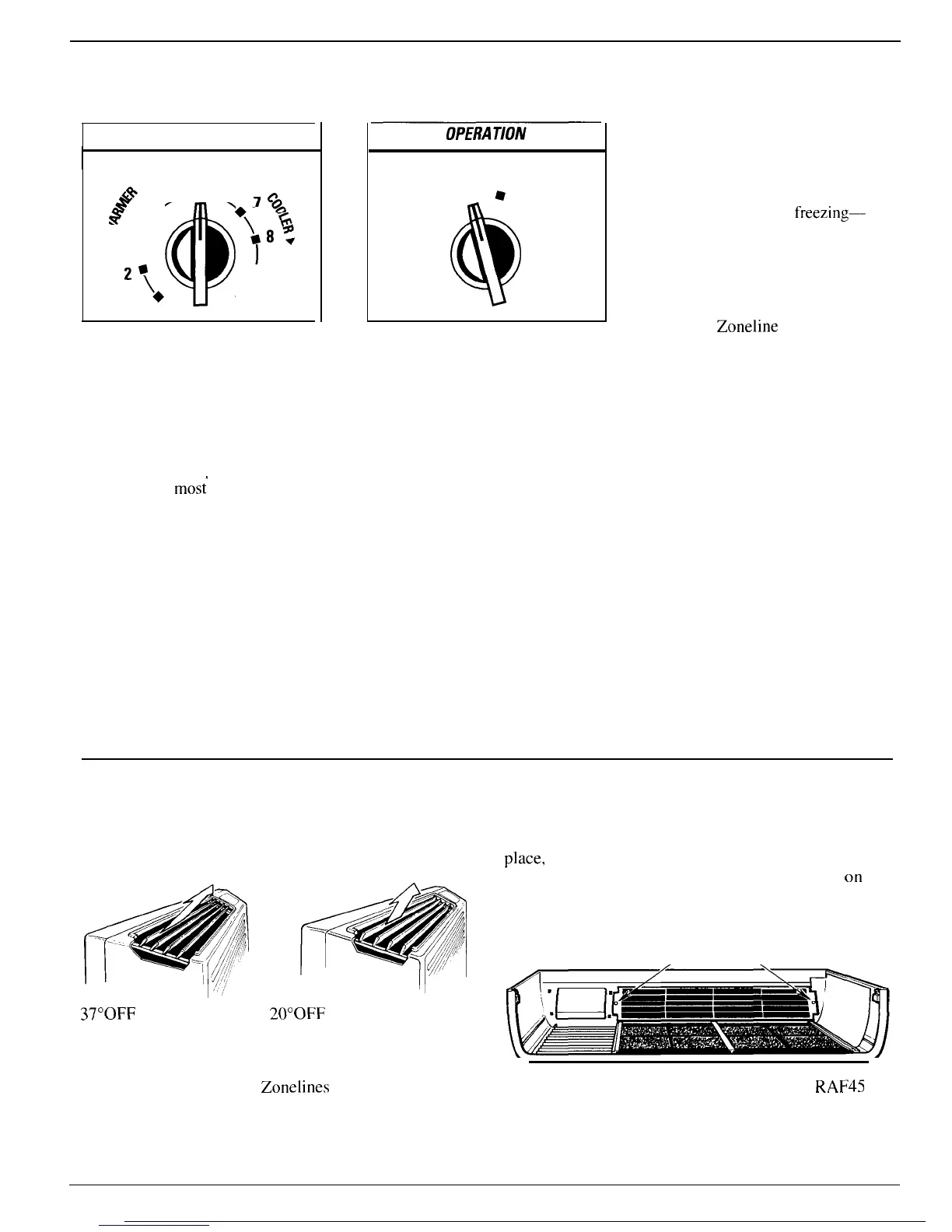

Operating the Controls
THERMOSTAT
56
&
+
4+/*—@\
1
%0
:3@/
(
28
/+
1
$
‘/.
as
I
●
79
10
Thermostat Control
The thermostat knob is used to
control the room temperature. The
unit automatically cycles on and
off to maintain room temperature.
A comfortable temperature will be
maintained in
mos{
rooms when the
control is set at about “5” or “6.”
For cooler temperatures, turn the
control to a higher number.
For warmer temperatures, turn the
control to a lower number.
STOP FAN
LO HEAT ●
8
●
HI HEAT
●
@
●
LO COOL
●
HI COOL
Operation Switch
HI HEAT provides heating with
high fan speed operation.
LO HEAT provides heating with
low fan speed operation.
STOP
setting stops heating or
cooling.
However, power remains
connected to the unit
and the
Freeze Sentinel still functions.
FAN provides fan operation
without cooling or heating.
HI COOL provides cooling with
high fan speed operation.
LO COOL provides cooling with
low fan speed operation.
About Your Heat Pump...
Heat pumps can save money by
removing heat from the outside
air—even when the outside
temperature is below
freezing—
and releasing that heat indoors.
To get the best from your heat
pump, don’t change the room
thermostat very often. Raising
the heat setting 2-3 degrees may
cause the
Zoneline
heat pump
to use its electrical heating
elements in order to reach the
new temperature setting quickly.
The electric heating elements use
much more electricity than heat
pumps and cost more to operate.
Discharge Air Louvers
The angling of the discharge air may be adjusted from
the factory setting of 37° off vertical, to a setting 20°
off vertical.
37°0FF VERTICAL
20°0FF VERTICAL
To reposition the louvers, remove the room cabinet and
remove the 2 screws that hold the louver section in
place,
rotate the louver section 180° (end for end),
replace the screws and put the room cabinet back
on
the
air conditioner. Textured face of louver section must be
toward the room side.
LOUVER SCREWS
/\
NOTE: For high mounted
Zonelines
where greater room cabinet louver adjustments are required, order the
RAF45
Room Cabinet.
3
