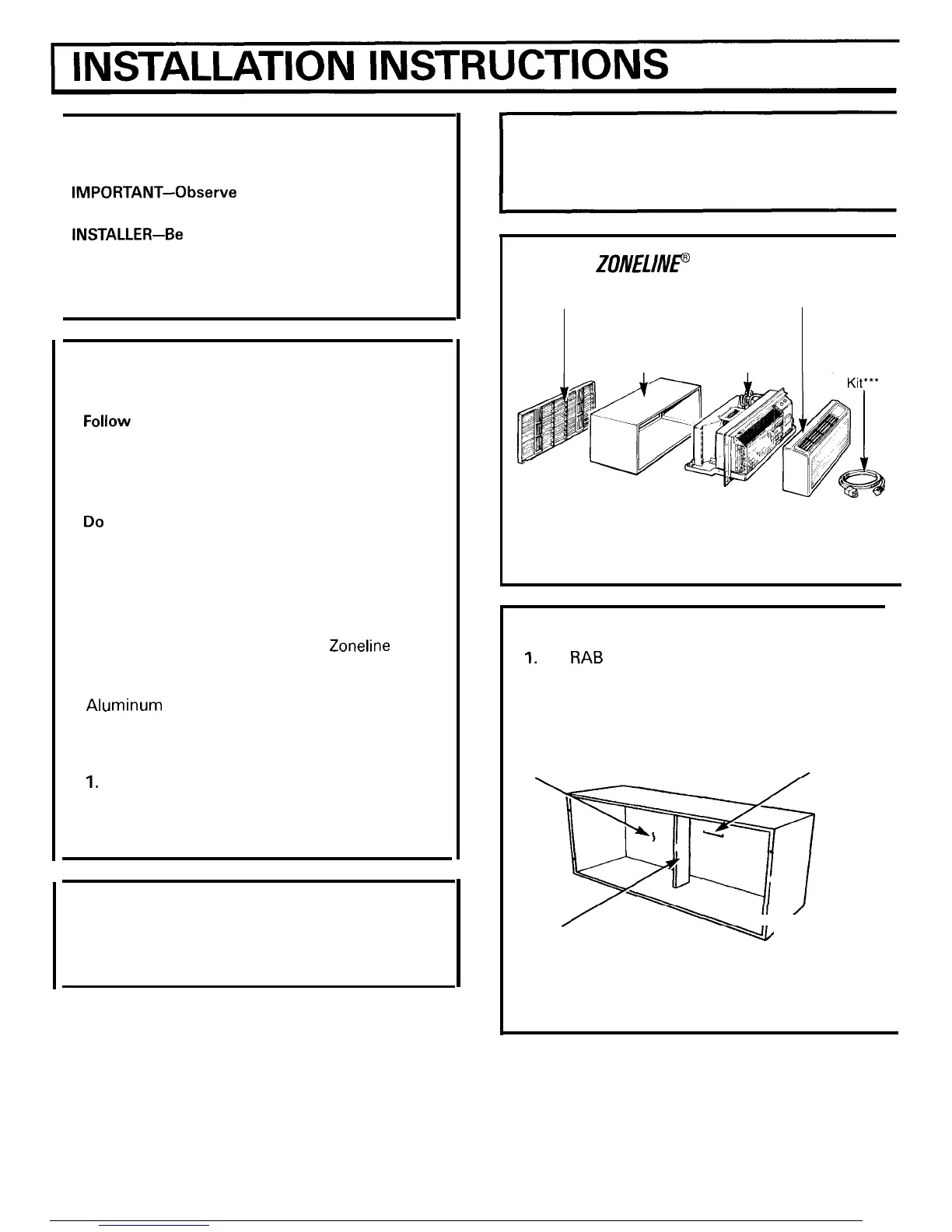

BEFORE YOU BEGIN
Read these instructions completely and carefully.
lMPORTANT–Observe
all governing codes and
ordinances.
lNSTALLER—Be
sure to leave these instructions
with the Consumer.
CONSUMER—Keep these instructions for future
reference.
ELECTRICAL REQUIREMENTS
FOR PERSONAL SAFETY:
FOIIOW
National Electrical Code (NEC) and
local codes, ordinances and regulations. All
wiring — including installation of receptacle,
must be in accordance with these codes.
This unit must be properly grounded.
Do
not use an extension cord with this unit.
NEC
requires permanent connection for
installations over 250 volts.
NEC requires units controlled by NEC Class 2
low voltage remote controls to be permanently
connected.
protective devices
acceptable for
Zoneline
installations are specified on the nameplate of
each.
Aluminum
building wiring may pose special
problems—consult a qualified electrician.
Disconnect power to the air conditioner before
servicing by:
1.
Removing the power cord from the wall
receptacle, if it has one.
2. Removing the branch circuit fuses or turning
the circuit breakers off at the panel.
TOOLS NEEDED
Phillips screwdriver
Flat Blade screwdriver
CAUTION
Before starting the installation, the power to
the direct connect wiring should be OFF.
THE GE
ZONELIN~
Exterior Grille/Louver**
Room Cabinet*
Wall Case
Chassis
Power
Connection
* Shipped with the chassis
** Check essential elements list on chassis
*** Line cord connection shown only as example
WALL CASE & GRILLE
1.
The
RAB
70 or 77 Wall Case must be properly
installed per instructions packed with the case.
2. Remove the corrugated stiffener and the
outdoor protective panel. Use the slit in the
outdoor panel as a handhold and push out.
Protective
Panel
Slit
/
/
Stiffener
H/
3. Install the Exterior Grille from the room side
per instruction packed with the grille.
6
