10. Appendix
10.1 SuggestedCircuitbreaker/fuses
APV 1700-2M-TL APV 2300-2M-TL APV 3100-2M-TL APV 4400-2M-TL APV 5200-2M-TL
DC Load Circuit breaker 500V / 10A 500V / 16A 500V / 16A 600V / 25A 600V / 25A
AC Load Circuit breaker 400V / 10A 400V / 16A 400V / 16A 400V / 32A 400V / 32A

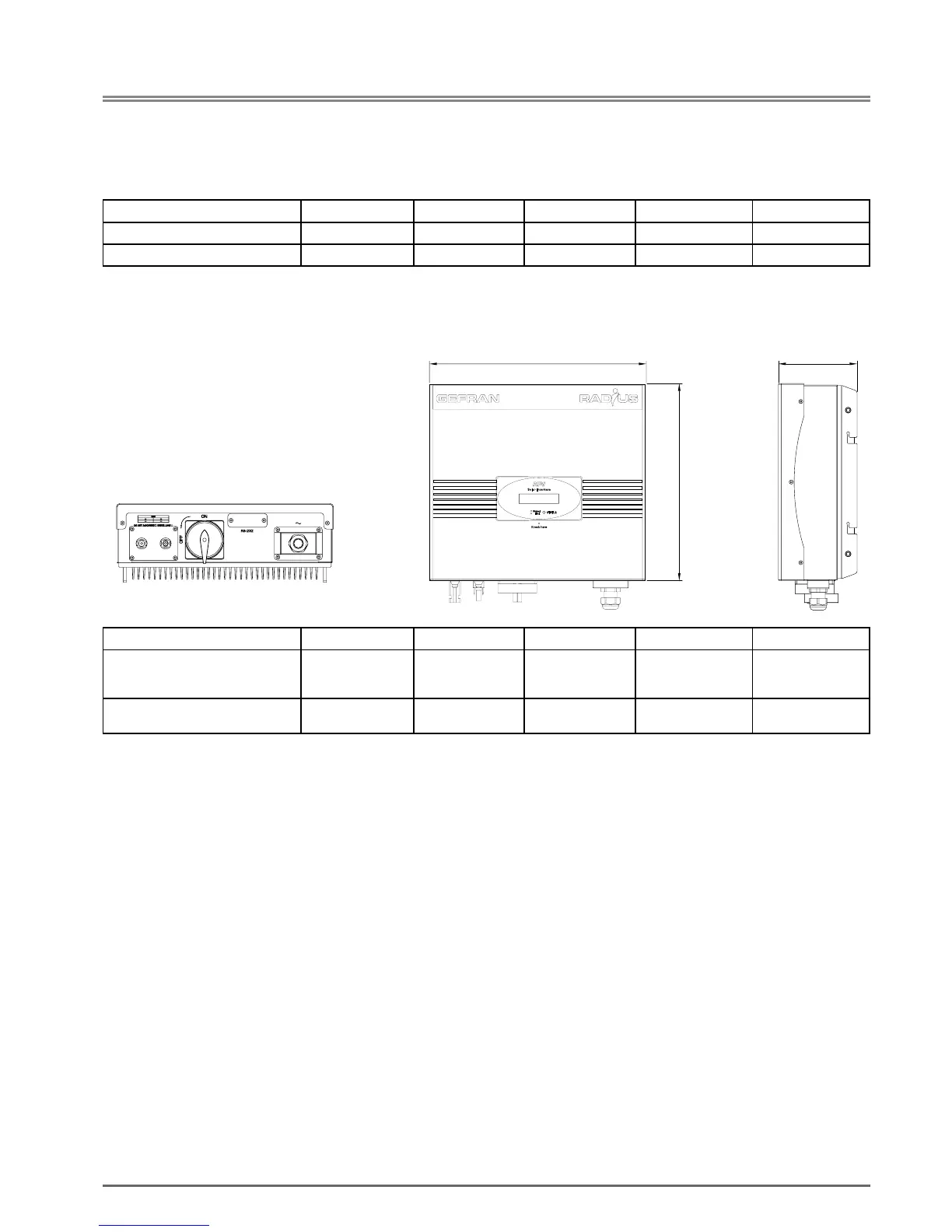

10.2 Dimensionsandweight
W
H
D
APV 1700-2M-TL APV 2300-2M-TL APV 3100-2M-TL APV 4400-2M-TL APV 5200-2M-TL
Dimensions:
Width x Height x Depth
mm [inches]
362 x 329 x 131.5
[14.25 x 12.95 x 5.17]
362 x 329 x 131.5
[14.25 x 12.95 x 5.17]
362 x 329 x 131.5
[14.25 x 12.95 x 5.17]
406 x 406 x 191.5
[15.98 x 15.98 x 7.54]
406 x 406 x 191.5
[15.98 x 15.98 x 7.54]
Weight
kg [lbs]
11.5 [23.3] 11.7 [25.8] 12.2 [26.9] 21 [46.3] 21 [46.3]
