126
MAINTENANCE
When Required

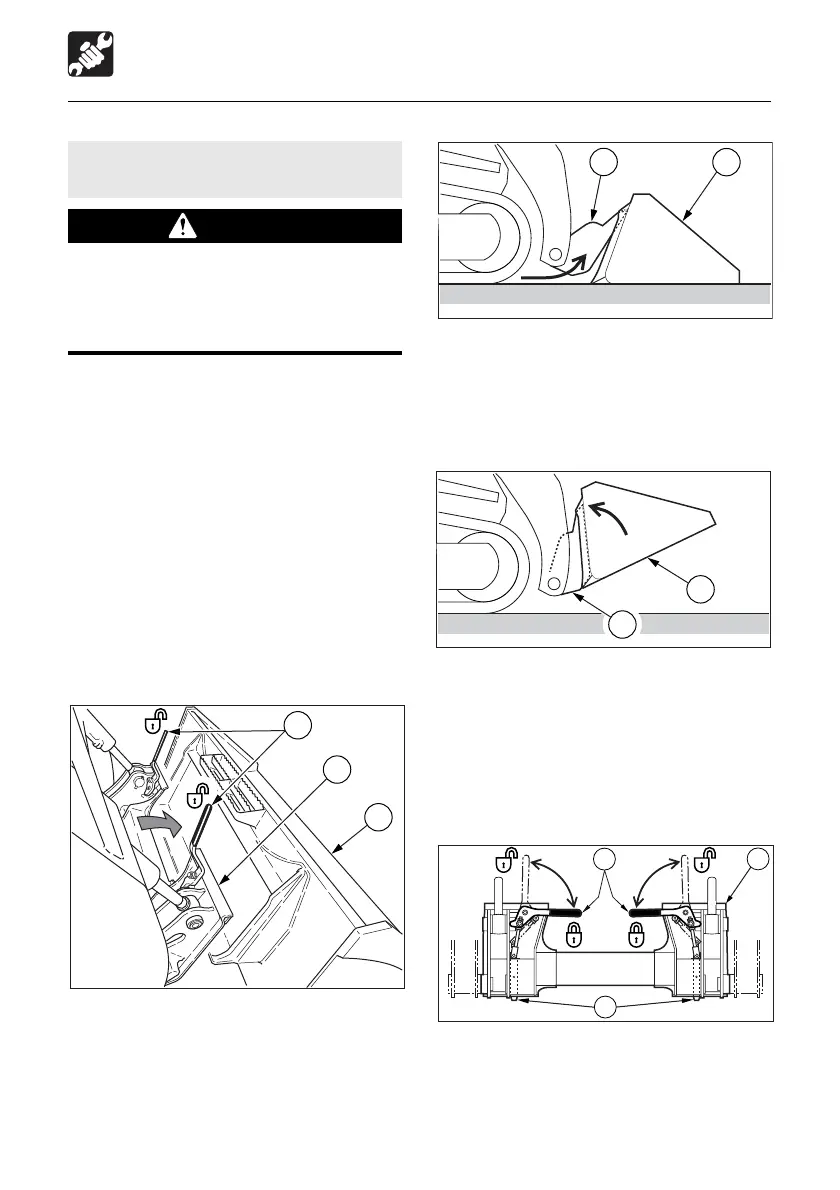

Replacing the Bucket or
Attachment
WARNING
Before performing maintenance or
repairs under the machine, set all working
equipment against the ground or in the
lowermost position.
Installation
IMPORTANT: Read the manufacturer’s
instructions manual for attachments not
included in this manual. DO NOT use
attachments that are not approved by
Gehl.
IMPORTANT: Before installing a bucket
or attachment, make sure the mounting
area of the bucket (1) and the quick
attachment (3) are clean.
1. Make sure the quick attachment (3) lock
levers (2) are in the unlocked position.
2. While sitting in the operator’s seat with the
safety bar down, start the engine and tilt
the quick attachment (3) forward.
3. Move the machine slowly forward and
raise the loader lift arms. The wedge
shaped top edge of the quick attachment
(3) must engage in the upper mounts of
the bucket or attachment.
4. Roll the quick attachment (3) back while
lifting the bucket or attachment off the
ground. The quick attachment (3) will slide
into position.
5. Lower the bucket or attachment until it is
25 to 50 mm (1 to 2 in.) off the ground.
6. Stop the engine and raise the safety bar.
7. Push both quick attachment (3) lock levers
(2) down securing the bucket or
attachment in position.
T9G009
1
3
2
1
3
T9G010
T9G011
1
3
T9G012
4
2
3
To Next Page
