Seat and Seat Belt
Seat
WARNING
Adjust, secure and latch the operator’s
seat.

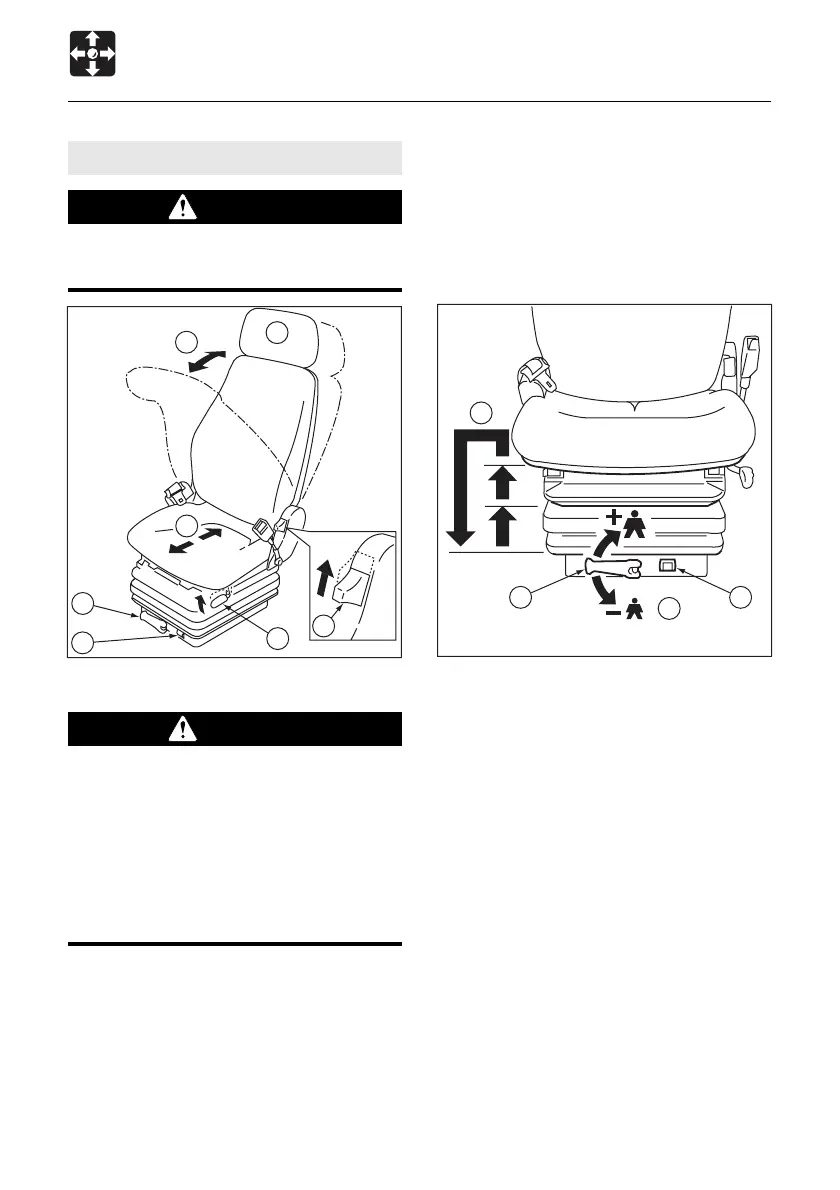

(A) Back angle adjustment
WARNING
¡¡
¡¡
¡Do not set the seat back to its
maximum reclining position and slide
the seat backwards at the same time.
Doing so may break the rear window
glass, resulting in injury.
¡¡
¡¡
¡Be careful not to allow the force of the
spring to bring the seat back sharply
forward.
1. Raising your torso, sitting down firmly in
the seat.
2. Pulling lever (1) allows you to use the
pressure of the springs in the seat pressing
against your back to adjust the reclining
angle of the seat back. Release the lever
(1) at the desired angle and the seat back
will be locked in that position.
(B) Fore-and-aft adjustment
1. Pull on lever (2) and slide the seat backward
or forward to bring it to the optimum position
for operating the machine.
2. Release the lever (2) at the desired position
and the seat will be locked there.
Adjustment stroke: 15 steps,150 mm (5.9 in.)
(C) Weight adjustment
1. Turn handle (3) until the indicator (4) will
show the operator’s weight .
May be set to any value from 10 kg steps,
50 to 130 kg (110 to 287 lbs.)
(D) Vertical adjustment
Upward
1. Lift the seat to first or second position click-
stop.
Downward
1. First lift the seat to highest position, then
the seat can be lowered to lowest position.
(E) Headrest adjustment (Option)
The position of the headrest can be adjusted
in the vertical and front/back directions.
1. To adjust in the vertical direction, grasp
the headrest with both hands and move it
upwards or downwards.
2. To adjust in the front/back direction, grasp
the headrest with hands and move it
forwards or backwards.
B
A
2
3
4
1
G4B006
E
3
4
G4B007
C
D
