913218/CP0307 28 PRINTED IN U.S.A.

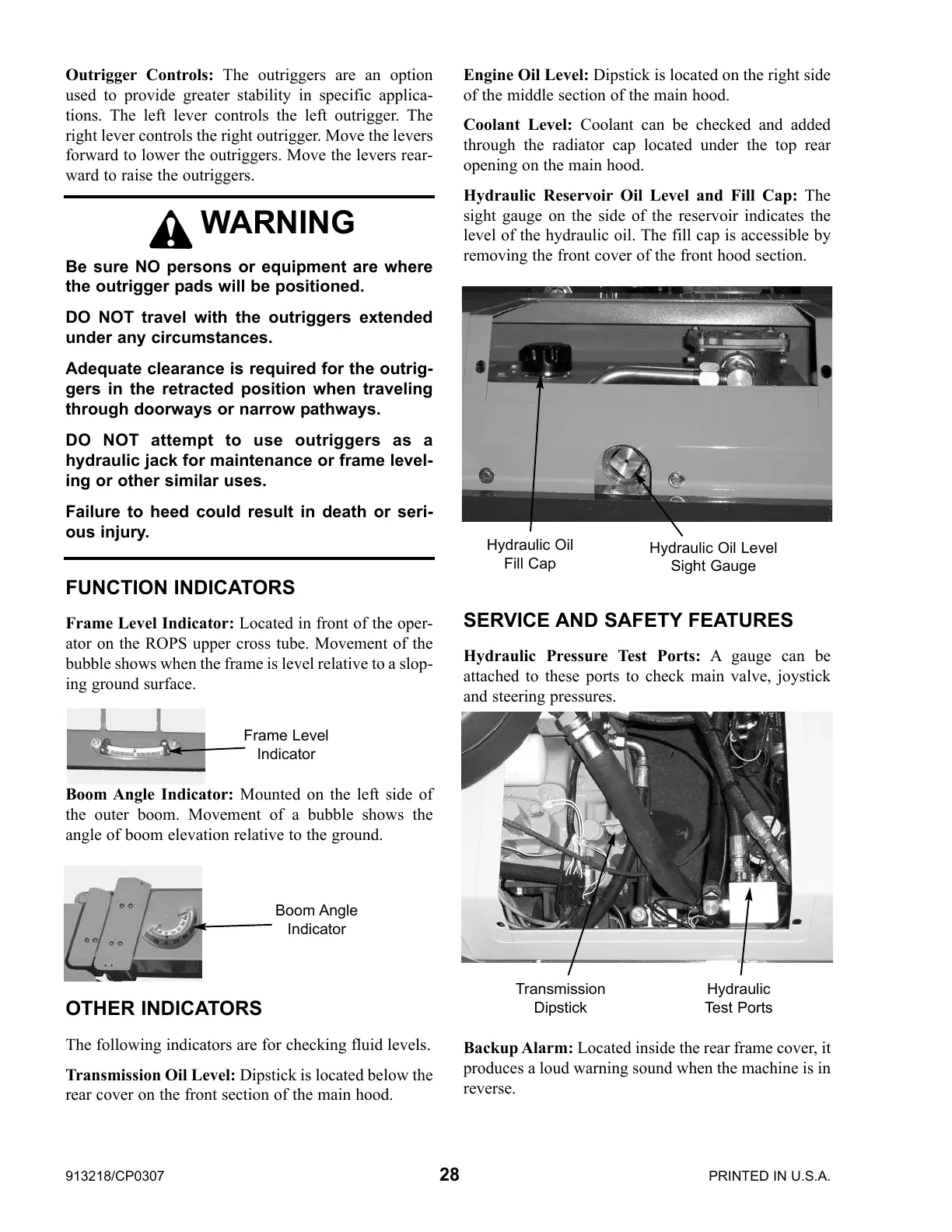

Outrigger Controls: The outriggers are an option
used to provide greater stability in specific applica-
tions. The left lever controls the left outrigger. The
right lever controls the right outrigger. Move the levers
forward to lower the outriggers. Move the levers rear-
ward to raise the outriggers.
FUNCTION INDICATORS
Frame Level Indicator: Located in front of the oper-
ator on the ROPS upper cross tube. Movement of the
bubble shows when the frame is level relative to a slop-
ing ground surface.
Boom Angle Indicator: Mounted on the left side of
the outer boom. Movement of a bubble shows the
angle of boom elevation relative to the ground.
OTHER INDICATORS
The following indicators are for checking fluid levels.
Transmission Oil Level: Dipstick is located below the
rear cover on the front section of the main hood.
Engine Oil Level: Dipstick is located on the right side
of the middle section of the main hood.
Coolant Level: Coolant can be checked and added
through the radiator cap located under the top rear
opening on the main hood.
Hydraulic Reservoir Oil Level and Fill Cap: The
sight gauge on the side of the reservoir indicates the
level of the hydraulic oil. The fill cap is accessible by
removing the front cover of the front hood section.
SERVICE AND SAFETY FEATURES
Hydraulic Pressure Test Ports: A gauge can be
attached to these ports to check main valve, joystick
and steering pressures.
Backup Alarm: Located inside the rear frame cover, it
produces a loud warning sound when the machine is in
reverse.
Boom Angle
Indicator
Frame Level
Indicator
Hydraulic
Test Ports
Transmission
Dipstick
Hydraulic Oil
Fill Cap
Hydraulic Oil Level
Sight Gauge
WARNING
Be sure NO persons or equipment are where
the outrigger pads will be positioned.
DO NOT travel with the outriggers extended
under any circumstances.
Adequate clearance is required for the outrig-
gers in the retracted position when traveling
through doorways or narrow pathways.
DO NOT attempt to use outriggers as a
hydraulic jack for maintenance or frame level-
ing or other similar uses.
Failure to heed could result in death or seri-
ous injury.
