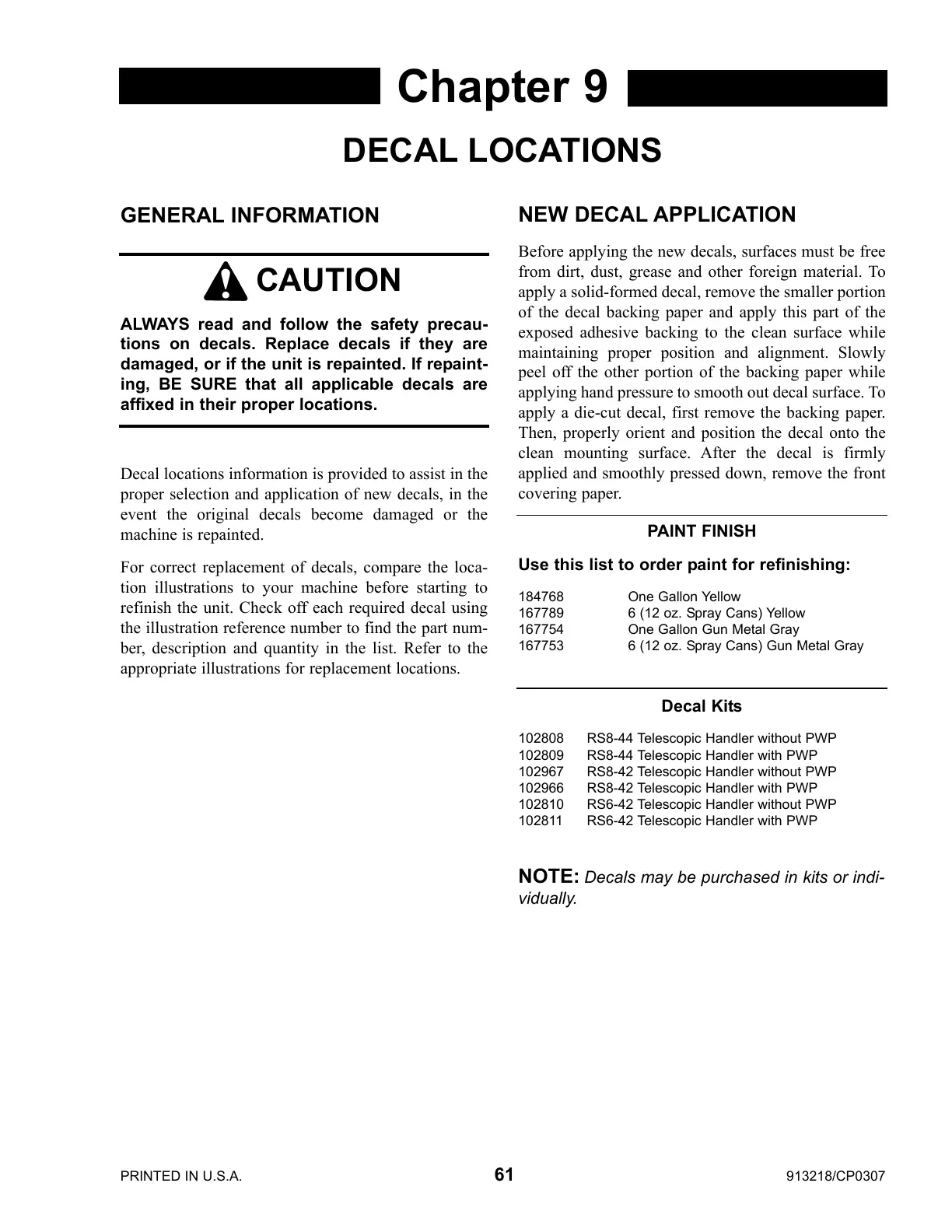

GENERAL INFORMATION
Decal locations information is provided to assist in the
proper selection and application of new decals, in the
event the original decals become damaged or the
machine is repainted.
For correct replacement of decals, compare the loca-
tion illustrations to your machine before starting to
refinish the unit. Check off each required decal using
the illustration reference number to find the part num-
ber, description and quantity in the list. Refer to the
appropriate illustrations for replacement locations.
NEW DECAL APPLICATION
Before applying the new decals, surfaces must be free
from dirt, dust, grease and other foreign material. To
apply a solid-formed decal, remove the smaller portion
of the decal backing paper and apply this part of the
exposed adhesive backing to the clean surface while
maintaining proper position and alignment. Slowly
peel off the other portion of the backing paper while
applying hand pressure to smooth out decal surface. To
apply a die-cut decal, first remove the backing paper.
Then, properly orient and position the decal onto the
clean mounting surface. After the decal is firmly
applied and smoothly pressed down, remove the front
covering paper.
PAINT FINISH
Use this list to order paint for refinishing:
184768 One Gallon Yellow
167789 6 (12 oz. Spray Cans) Yellow
167754 One Gallon Gun Metal Gray
167753 6 (12 oz. Spray Cans) Gun Metal Gray
Decal Kits
102808 RS8-44 Telescopic Handler without PWP
102809 RS8-44 Telescopic Handler with PWP
102967 RS8-42 Telescopic Handler without PWP
102966 RS8-42 Telescopic Handler with PWP
102810 RS6-42 Telescopic Handler without PWP
102811 RS6-42 Telescopic Handler with PWP
NOTE: Decals may be purchased in kits or indi-
vidually.
