11

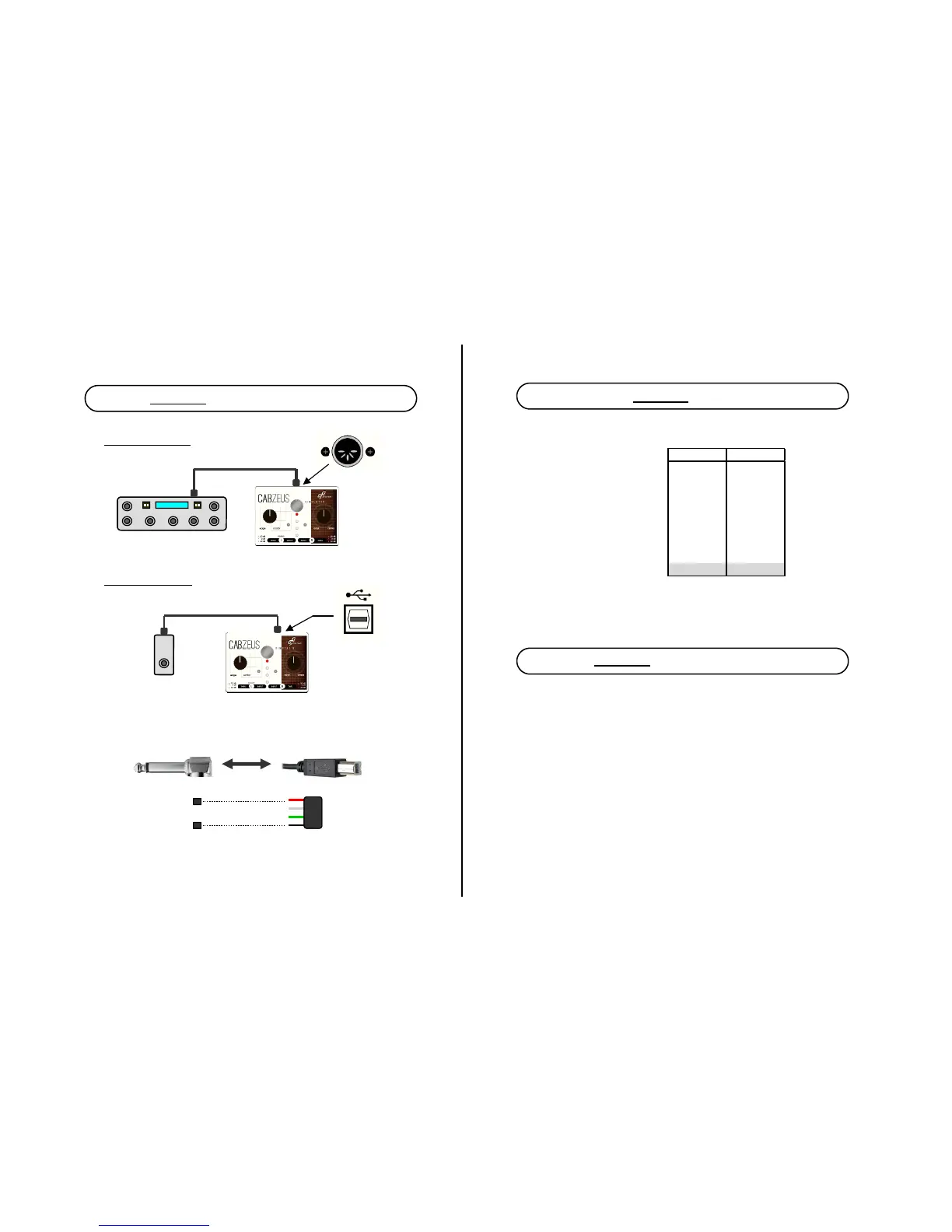

Chapter 4 - Remote Preset Change
There are two ways to perform remote preset change :
1. Using MIDI Controller.
2. Using External Switch
.
MIDI controller
MIDI (5-pin DIN) cable
MIDI In
external switch
(momentary, normally-open)
TS-to-USB Type-B
USB Port
This method requires a specially-made cable with a TS (Tip - Sleeve) jack on one
end, and USB Type-B connector at the other end.
TS jack
USB Type-B
Tip
Sleeve
Pin-1 (red)
Pin-4 (black)
12
Chapter 5 - M I D I
You can use any standard MIDI controller capable of sending Program
Change (PC) messages to accomplish remote preset change.
Chapter 6 - Updating Firmware
You can use CabsLab to perform firmware updates.
1. Download the latest firmware updates at :
www.gfisystem.com/cabslab.html
2. Remove power from the pedal.
3. While holding down the middle knob (preset-select knob), apply power to
the pedal. Keep holding the knob down while the pedal goes through the
normal power-up sequence, then release when preset-1 and preset-4
LEDs light up.
4. Connect the pedal to your computer’s USB port, then open the CabsLab
software and follow the instruction on the screen.
PC#
Preset-1
0
Preset-2
1
Preset-3
2
Preset-4
3
Preset-5
4
Preset-6
5
Preset-7
6
Preset-8
7
Bypass
8
MIDI
Implementation Chart
MIDI Channel
Cabzeus is pre-programmed to use MIDI channel 16. You can use the
CabsLab software to change the channel number to any number from 1
