SC230
UK
SC230
UK
12
13
FUNCTION PROGRAMMING (DIP SWITCH-SW1)
The settings are stored during the rest phase (gate closed).
! DIP 1 and DIP 2 both OFF: Step-by-step with stop
! DIP 3 OFF: Pre-flashing disabled
! DIP 4 OFF: Safety device test disabled
! DIP 5 OFF: Opening photocell disabled
! DIP 6 OFF: Automatic closing disabled
! DIP 7 OFF: Deceleration disabled
! DIP 8 OFF: Fast closing disabled
! DIP 9 OFF: Motor rpm sensor disabled
! DIP 10 OFF: STOP input enabled
DEFAULT SETTINGS
TRIMMER ADJUSTMENT
! The trimmers TR2, TR3, TR4, TR5 can be adjusted also during gate movement and hence the effect
immediately be checked.
! The trimmer TR1 is stored only during the rest phase (gate closed).
•TRIMMER TR1 adjusted to minimum
•TRIMMERS TR2, TR3 adjusted to half position
•TRIMMERS TR4, TR5 adjusted to maximum

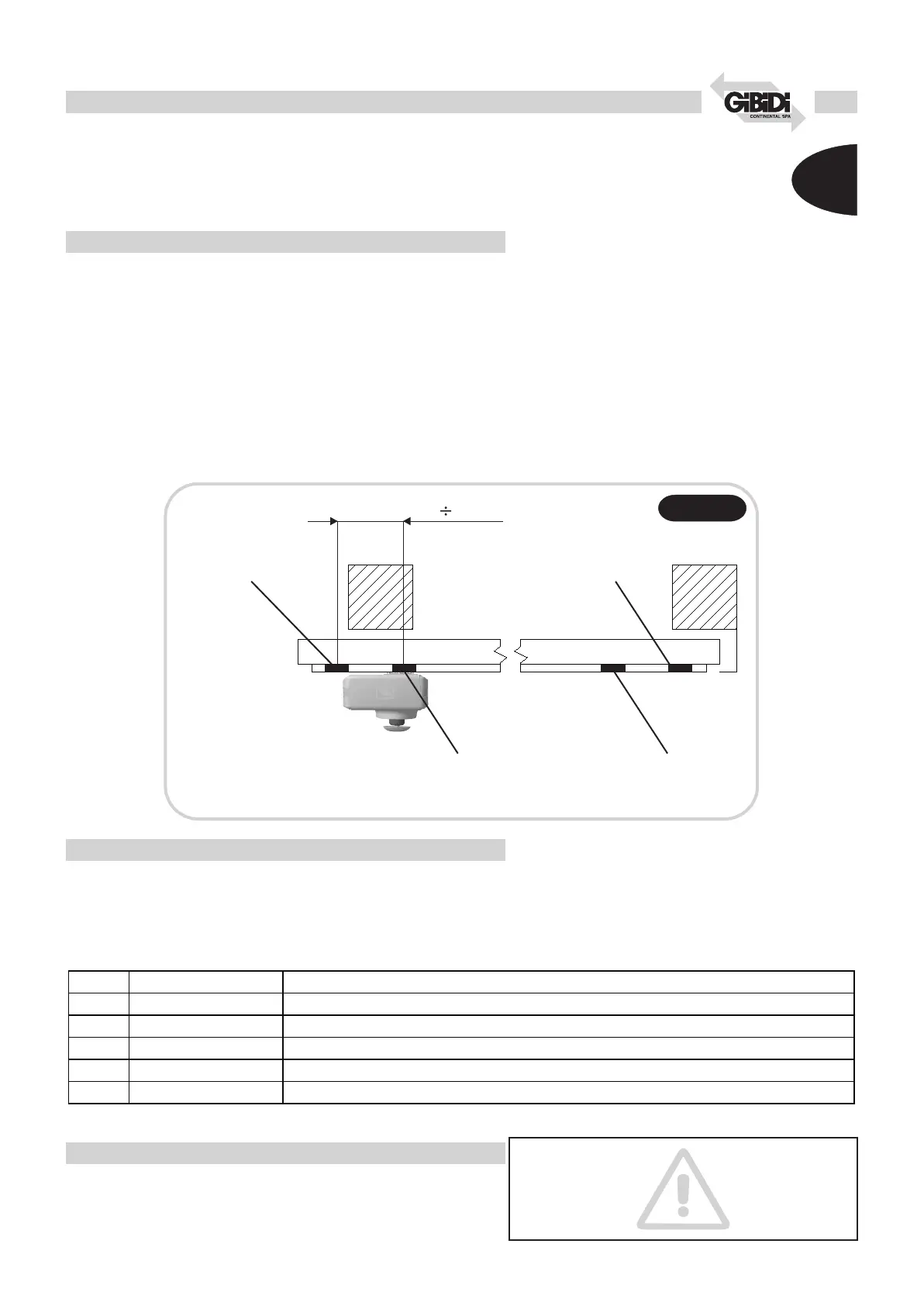

Fig.2Fig.2
DEFAULT SETTINGS
Closing limit switch
motor stop
Limit switch slowing
down in closing
Limit switch slowing
down in opening
Opening limit switch
motor stop
500 600mm
DIP Status Function Description
DIP 1
DIP 2
OFF
OFF
STEP-BY-STEP WITH STOP
I Start pulse : OPENS
II Start pulse : STOPS (will not reclose automatically)
III Start pulse : CLOSES
IV Start pulse : OPENS
DIP 1
DIP 2
ON
OFF
STEP-BY-STEP
I Start pulse : OPENS
II Start pulse : CLOSES
III Start pulse : OPENS
DIP 1
DIP 2
OFF
ON
AUTOMATIC
During opening it does not receive other Start commands after the first one; during Pause
subsequent Start commands reload the pause time
I Start pulse : OPENS
Subsequent Start pulses : Uninfluential
Pause from opening limit switch
Start pulse during pause : Reloads the pause time (if DIP 6 ON)
Or CLOSES (if DIP 6 OFF)
Subsequent Start pulse : OPENS
DIP 1
DIP 2
ON
ON
DEAD MAN
If Start button is held down : OPENS
If Pedestrian button is held down : CLOSES
DIP 3 ON Enables pre-flashing of 2 seconds before motor activation during opening and closing
DIP3 OFF
PRE-FLASHING
Disables pre-flashing
DIP 4 ON
Enables the safety device TEST before activating the opening and closing cycle.
The cycle can only start if the devices work perfectly, if not, three prolonged flashes
indicate the fault.
DIP 4 OFF
SAFETY DEVICE TEST
Disables the safety device test.
DIP 5 ON
When the photocell is intercepted during both opening and closing, the gate motion is
locked until the photocell is freed. Subsequently, there is always an opening phase.
DIP 5 OFF
PHOTOCELL DURING OPENING
Disables the photocell function during opening.
DIP 6 ON
Enables automatic closing after the pause time adjustable with the trimmer TR1 PAUSE
between 2 and 215 seconds.
AUTOMATIC CLOSING
Disables automatic closing.
DIP 7 ON
Enables deceleration during both opening and closing when the respective limit switch is
intercepted. The deceleration speed is adjusted with the trimmer TR3 SLOW. This function
provides for use of 4 magnets (see drawing 2)
DIP 7 OFF
DECELERATION
Disables the deceleration function. Only 2 magnets are required (see drawing 2)
DIP 8 ON Reduces the pause time to 3 seconds after intervention of the photocells.
DIP 8 OFF
FAST CLOSING
Disables the fast closing function.
DIP 9 ON
Enables operation of the motor rpm sensor. After a reduction of the number of motor
revolutions (e.g. for an obstacle) the sensor intervenes locking the motion and inverting the
direction for 2 seconds in order to free the obstacle. At the next Start pulse the motion
restarts in the obstacle freeing direction.
DIP 9 OFF
MOTOR RPM SENSOR
Disables the motor rpm sensor
DIP 10 ON Disables the STOP input
DIP 10 OFF
STOP BUTTON DISABLE
STOP input enabled
Trimmers Function Description
TR1 PAUSE Adjusts the PAUSE TIME from 2 to 215 seconds. The value is increased by turning the trimmer clockwise.
TR2 FORCE Adjusts the motor FORCE level. The force is increased by turning the trimmer clockwise.
TR3 SLOW Adjusts the DECELERATION level. Turning clockwise the gate speed/force is increased.
TR4 AMP.FORCE Adjust the motor rpm sensor sensitivity during non-decelerated motion.Turn the trimmer clockwise to reduce sensitivity
TR5 AMP. SLOW Adjust the motor rpm sensor sensitivity during decelerated motion. Turn the trimmer clockwise to reduce sensitivity.
WARNING: With some motorizations, in function of gate's
characteristics, it could happen that with max.
deceleration the motor vibrates a little. In this case it is
necessary to adjust opportunely the deceleration's
trimmer avoiding to position it at the max.
