Gigabyte GA-8I945GMF-RH User Manual

GA-8I945GMF-RH Motherboard - 22 -
English

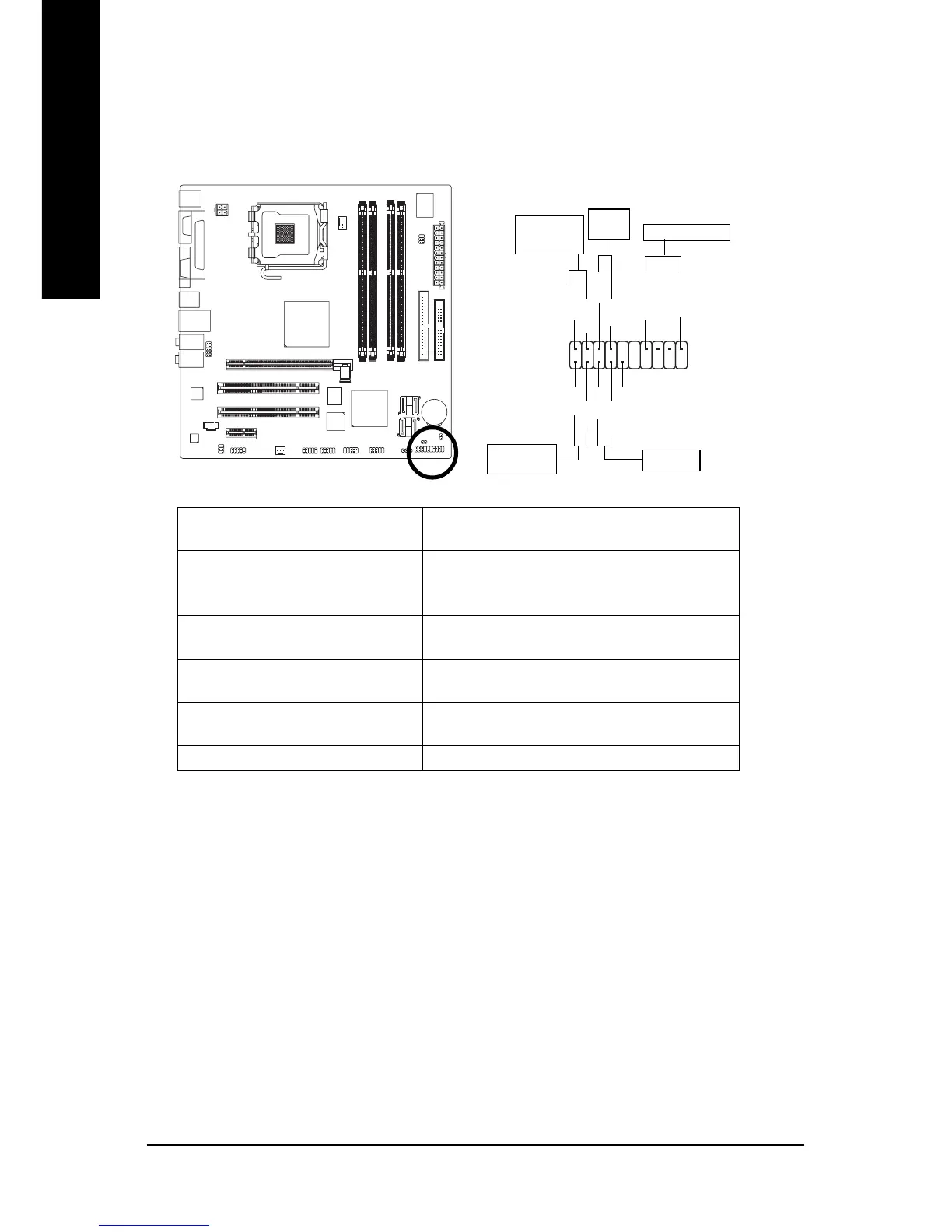

8) F_PANEL (Front Panel Jumper)
Please connect the power LED, PC speaker, reset switch and power switch etc of your chassis
front panel to the F_PANEL connector according to the pin assignment below.
1
2
19
20
HD-
HD+
RES+
RES-
NC
SPEAK-
MSG-
MSG+
PW-
PW+
SPEAK+
Speaker Connector
IDE Hard Disk
Active LED
Message LED/
Power/
Sleep LED
Power
Switch
Reset Switch
HD (IDE Hard Disk Active LED) Pin 1: LED anode(+)
Pin 2: LED cathode(-)
SPEAK (Speaker Connector) Pin 1: Power
Pin 2- Pin 3: NC
Pin 4: Data(-)
RES (Reset Switch) Open: Normal
Close: Reset Hardware System
PW (Power Switch) Open: Normal
Close: Power On/Off
MSG(Message LED/Power/Sleep LED) Pin 1: LED anode(+)
Pin 2: LED cathode(-)
NC NC

Gigabyte GA-8I945GMF-RH Specifications

General

Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	2
Number of COM connectors	1
Floppy disk drive connector	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power source type	ATX
Motherboard form factor	micro ATX
Networking features	Gigabit Ethernet

Weight and Dimensions

Width	244 mm
