Gigabyte GA-8I945GMF-RH User Manual

- 7 -

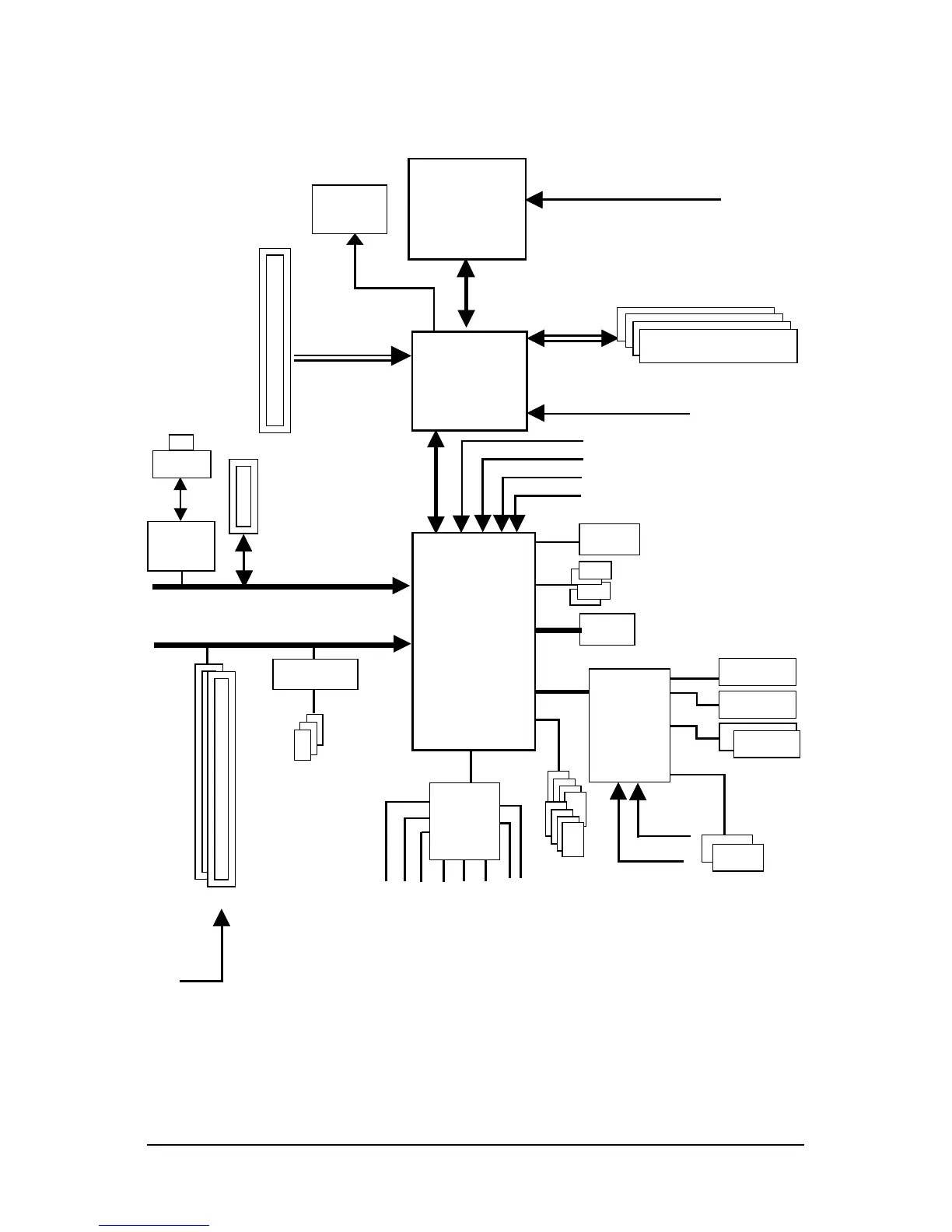

TSB43AB23
3 IEEE1394
Block Diagram
LGA775
Processor
CPUCLK+/-(266/200/133MHz)
VGA
BIOS
PCI Express x16
33MHz
14.318MHz
DDRII 667
(Note)
/533/400MHz DIMM
Host
Interface
Intel
945G
GMCH
Dual Channel Memory
GMCHCLK (266/200/133MHz)
66MHz
48MHz
PCI Bus
4 Serial ATAII
IT 8712F
ATA33/66/100
IDE Channels
LPT Port
COM Ports
Floppy
PS/2 KB/Mouse
24MHz
33MHz
8 USB
Ports
Intel
ICH7
CODEC
Line-Out
MIC
Line-In
SPDIF In
SPDIF Out
Side Speaker Out
Center/Subwoofer Speaker Out
Surround Speaker Out
2 PCI
PCI-ECLK
(100MHz)
1 PCI Express x 1 Port
PCI-ECLK(100MHz)
PCI Express Bus
PCICLK
(33MHz)
Marvell
8053
(Note) To use a DDRII 667 memory module on the motherboard, you must install an 800/1066MHz
FSBprocessor .
RJ45

Gigabyte GA-8I945GMF-RH Specifications

General

Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	2
Number of COM connectors	1
Floppy disk drive connector	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power source type	ATX
Motherboard form factor	micro ATX
Networking features	Gigabit Ethernet

Weight and Dimensions

Width	244 mm
