4-1-1 EasyTune 5 Introduction
EasyTune 5 presents the most convenient Windows based system performance enhancement and
manageability utility. Featuring several powerful yet easy to use tools such as 1) Overclocking for
enhancing system performance, 2) C.I.A. and M.I.B. for special enhancement for CPU and Memory,
3) Smart-Fan control for managing fan speed control of both CPU cooling fan and North-Bridge Chipset
cooling fan, 4) PC health for monitoring system status.
(Note)

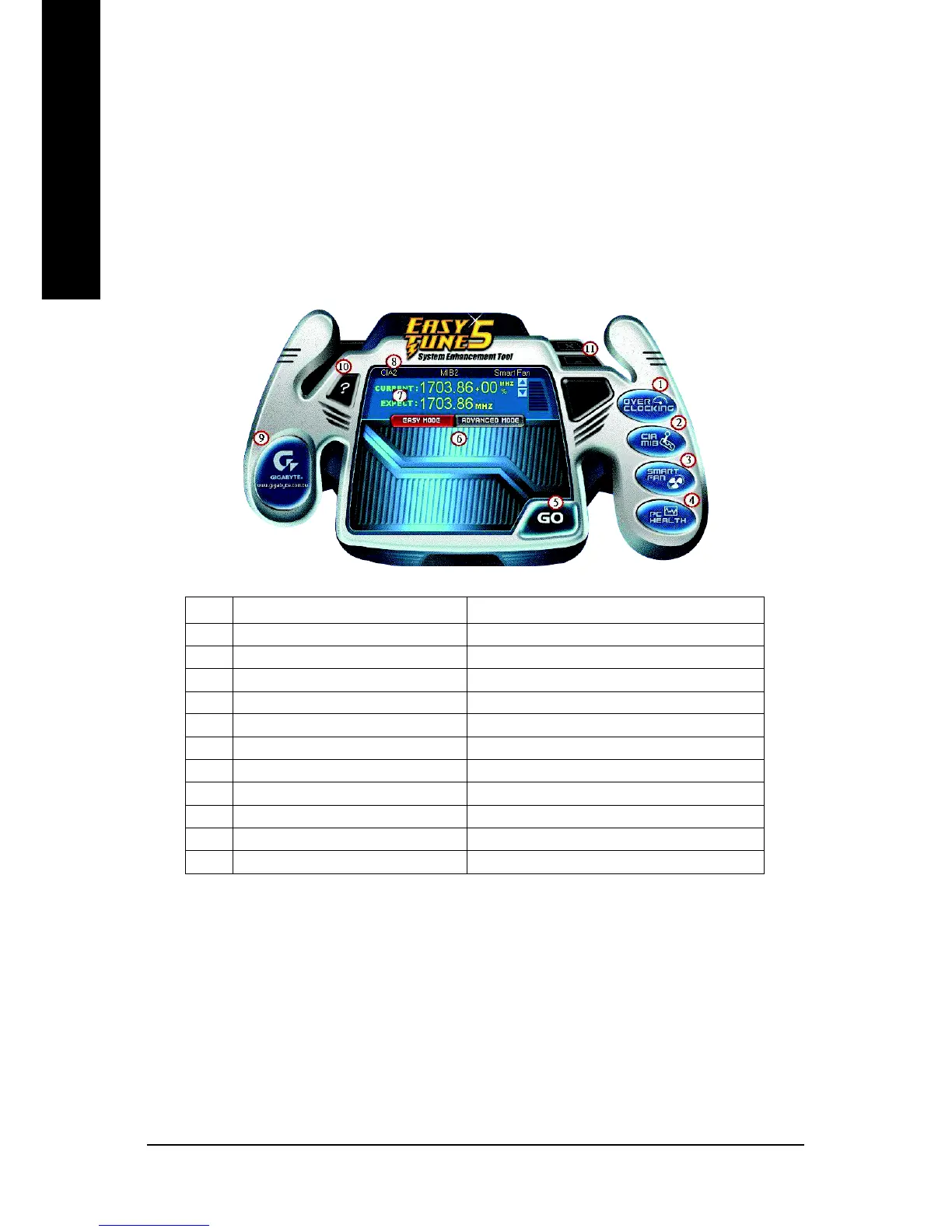

User Interface Overview
(Note) EasyTune 5 functions may vary depending on different motherboards.
Button / Display Description
1. Overclocking Enters the Overclocking setting page
2. C.I.A./C.I.A.2 and M.I.B./M.I.B.2 Enters the C.I.A./2 and M.I.B./2 setting page
3. Smart-Fan Enters the Smart-Fan setting page
4. PC Health Enters the PC Health setting page
5. GO Confirmation and Execution button
6. "Easy Mode" & "Advance Mode" Toggles between Easy and Advance Mode
7. Display screen Display panel of CPU frequency
8. Function display LEDs Shows the current functions status
9. GIGABYTE Logo Log on to GIGABYTE website
10. Help button Display EasyTune
TM
5 Help file
11. Exit or Minimize button Quit or Minimize EasyTune
TM
5 software

Gigabyte GA-8I945GMF-RH Specifications

General

Number of memory slots	4
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	2
Number of COM connectors	1
Floppy disk drive connector	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power source type	ATX
Motherboard form factor	micro ATX
Networking features	Gigabit Ethernet

Weight and Dimensions

Width	244 mm
