Gigabyte GA-AX370-Gaming K7 User Manual

- 4 -

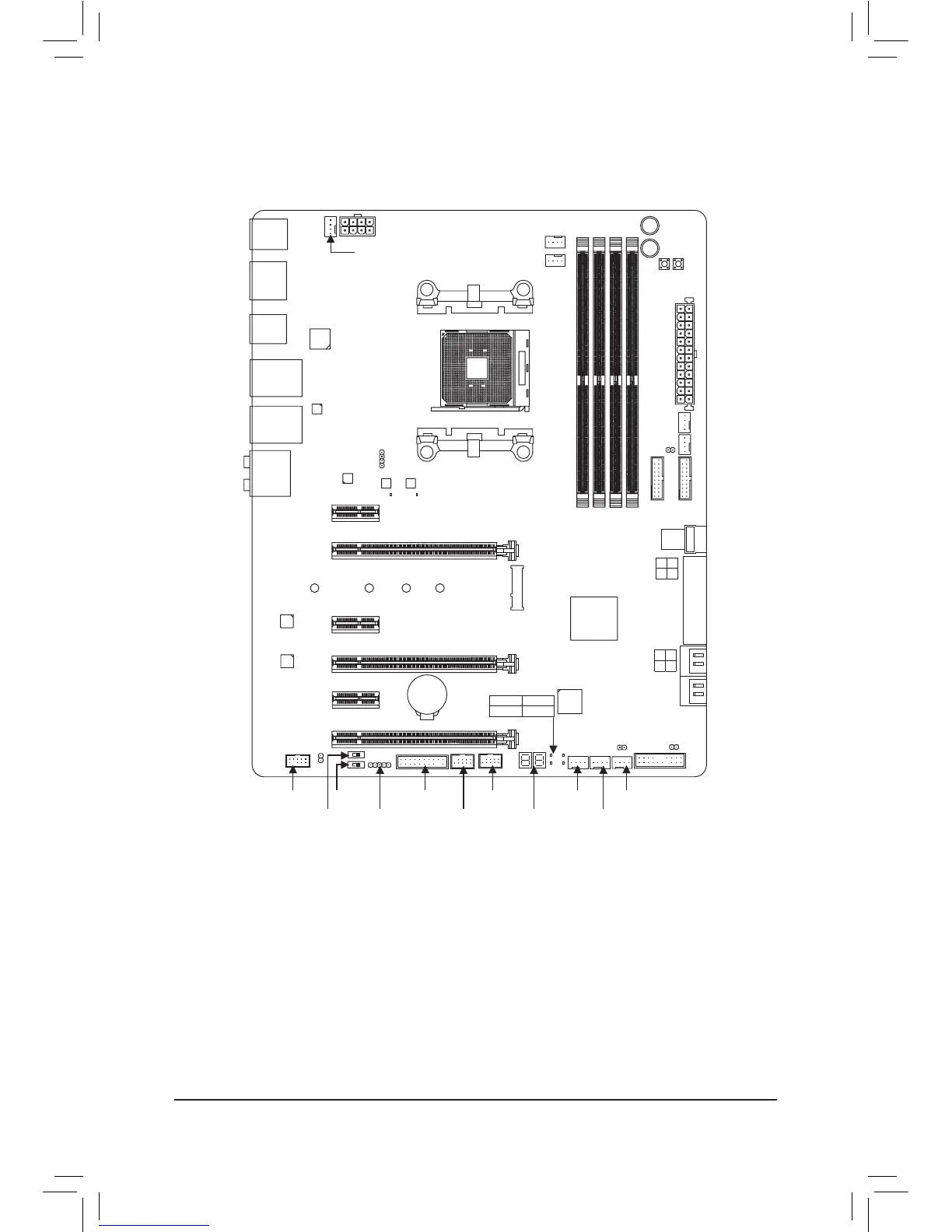

GA-AX370-Gaming K7 Motherboard Layout
Box Contents
5 GA-AX370-Gaming K7 motherboard 5 I/O Shield
5 Motherboard driver disk 5 One GC-SLI2P bridge connector
5 User's Manual 5 OneRGB(RGBW)LEDstripextensioncable
5 Quick Installation Guide 5 One G Connector
5 Four SATA cables 5 Two thermistor cables
5 Two Velcro Cable Ties
Socket AM4
KB_MS_USB30
CPU_FAN
SYS_FAN1
ATX
AUDIO
BAT
ATX_12V
CODEC
CLR_CMOS
M_BIOS
PCIEX16
PCIEX1_2
iTE
®
Super I/O
GA-AX370-Gaming K7
F_PANEL
F_USB1F_AUDIO
SPDIF_O
PCIEX1_1
USB30_LAN2
AMD X370
F_USB2
TPM
BIOS_SW
LED_C1
R_USB30
HDMI
TYPEC
USB31
USB31_LAN1
CPU_OPT
CMOS_SW
RST_SW
OC
PW_SW
DDR4_2 DDR4_1 DDR4_4 DDR4_3
ASMedia
®
USB 3.1 Gen 2
Controller
Intel
®
GbE LAN
RivetNetworks
Killer
™
E2500 LAN
SYS_FAN2
SYS_FAN5_PUMP
EC_TEMP1
F_USB30_2
F_USB30_1
U2_32G
SATAEXPRESS
SATA3
7 6 5 4
SATA3
2 0 3 1
EC_TEMP2
SYS_FAN6_PUMP
SYS_FAN3
SYS_FAN4
CPU DRAM
VGA BOOT
Debug LED
(Note)
LED_C2
SB
PCIEX8
PCIEX1_3
PCIEX4
CODEC
M2F_32G
80 60 42
110
B_BIOS
BBIOS_LED
MBIOS_LED
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
(Note) Fordebugcodeinformation,pleaserefertoChapter3.

Gigabyte GA-AX370-Gaming K7 Specifications

General

Form Factor	ATX
Chipset	AMD X370
CPU Socket	AM4
Memory Type	DDR4
Memory Slots	4
Maximum Memory	64 GB
PCIe 2.0 x1 Slots	3
SATA 6Gb/s Ports	6
M.2 Slots	1
USB 3.1 Gen 2 Type-A Ports	1
USB 3.1 Gen 2 Type-C Ports	1
USB 3.1 Gen 1 Ports (Rear)	4
Audio	Realtek ALC1220
RAID Support	0, 1, 10
Memory Speed	2133/2400/2667/2933/3200 MHz (OC)
Multi-GPU Support	2-Way NVIDIA SLI
LAN	Intel GbE LAN
PCIe 3.0 x16 Slots	2 (x16/x0 or x8/x8 mode), 1 (x4 mode)
