- 7 -

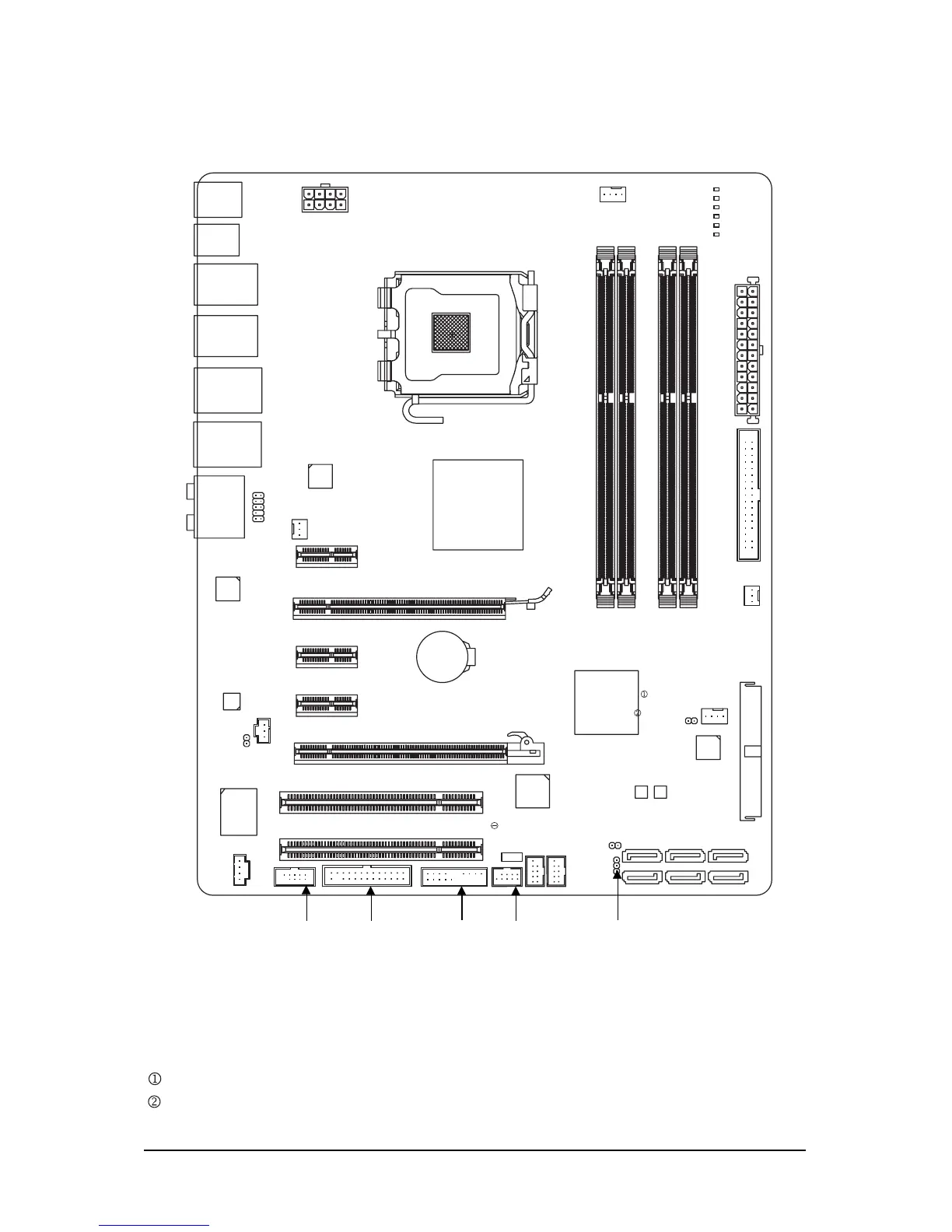

GA-EP45-DS3R/DS3 Motherboard Layout
Only for GA-EP45-DS3R.
Only for GA-EP45-DS3.
(Note) This feature is optional due to different regional policy.
KB_MS
CPU_FAN
LGA775
ATX
GA-EP45-DS3R/DS3
F_AUDIO
ATX_12V_2X4
Intel
®
P45
PCIEX1_1
SYS_FAN2
F1_1394F_PANEL PWR_LED
F_USB2
IDE
F_USB1
CD_IN
FDD
PCIEX8_1
CODEC
TSB43AB23
PCI1
PCI2
BAT
IT8718
Intel
®
ICH10R
Intel
®
ICH10
CLR_CMOS
CI
DDR2_1
DDR2_2
DDR2_3
DDR2_4
SPDIF_I
SATA2_3
RTL8111C
SATA2_2
SATA2_1
SATA2_0
PHASE LED
USB_LAN2
AUDIO
R_SPDIF
USB_1394_2
USB_1394_1
USB_LAN1
PWR_FAN
JMicron 368
M_BIOS
B_BIOS
SATA2_5
SATA2_4
LPTCOMA
TPM IC
(Note)
SPDIF_O
PCIEX16_1
PCIEX1_2
PCIEX1_3
RTL8111C
SYS_FAN1
