` Miscellaneous Settings

& PCIeSlotConguration

Allows you to set the operation mode of the PCI Express slots to Gen 1 or Gen 2. Actual operation mode is

subject to the hardware specication of each slot. Auto lets the BIOS automatically congure this setting.

(Default: Auto)

& 3DMark01 Boost

Allows you to determine whether to enhance some legacy benchmark performance. (Default: Disabled)

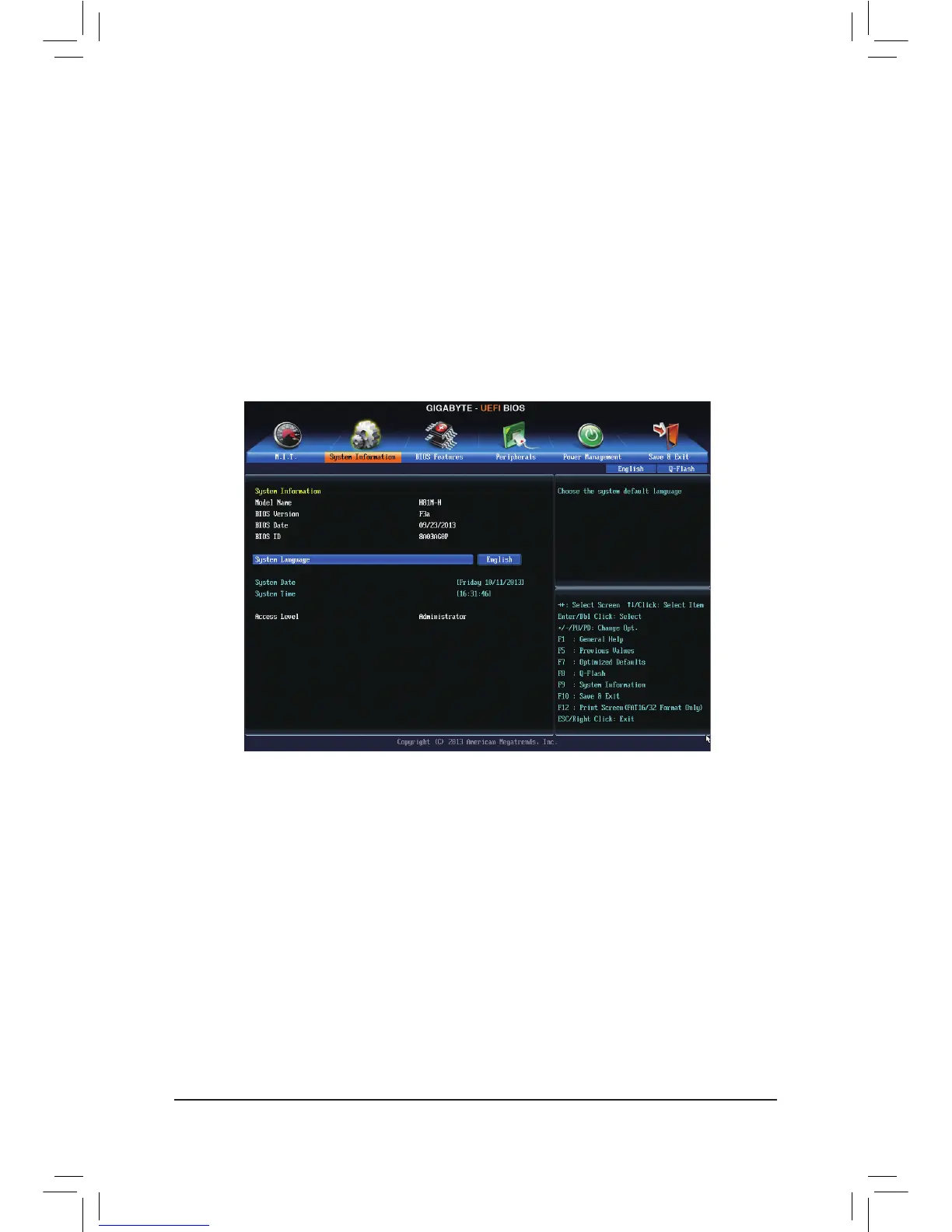

2-3 System Information

This section provides information on your motherboard model and BIOS version. You can also select the default

language used by the BIOS and manually set the system time.

& System Language

Selects the default language used by the BIOS.

& System Date

Sets the system date. The date format is week (read-only), month, date, and year. Use <Enter> to switch

between the Month, Date, and Year elds and use the <Page Up> or <Page Down> key to set the desired

value.

& System Time

Sets the system time. The time format is hour, minute, and second. For example, 1 p.m. is 13:0:0. Use

<Enter> to switch between the Hour, Minute, and Second elds and use the <Page Up> or <Page Down>

key to set the desired value.

& Access Level

Displays the current access level depending on the type of password protection used. (If no password is

set, the default will display as Administrator.) The Administrator level allows you to make changes to all

BIOS settings; the User level only allows you to make changes to certain BIOS settings but not all.

& Fan Speed Percentage

Allows you to control the system fan speed. This item is congurable only when System Fan Speed Control

is set to Manual. Options are: 0.75 PWM value /

C ~ 2.50 PWM value /
