Gigabyte GA-P35-DS3 User Manual

GA-P35-DS3R/DS3/S3 Motherboard - 22 -
English
1-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable
has been securely attached to the connector on the motherboard.
2
31
18
7
5
14
22 11
6
4
13
16
12
17

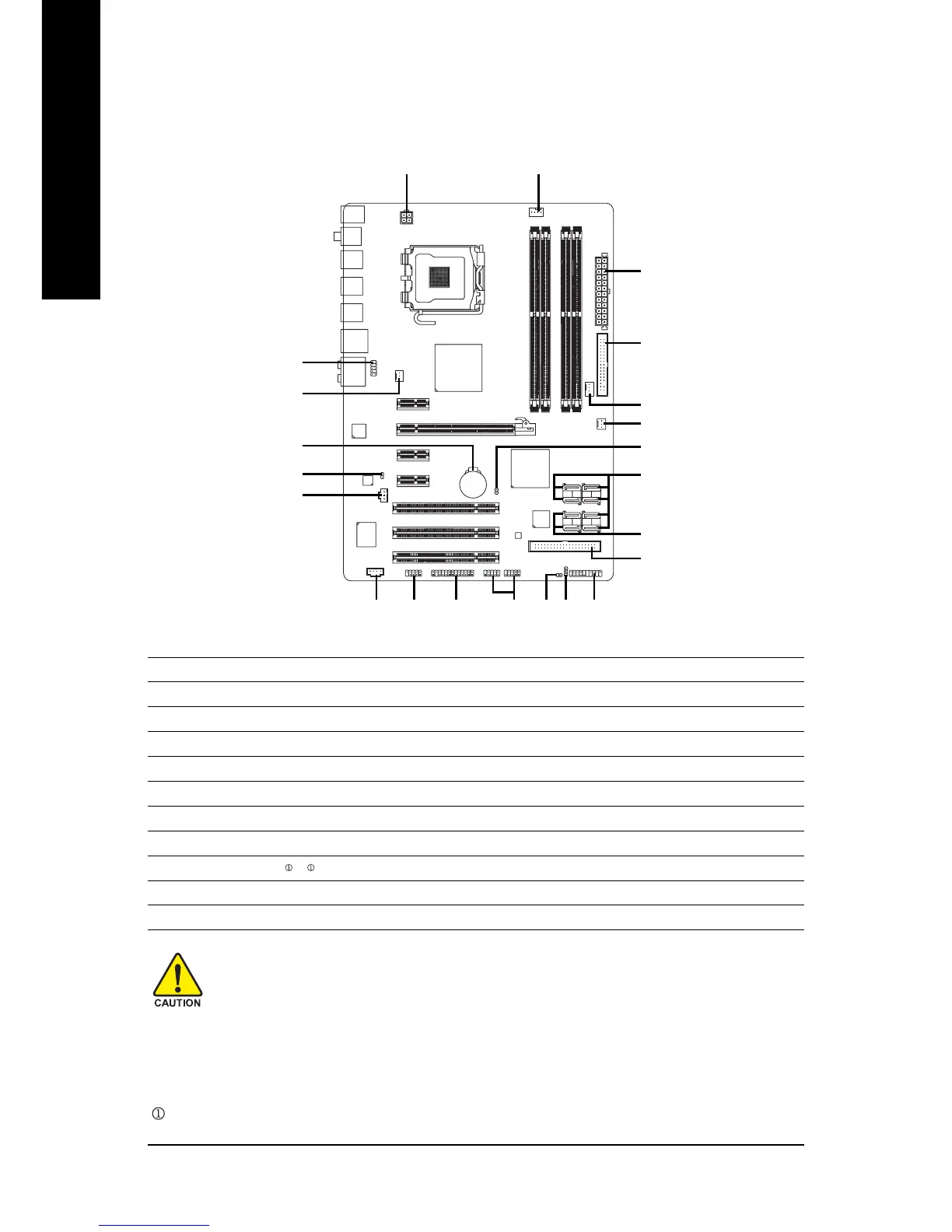

1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1
5) SYS_FAN2
6) PWR_FAN
7) FDD
8) IDE1
9) SATAII0/1/2 /3 /4/5
10) GSATAII0/1
11) PWR_LED
12) BATTERY
13) F_PANEL
14) F_AUDIO
15) CD_IN
16) SPDIF_I
17) SPDIF_O
18) F_USB1/F_USB2
19) COMA
20) LPT
21) CLR_CMOS
22) CI
201915
21
9
8
10
Only for GA-P35-DS3R.

Gigabyte GA-P35-DS3 Specifications

General

Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Power fan connector	Yes
Number of SATA connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Audio chip	Realtek ALC889A
Audio output channels	7.1 channels
Motherboard form factor	ATX

Weight and Dimensions

Depth	210 mm
Width	305 mm
