Gigabyte GA-P35-DS3 User Manual

- 7 -

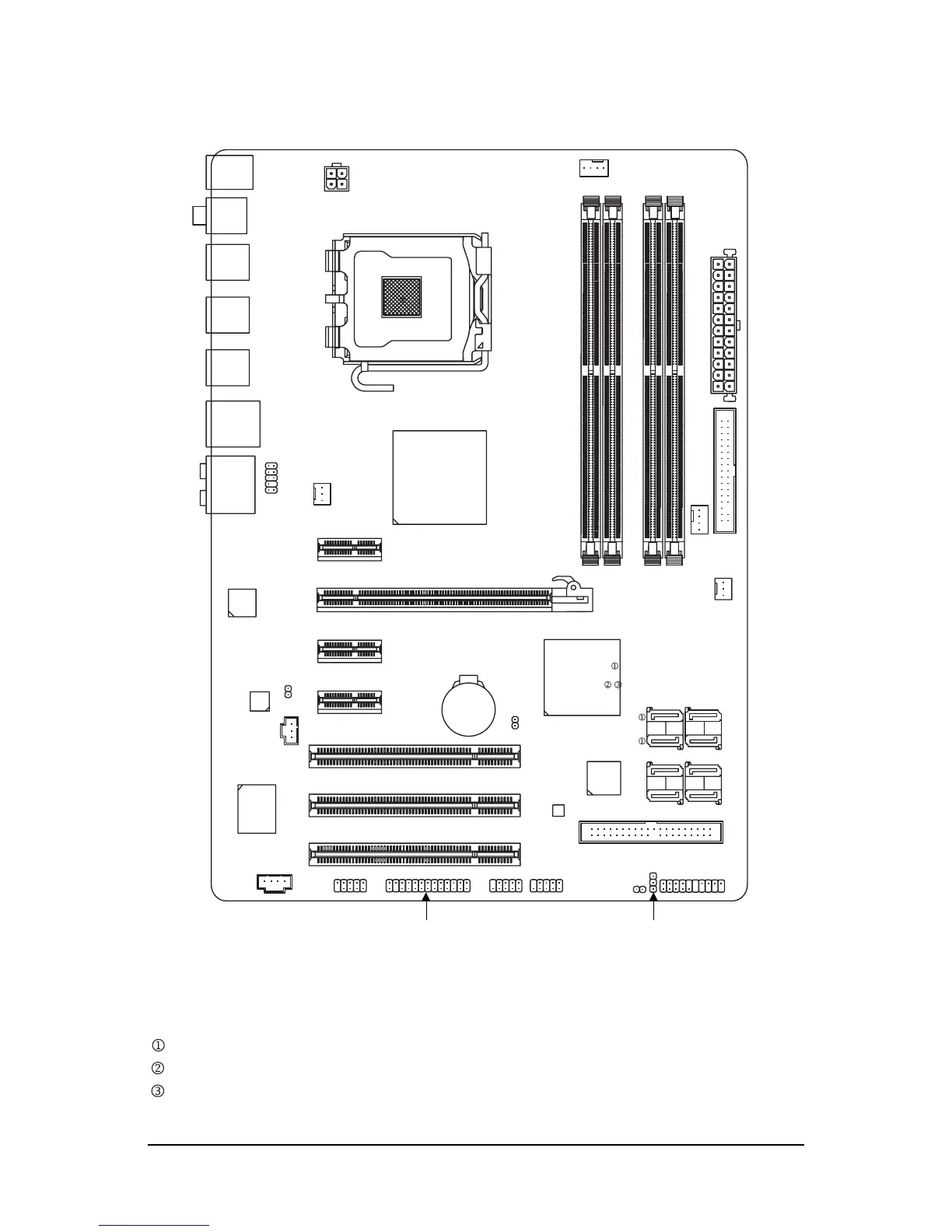

GA-P35-DS3R/DS3/S3 Motherboard Layout
KB_MS
CPU_FAN
LGA775
ATX
GA-P35-DS3R/DS3/S3
USB_LAN
CD_IN
F_AUDIO
AUDIO
BIOS
PCIE_16
PCIE_3
F_USB1
IDE1
PCIE_1
SPDIF_I
CI
DDRII1
DDRII2
DDRII3
DDRII4
BATTERY
F_PANEL
IT8718
SYS_FAN2
SATAII0
ATX_12V
Intel
®
P35
Intel
®
ICH9R
Intel
®
ICH9
PWR_LED
FDD
PCIE_2
SATAII1
SATAII4
SATAII5
GIGABYTE
SATA2
PCI1
PCI2
PCI3
CLR_CMOS
RCA_SPDIF
R_USB1
LPT
CODEC
RTL8111B
PWR_FAN
SYS_FAN1
F_USB2
COMA
R_USB2
SPDIF_O
R_USB3
GSATAII0
GSATAII1
SATAII2
SATAII3
Only for GA-P35-DS3R.
Only for GA-P35-DS3.
Only for GA-P35-S3.
"*" Only the GA-P35-DS3R/DS3 adopt All-Solid Capacitor design.

Gigabyte GA-P35-DS3 Specifications

General

Number of memory slots	4
Maximum internal memory	8 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Power fan connector	Yes
Number of SATA connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Parallel ports quantity	1
Audio chip	Realtek ALC889A
Audio output channels	7.1 channels
Motherboard form factor	ATX

Weight and Dimensions

Depth	210 mm
Width	305 mm
